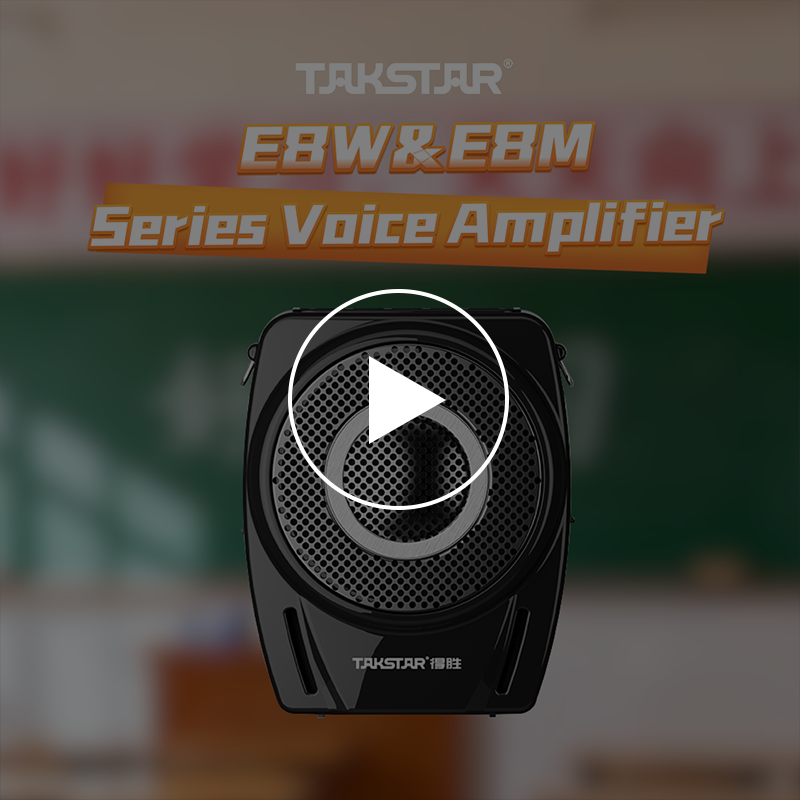

E8M (New Edition) Wired Amplifier

  • Bodypack
  • Teaching
  • Tour guide
  • Propaganda
  • Bluetooth
  • Outdoor Activities
  • Wired

• High-power portable amplifier, suitable for teaching, tour guide, training and sales.

• Rare-earth speaker with 18W high power, excellent audio quality and loud output.

• Supports wireless playback, USB playback and TF card playback of multimedia files.

• High-definition screen with intuitive device status overview.

• Responsive silicone buttons, comfortable tactile feedback.

• Built-in large-capacity lithium-ion battery lasts around 12hrs operation.

• Special structure design makes it dust-proof, thus more durable and stable to use.

• Novel and fashionable design that follows ergonomic principles.

Product Detail

Voice Amplifier:
• Frequency Response: 80Hz-12kHz
• Peak Power: 18W
• Speaker Impedance: 4Ω
• Supported Media: TF card, USB drive up to 64G
• Media Format: MP3, WAV
• Battery Type: Li-ion
• Battery Capacity: 3.7V/4000mAh
• Charging Specification: USB 5V/1000mA
• Charging Time: approx. 4 hours
• Playtime: approx. 12 hours
• Dimensions: 125×105×55mm
• Weight: about 340g

Transmitter (Headset Mic):
• Capsule: back electret
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16kHz
• Sensitivity: -48.5±3dB (0dB=1V/Pa/m at 1kHz)
Note: The above data are measured by Takstar laboratory which has the final interpretation right!
• Teaching, tour guide, training, sales, etc.
• Voice Amplifier1 PCS
• Wired Headset Microphone1 PCS
• Strap1 PCS
• Charging Cable1 PCS
• User Manual1 PCS

  • User manual

    E8M (New Edition) Wired Amplifier User Manual2023-08-09 10:54:14Download
