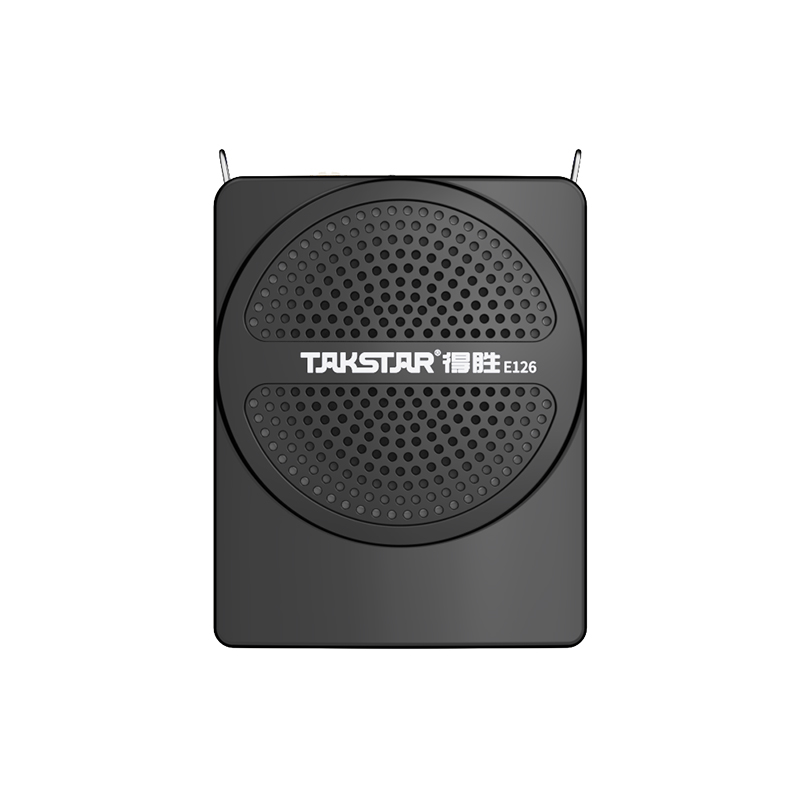

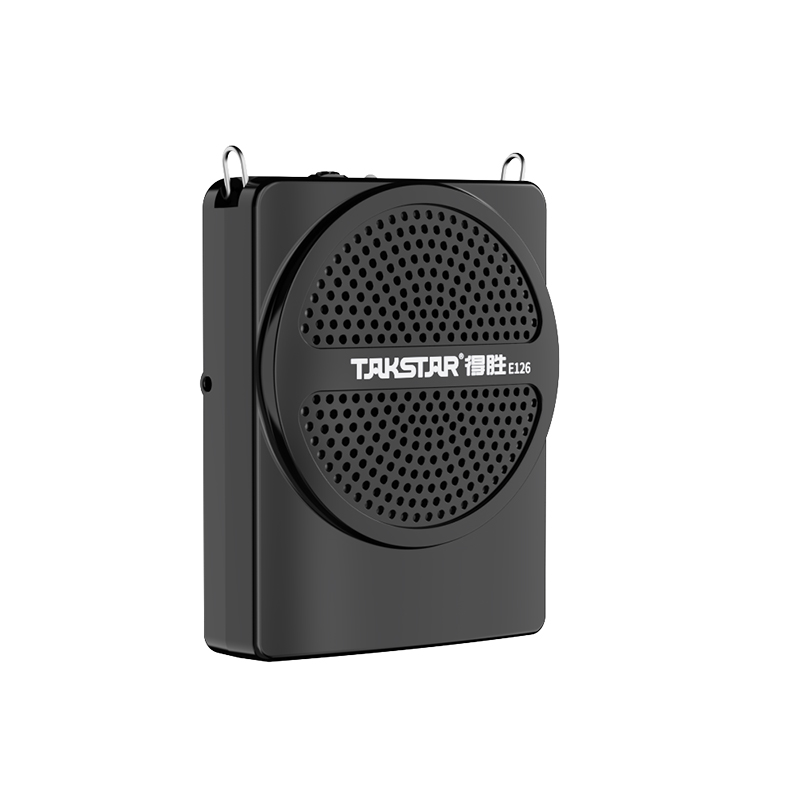

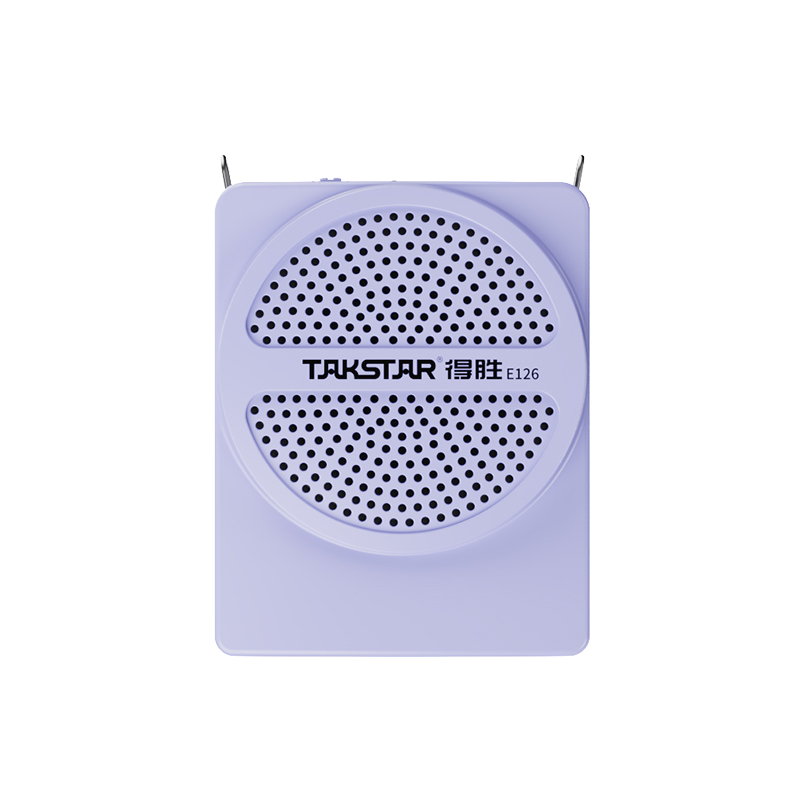

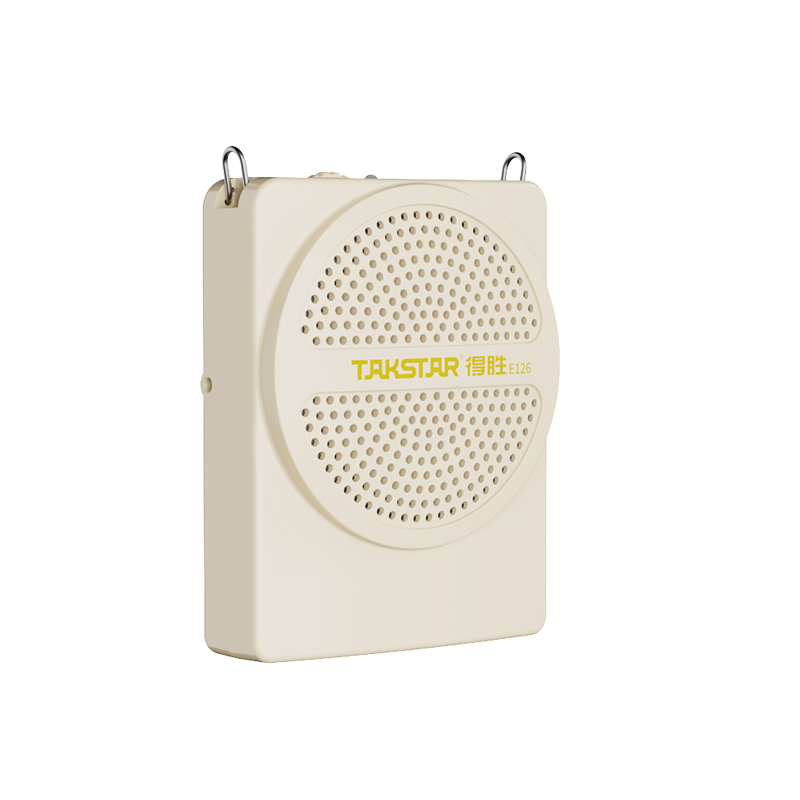

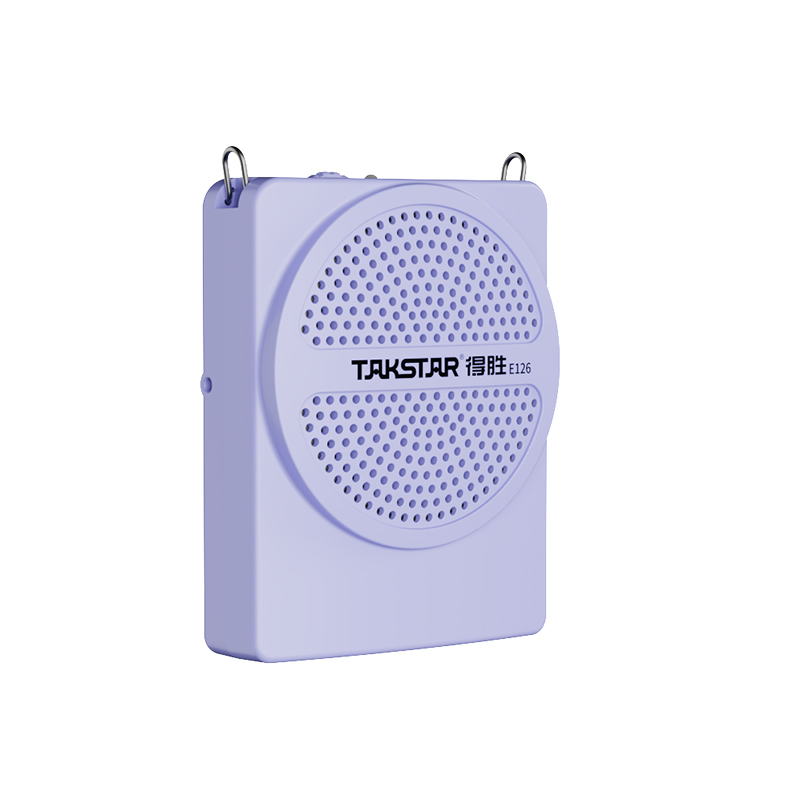

E126 (GEN2) Voice Amplifier

Built-in battery
Teaching
Tour guide
Wired
AUX

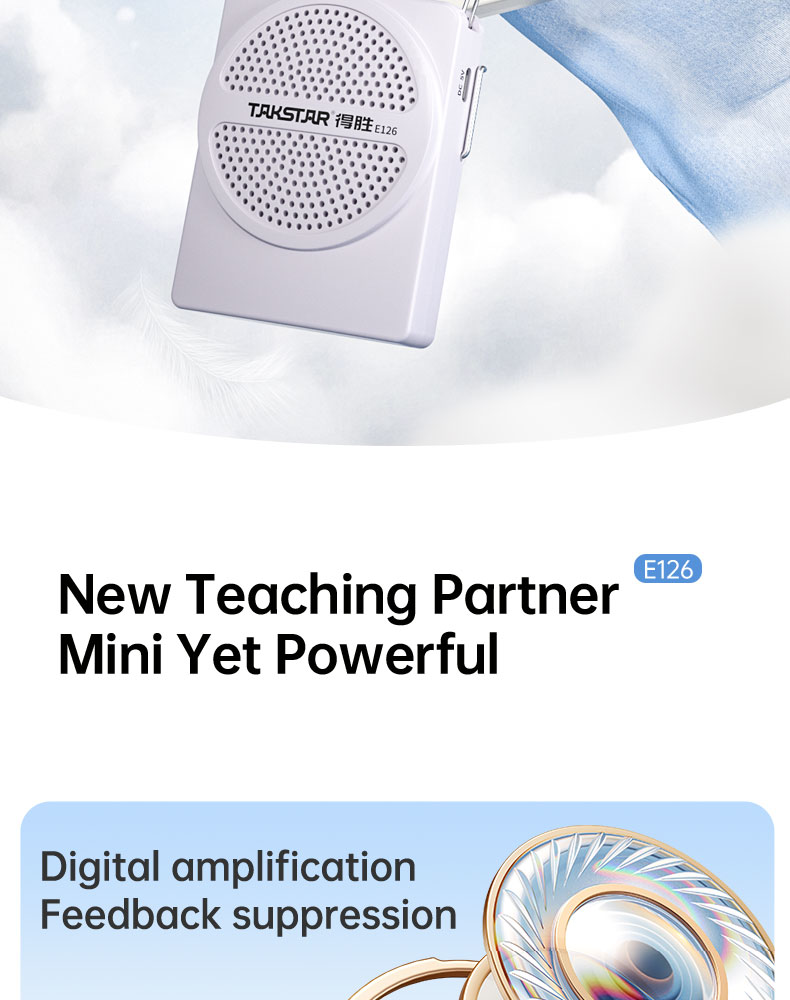

• Compact and lightweight mini portable voice amplifier.

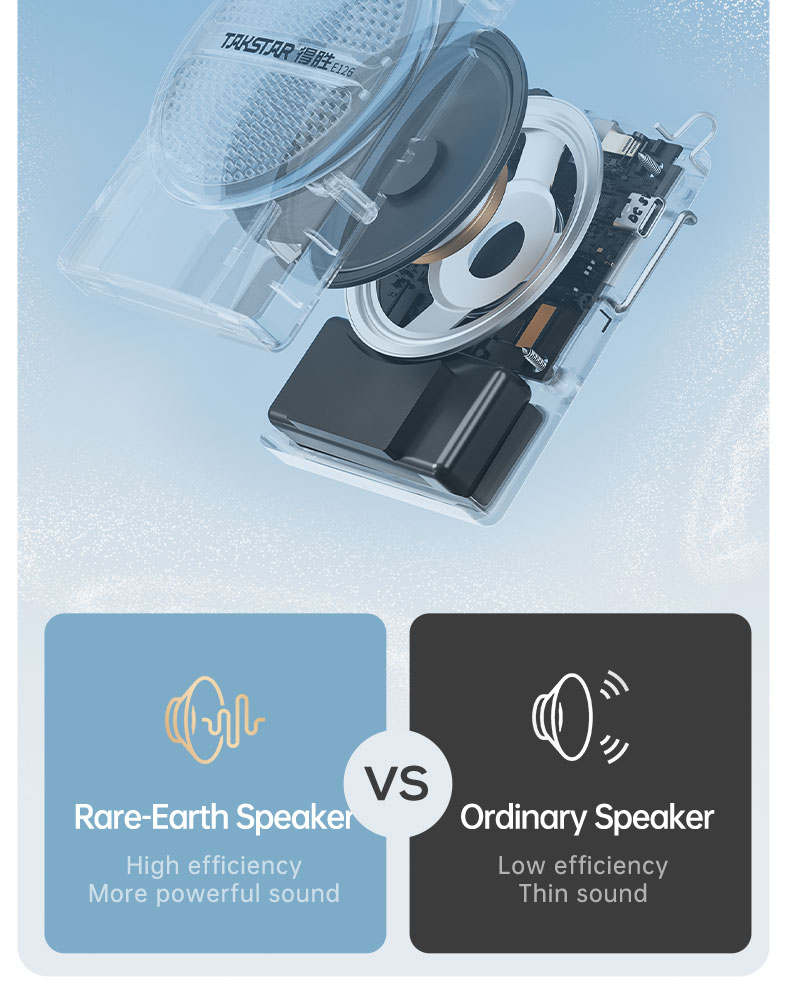

• Rare earth speaker forlightweight design,excellent sound, andpowerful volume.

• Digitalamplification technology for high-power 8W audio output.

• Large capacity li-ion battery for efficient 15-hour use.

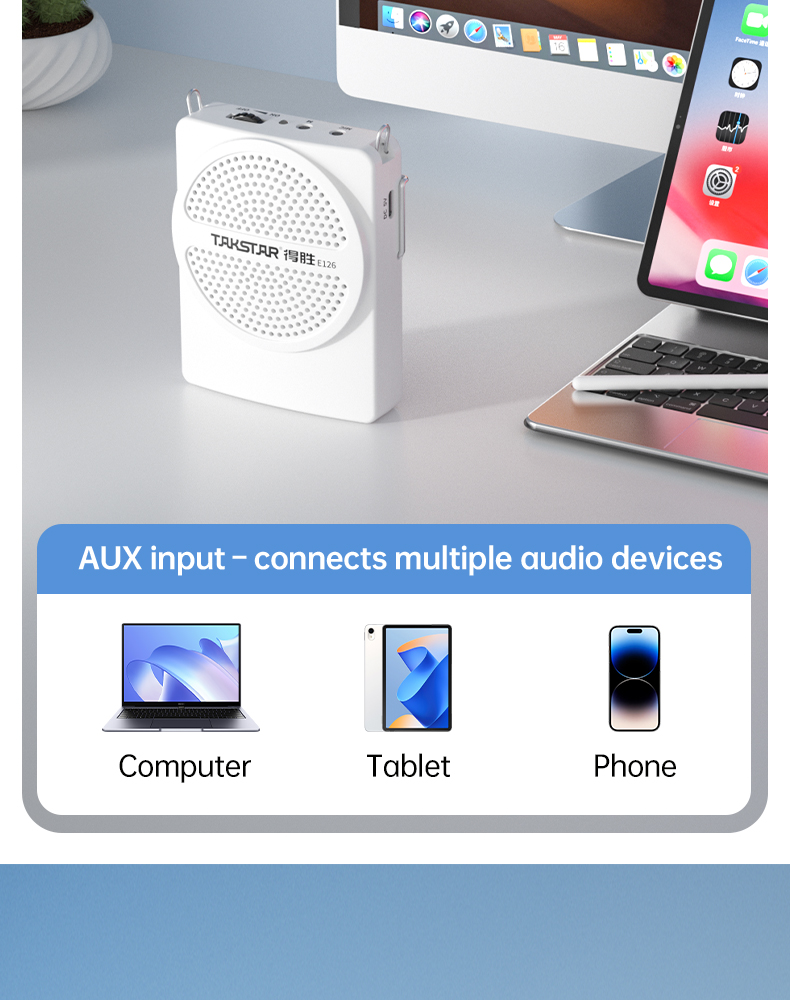

• Supports AUX input to function as a small speaker.

• Indicatorlights for real-time amplifier status updates.

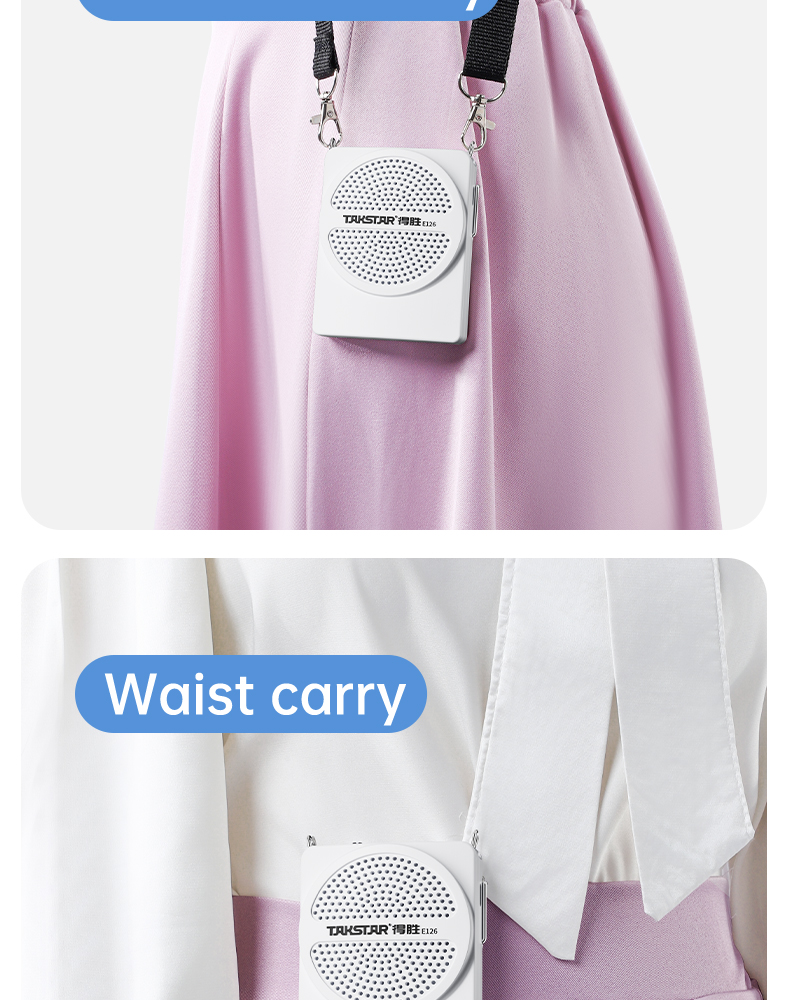

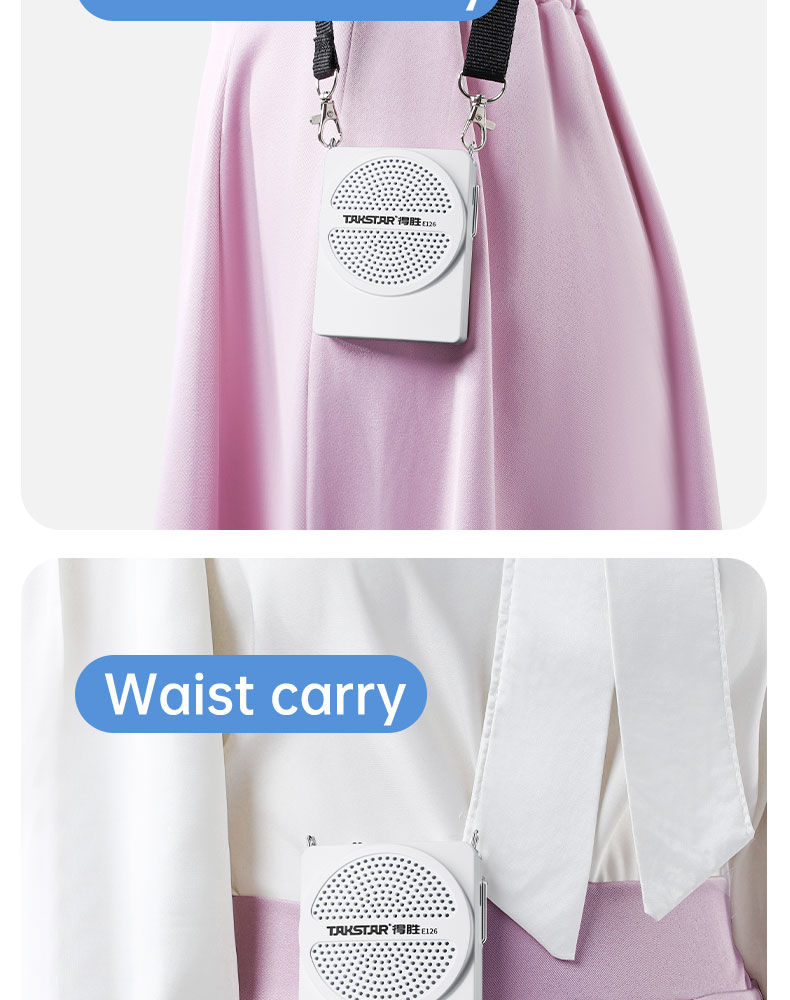

• Versatile wearingoptions with shoulder strap and waist clip.

• Ergonomic design, compact and portable.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial





























• Teaching,tour guide,training, promotion

Voice Amplifier
• Frequency Response: 90Hz-12kHZ
• Peak Power: 8W
• Speakerlmpedance: 4Ω
• THD: THD≤1% 1KHz＠4R,4W
• Operating Voltage: 3.7V-4.2V
• BatteryType: Li-ion battery

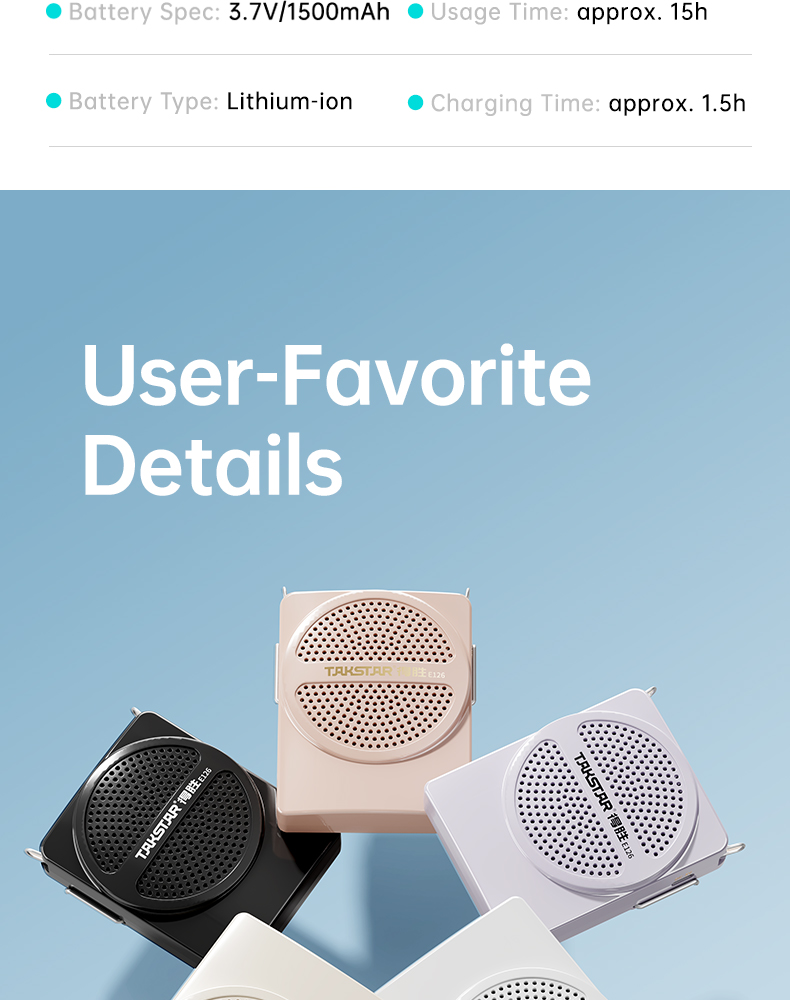

• Battery Capacity: 3.7V/1500mAh

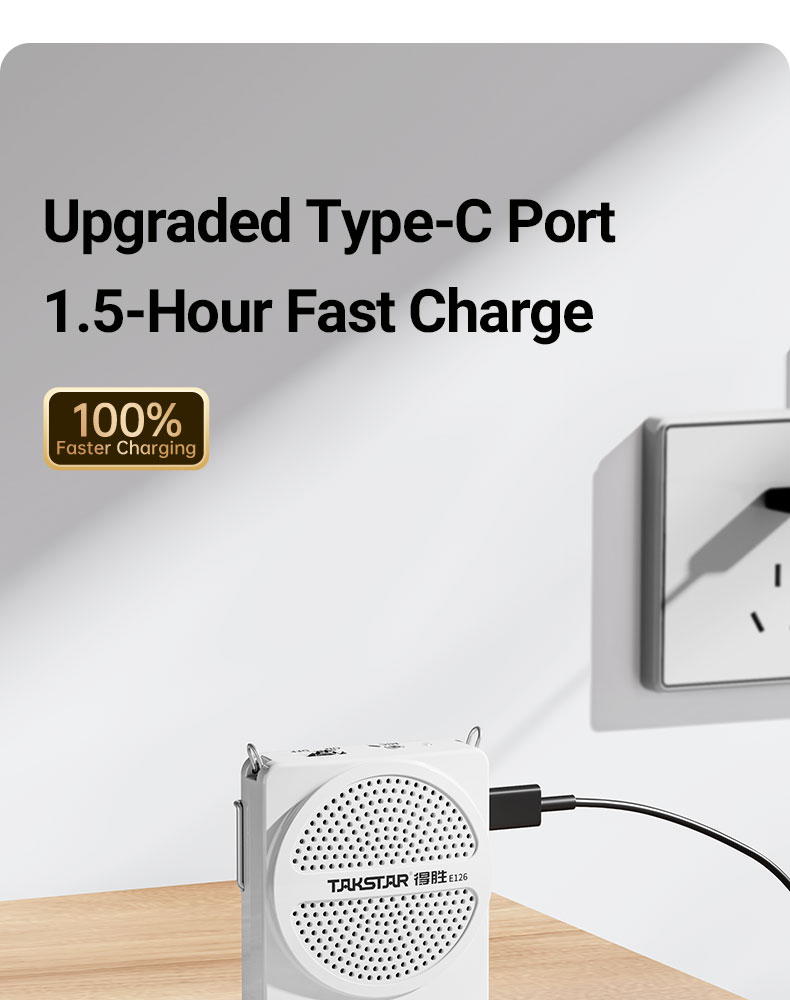

• Charging: DC 5V/1A
• Charging Time: approx. 1.5h
• Operation Time: approx.15h
• Weight: approx.113g

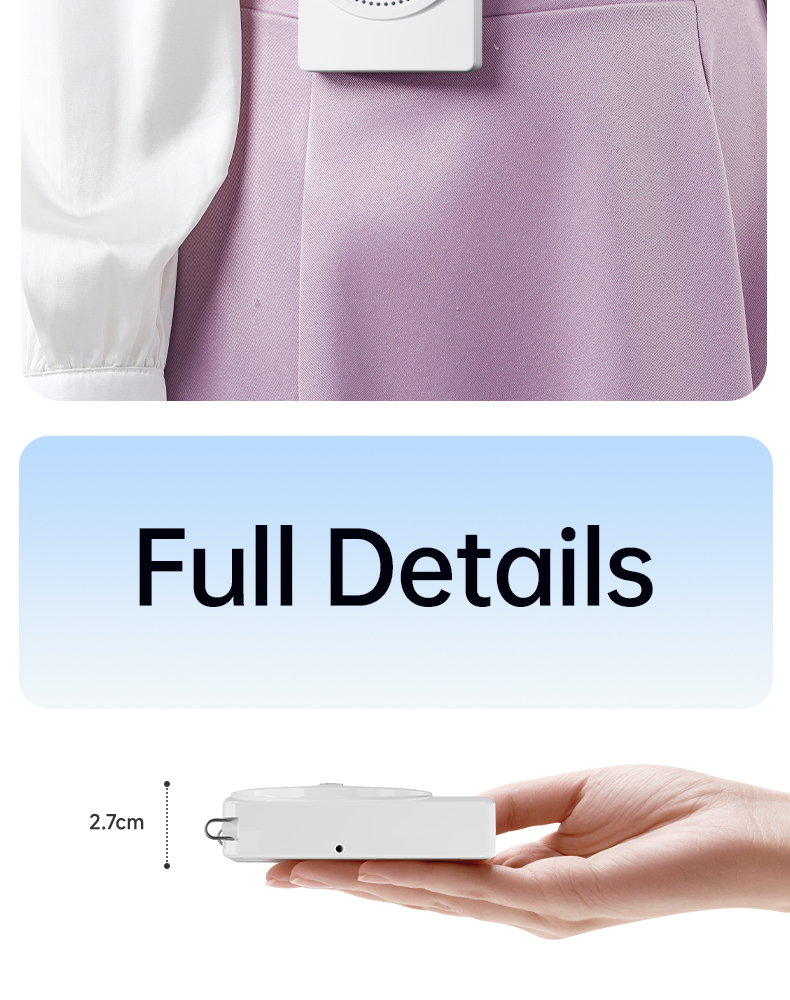

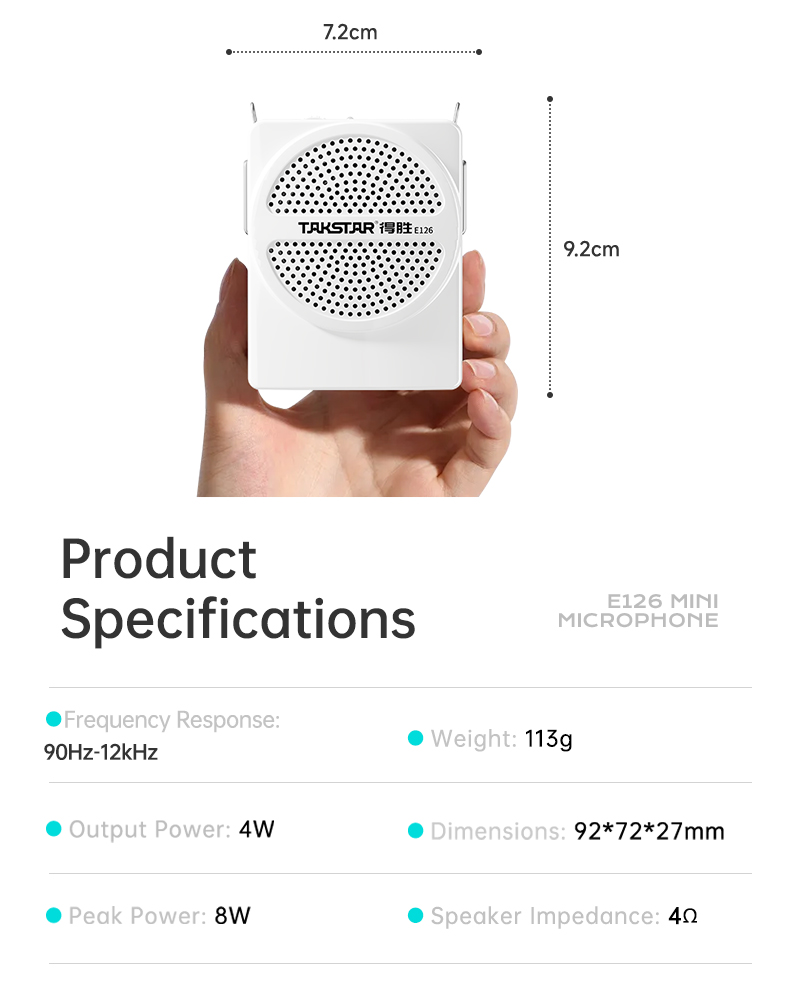

• Dimensions: 92mm*72mm*27mm

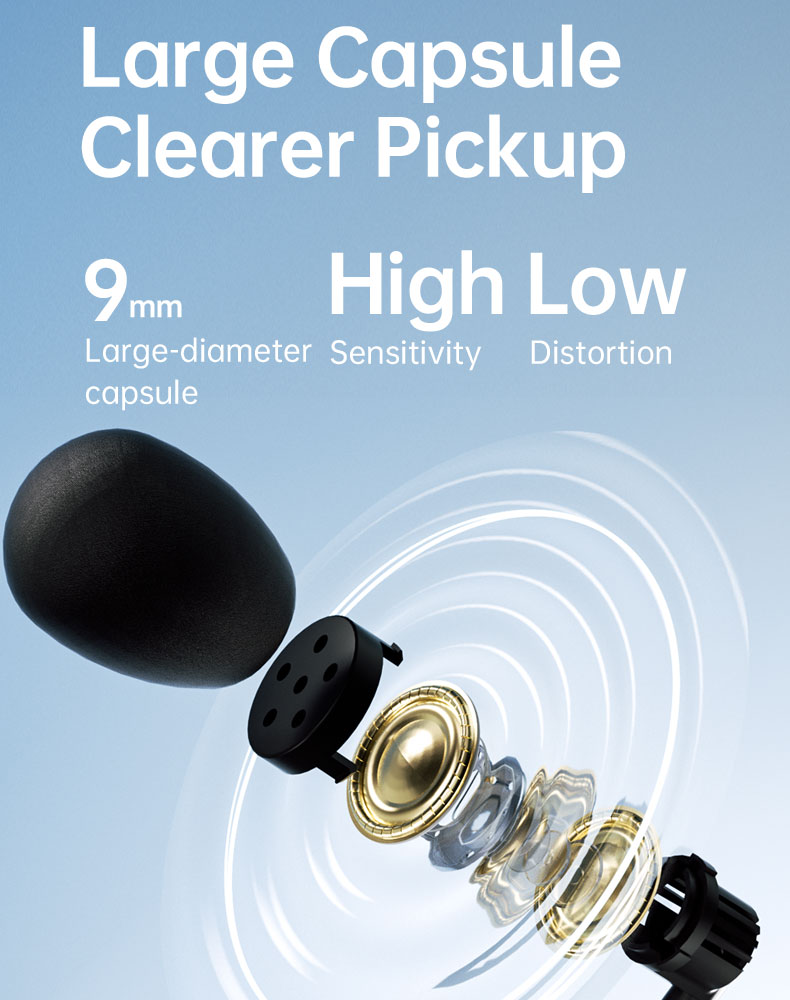

Headset Microphone
• Cartridge: back electret cartridge
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16KHz
• Sensitivity: -50dB±3dB (0dB=1V/Pa, at 1KHz)

• Voice Amplifier	1 PC
• Headset Microphone	1 PC
• Waist strap clip	1 PC
• Should Strap	1 PC
• Type-C charging cable	1 PC
• User manual	1 PC

User manual
E126 (GEN2) Voice Amplifier User Manual2025-09-09 10:00:47Download
