E126W Portable Wired Amplifier--TAKSTAR - Guangdong Takstar Electronic Co., Ltd.

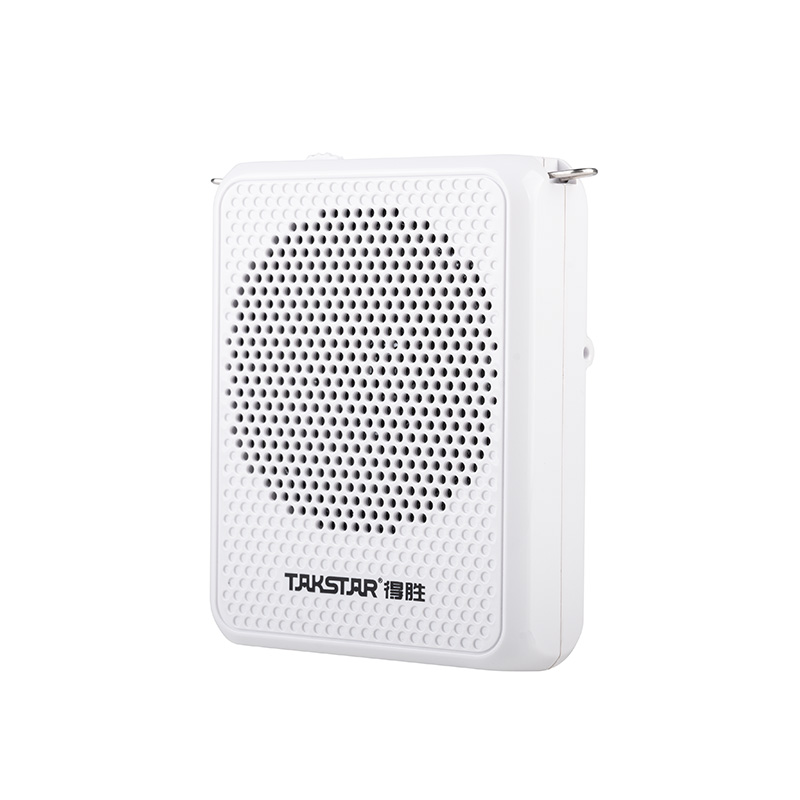

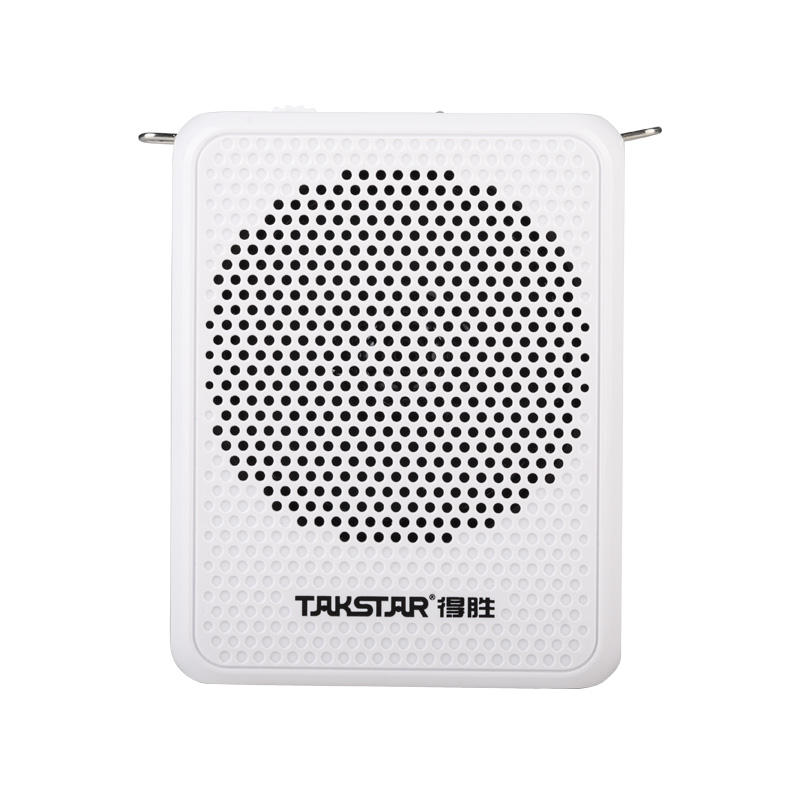

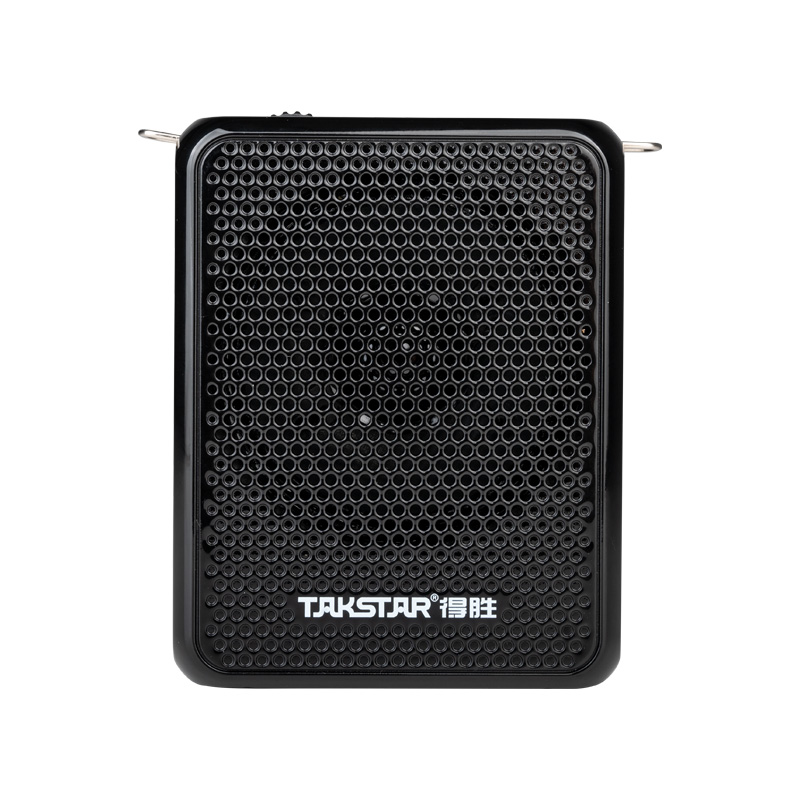

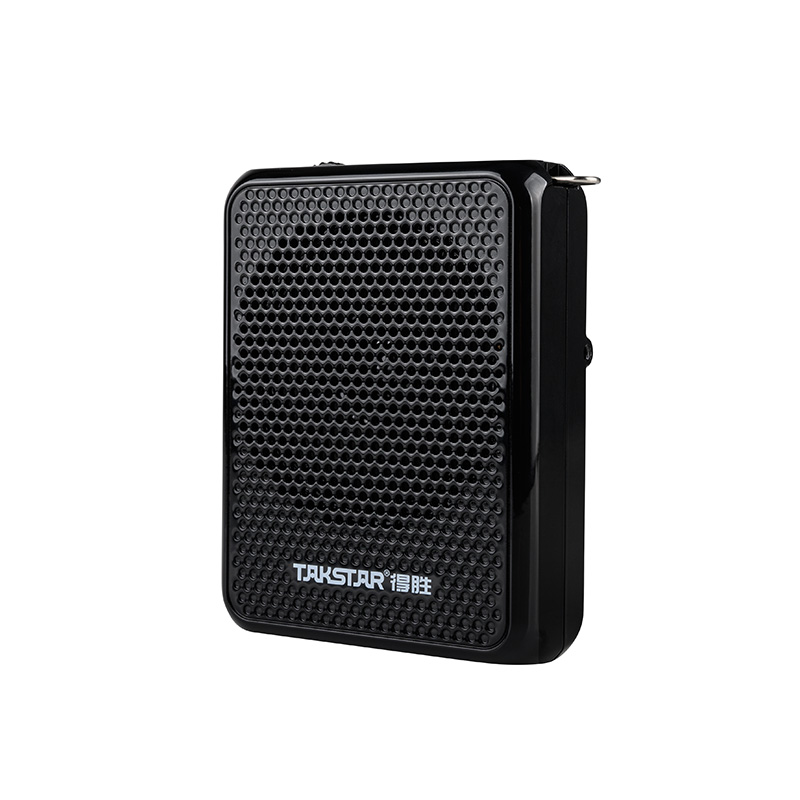

E126W Portable Wireless Amplifier

  • Built-in battery
  • Bodypack
  • Teaching
  • Tour guide
  • Propaganda
  • Outdoor Activities
  • Audiobook
  • AUX
  • Wireless

• Compact, lightweight, wireless voice amplifier.

• UHF transmission, effective up to 40m in open area.

• 8W high-power digital audio amplification, with wireless headset mic.

• Built-in Li-ion battery lasts up to 8h, supports Type-C quick charge.

• Wireless audio playback for untethered music enjoyment.

• LED indicators give you a clear idea about device status.

• Wear across shoulder or around waist, use at ease.

• Stylish look and ergonomic design.


Product Detail

Voice Amplifier
• Frequency Response: 80Hz-12kHz
• Peak Power: 8W
• Speaker Impedance: 4Ω
• THD: THD≤1%
• Operating Voltage: 3.5V-4.2V
• Battery Type: Lithium-ion battery
• Battery Capacity: 3.7V/2,000mAh
• Charging Method: DC 5V/800mA
• Charging Time: approx. 2.5h
• Battery Life: approx. 8h
• Net Weight: approx. 142g
• Dimensions: 91mm*41mm*119mm

Headset Micropho
• Cartridge: back electret
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16KHz
• Sensitivity: -51~-54dB
• UHF Frequency: 630MHz-698MHz (segmented)
• UHF Effective Range: approx. 40m, open area
• Battery Type: Lithium-ion battery
• Battery Capacity: 3.7V/400mAh
• Charging Method: DC 5V/150mA
• Charging Time: approx. 2.5h
• Battery Life: approx. 5h
• Net Weight: approx. 39g
Note: The above data is measured by Takstar laboratory, and Takstar has the final interpretation right!
• Voice amplification for teaching, promotion, tour guide, training, sales.

• E126W   Voice Amplifier1PC
• Wireless Headset Microphone1PC
• Belt Clip1PC
• Strap1PC
• Y Splitter Charging Cable (Type-C & Micro USB)1PC
• User Manual1PC

PACKAGING: Color box, (L*W*H)182*137*60mm


  • User manual

    E126W Portable Wireless Amplifier User Manual 2021-11-17 15:44:31Download
