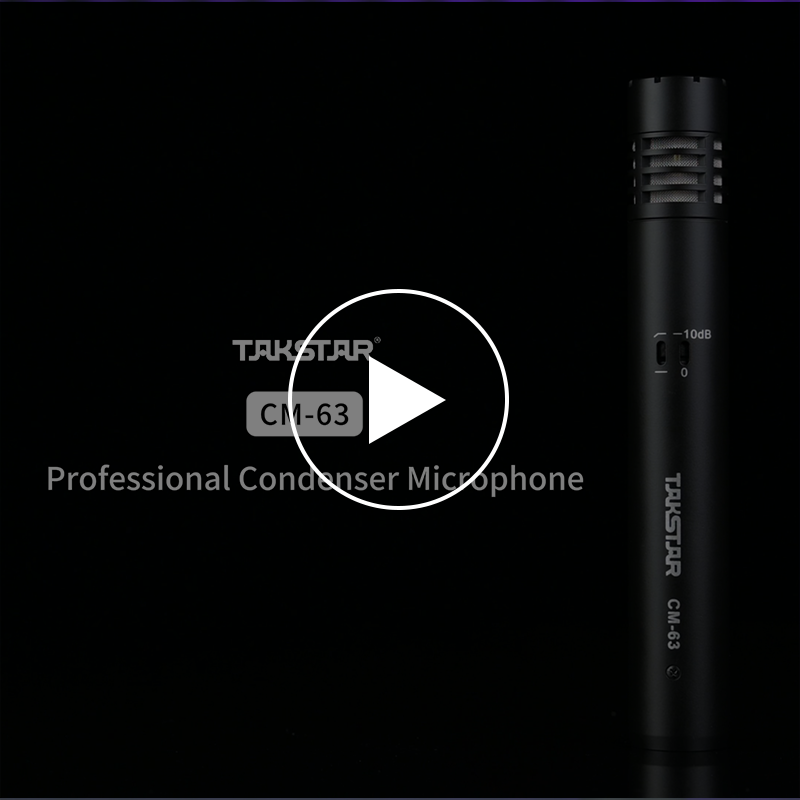

CM-63 Small-diaphragm Microphone

  • Instrument
  • Wired
  • Cardioid
  • Condenser
  • Front Address
  • Recording
  • Innovative anti-huity technology for best performance under stringent climate environment

  • Gold-plated diaphragm capsule assuring excellent transient response, wide frequency response range, high sensitivity, and accurate sound reproduction

  • Built-in low noise FET for low noise and steady performance

  • Optional 10dB attenuation for handling extremely high volume

  • Hi-Fi OTL preamplifier featuring quality linear amplification and low distortion

  • Low output impedance for minimizing power waste under long distance connection

  • Multiple surface treatments guarantee long life durability

Product Detail

  • Specification
  • Application
• Transducer Principle: True Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 30Hz-20kHz
• Sensitivity: -35dB±2dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 200Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Equivalent Noise Level: ≤20dB A (IEC 581-5)
• Max. Input SPL: 130dB (THD ≤1.0% at 1kHz)
        140dB (with 10dB pad)
• Bass Filter: 10dB/octave at 100Hz
• Power Requirements: 48V DC Phantom Power
• Body Dimensions: Ø22 x 145mm
• Net Weight: 165g
Recording, broadcasting, on-stage performance
  • Specification
  • Application
• Transducer Principle: True Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 30Hz-20kHz
• Sensitivity: -35dB±2dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 200Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Equivalent Noise Level: ≤20dB A (IEC 581-5)
• Max. Input SPL: 130dB (THD ≤1.0% at 1kHz)
        140dB (with 10dB pad)
• Bass Filter: 10dB/octave at 100Hz
• Power Requirements: 48V DC Phantom Power
• Body Dimensions: Ø22 x 145mm
• Net Weight: 165g
Recording, broadcasting, on-stage performance
