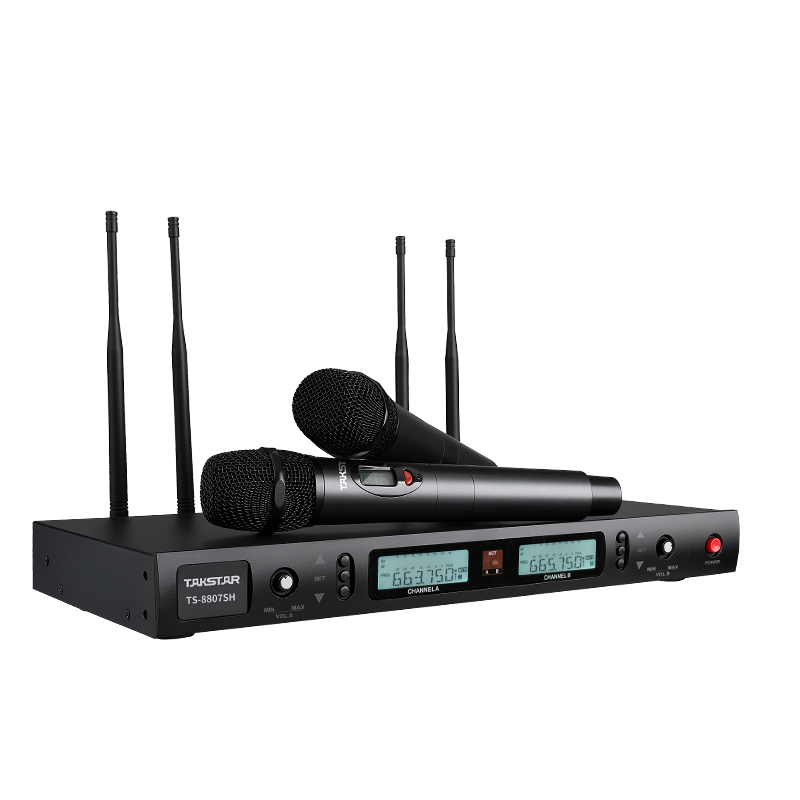

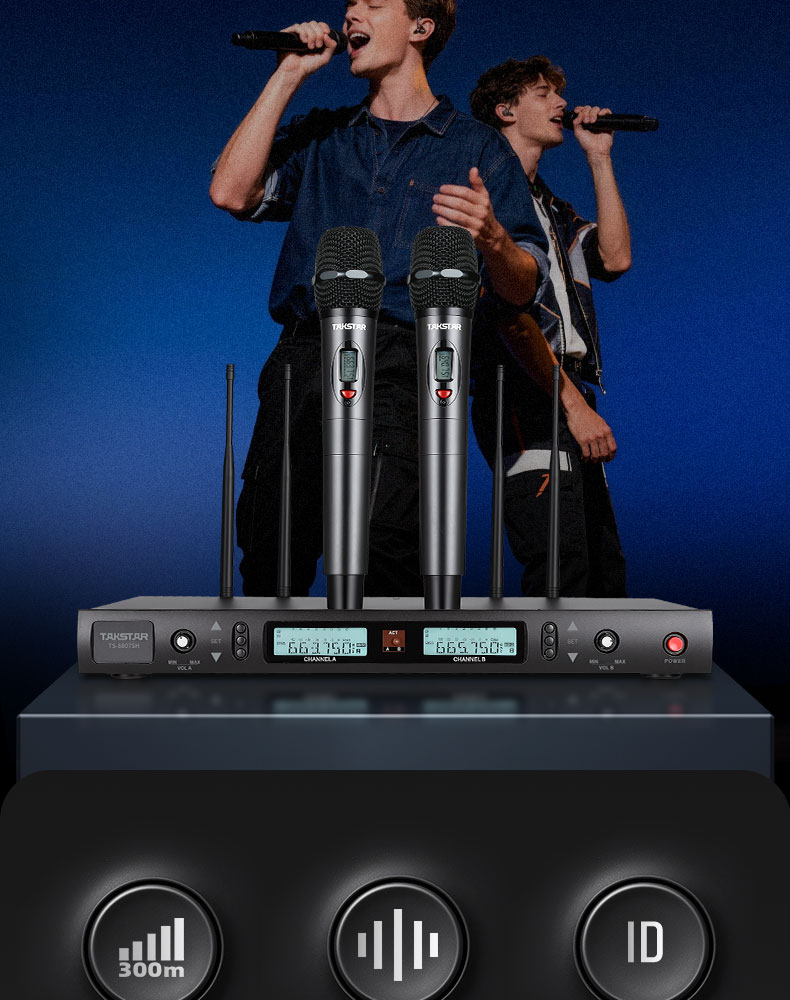

TS-8807SH UHF Wireless Microphone
- UHF
- Handheld
- Conference & Speech
- Wireless
• Equipped with channel ID code recognition to effectively prevent external or inter-channel crosstalk noise.

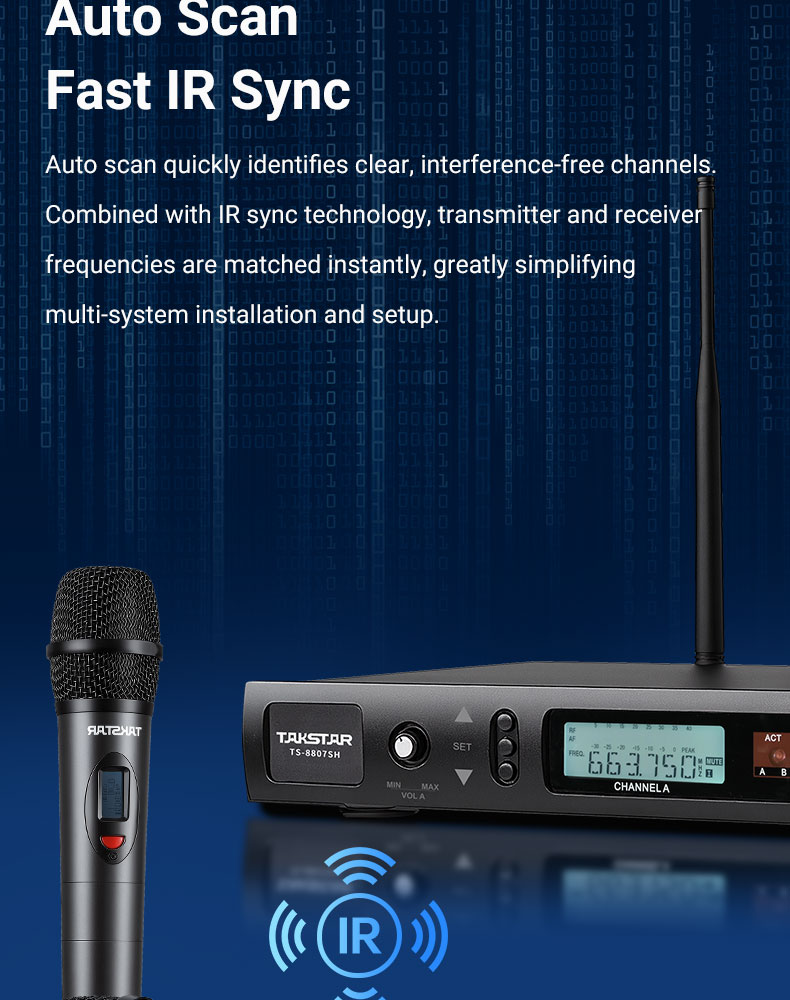

• The receiver features one-touch auto-scanning to quickly and accurately identify interference-free channels, significantly simplifying installation and debugging.
• Infrared sync pairing enables convenient and fast operation. Simply press the button to synchronize transmitter and receiver channels instantly.

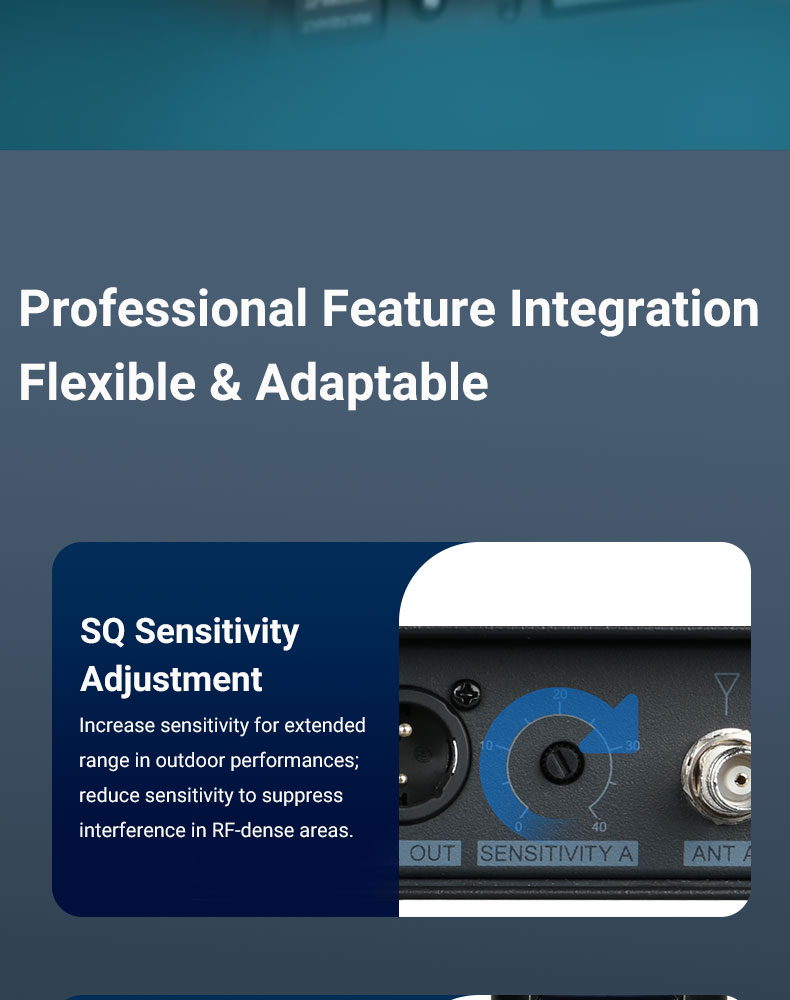

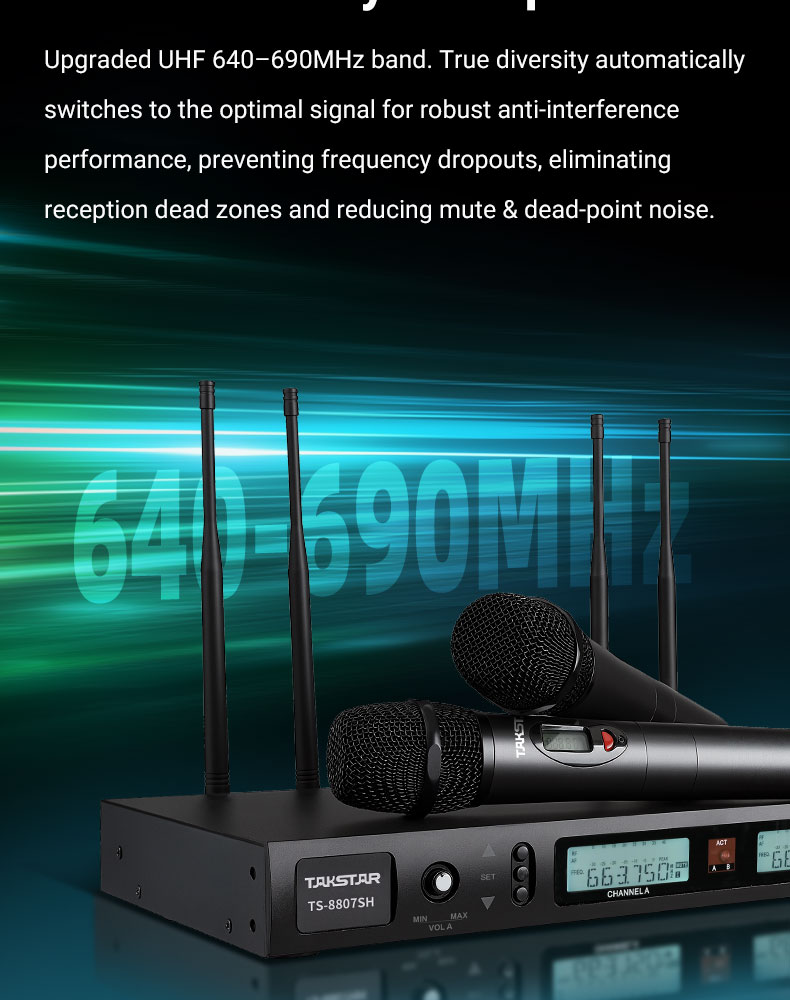

• True diversity auto-reception with SQ for enhanced anti-interference. Users can modify sensitivity based on environment to improve noise immunity or operational range.

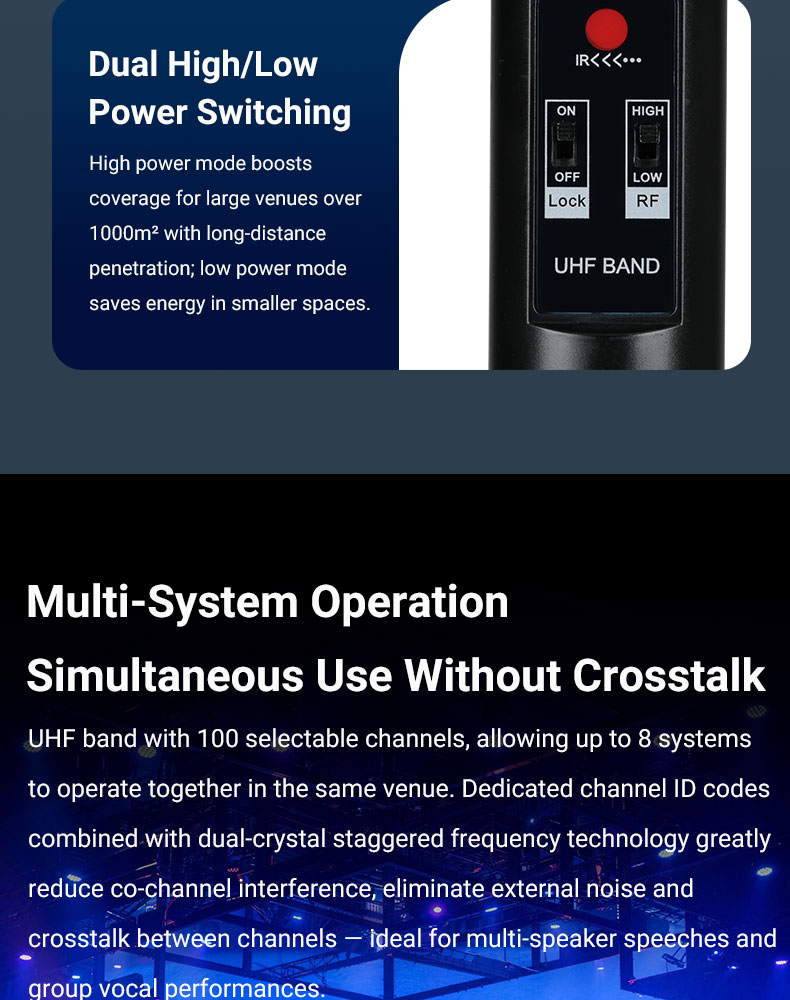

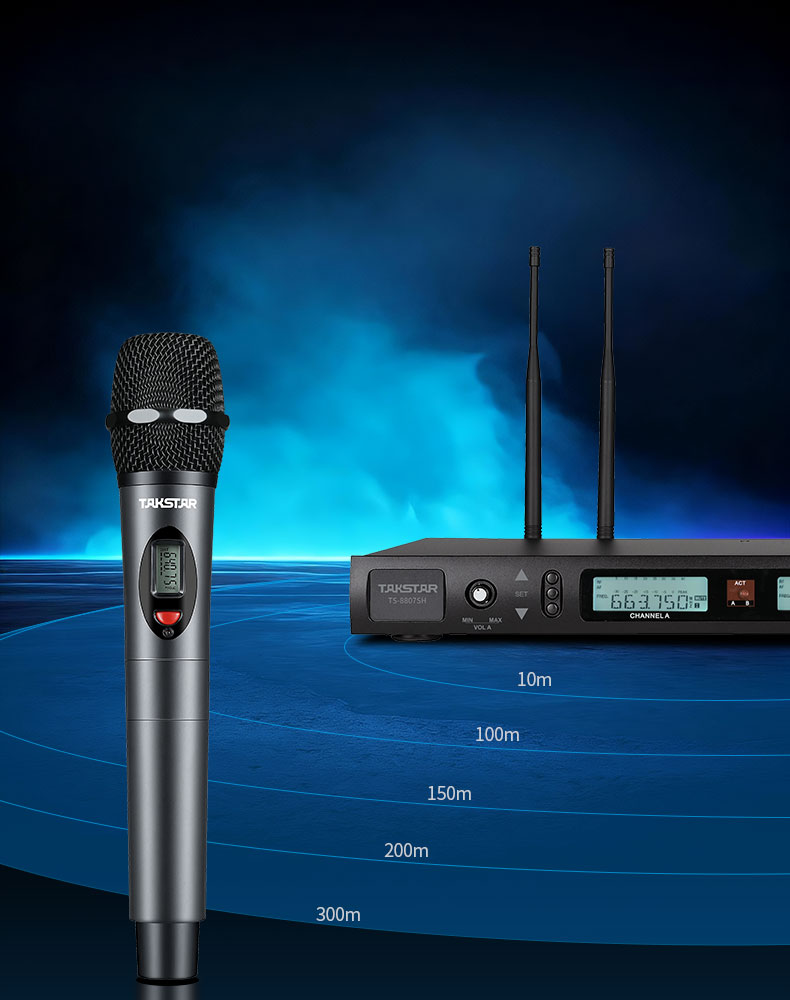

• Dual-power mode switching: High-power transmission for large venues (e.g., 1,000㎡+), low-power for compact spaces. Effective range up to 300m (high-power mode).

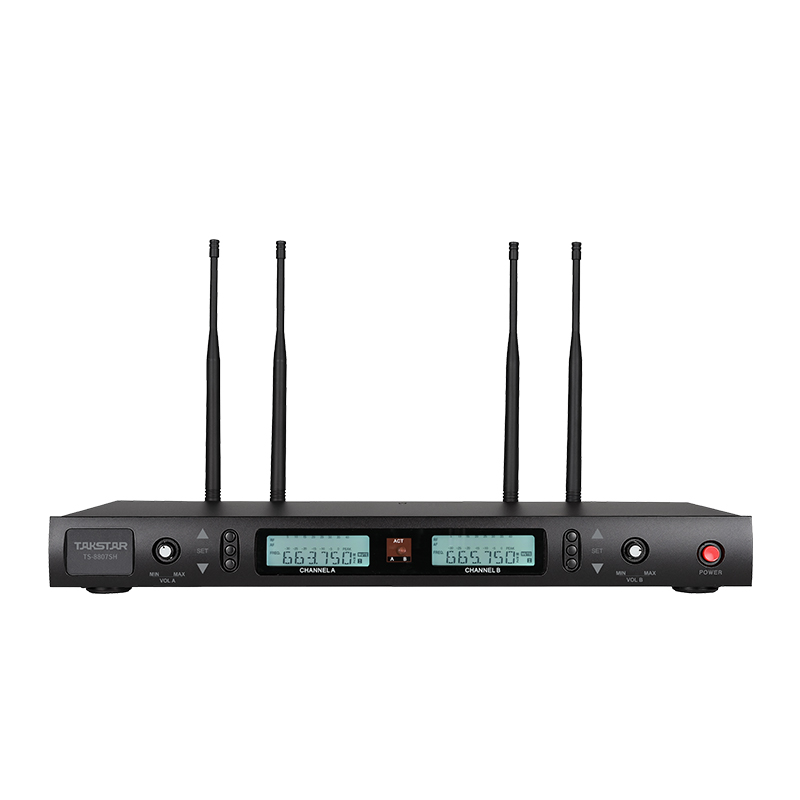

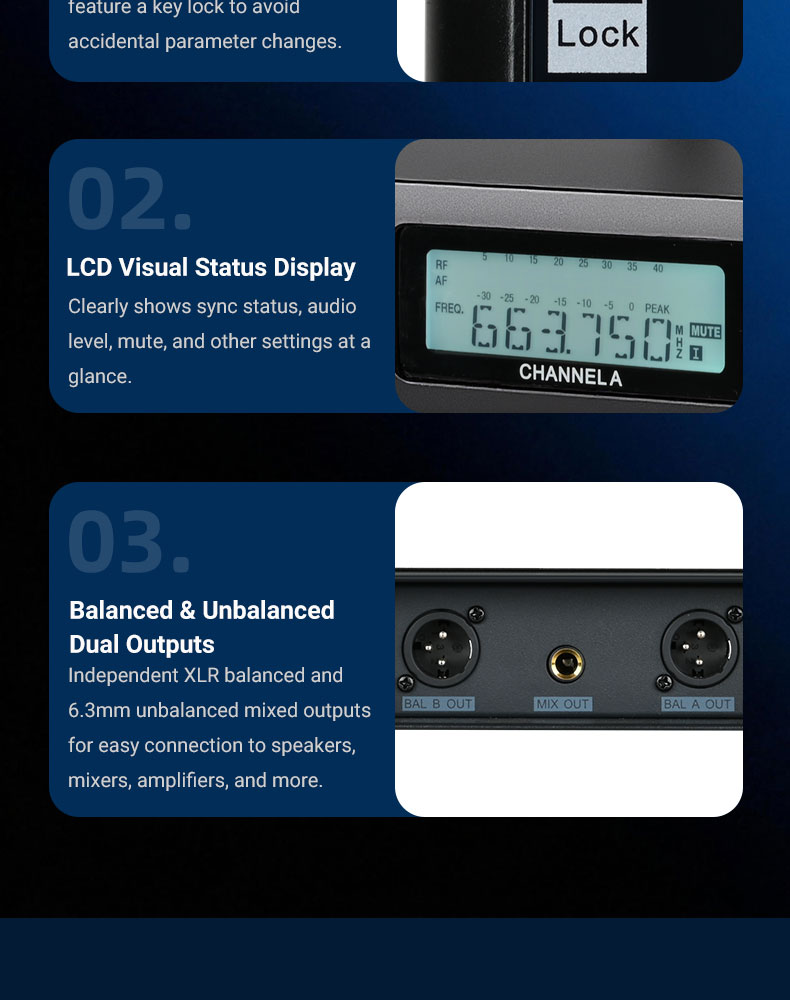

• The receiver screen displays real-time transmitter RF signal, audio status and battery level, all at a glance.

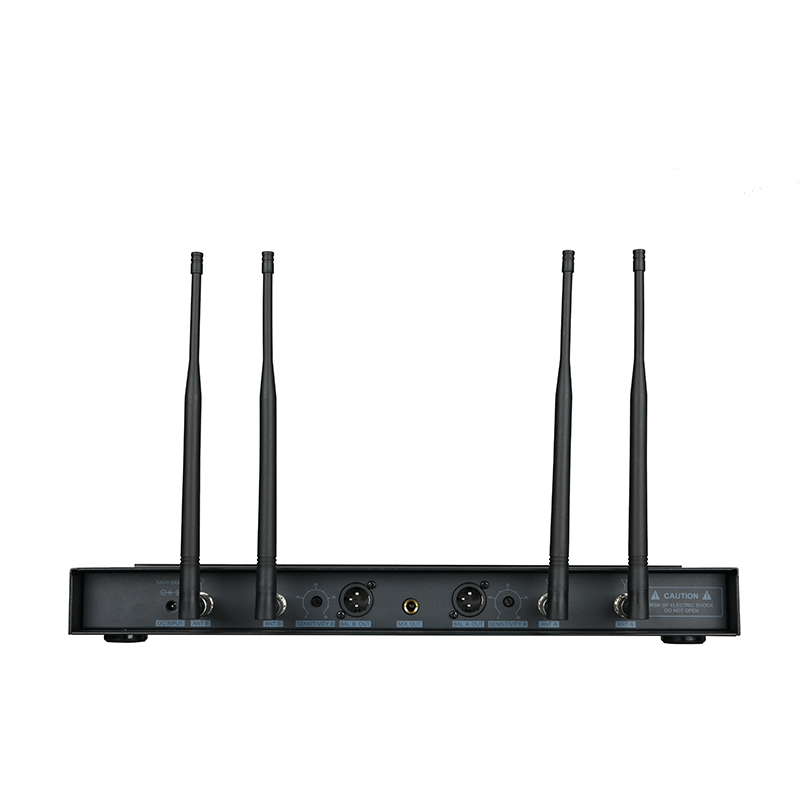

• Features independent balanced (XLR) output and unbalanced (6.35mm) mixed output to facilitate device connection.
• Both transmitter and receiver feature button lock to prevent accidental operation.

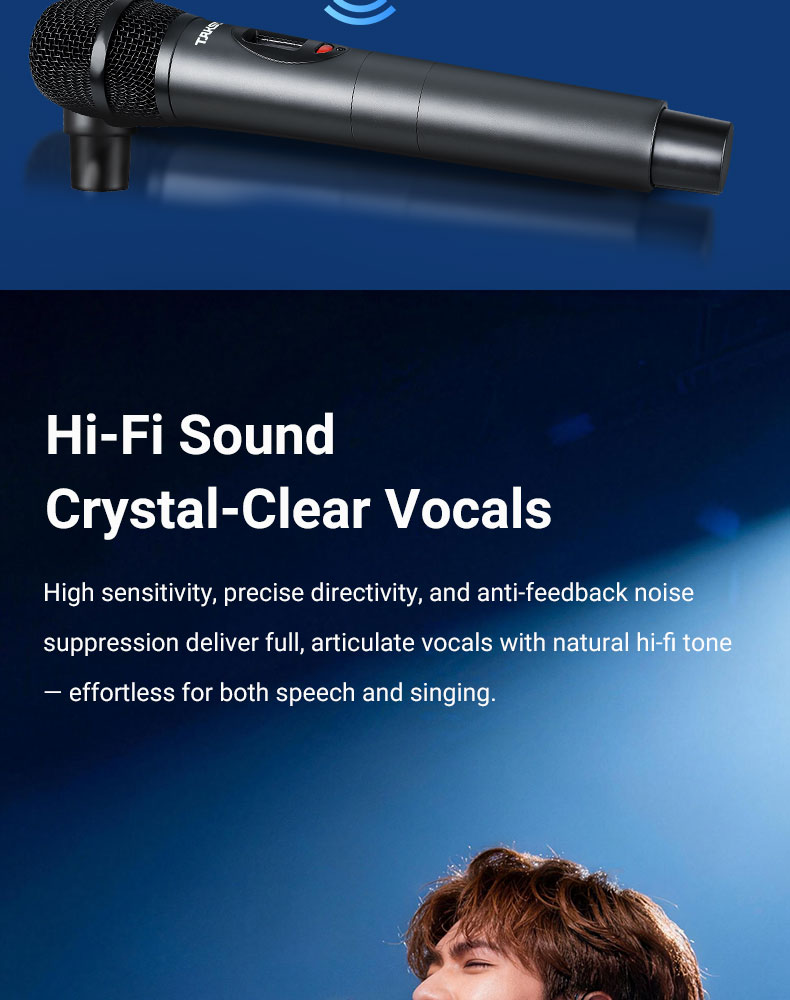

• High pickup sensitivity and exceptional sound quality ensure effortless vocal performance for speech or singing.
• Metal housing with dual LCD screens, packaged in elegant color box.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Conferences, training, teaching, PA systems, wedding celebrations and small-scale evening parties

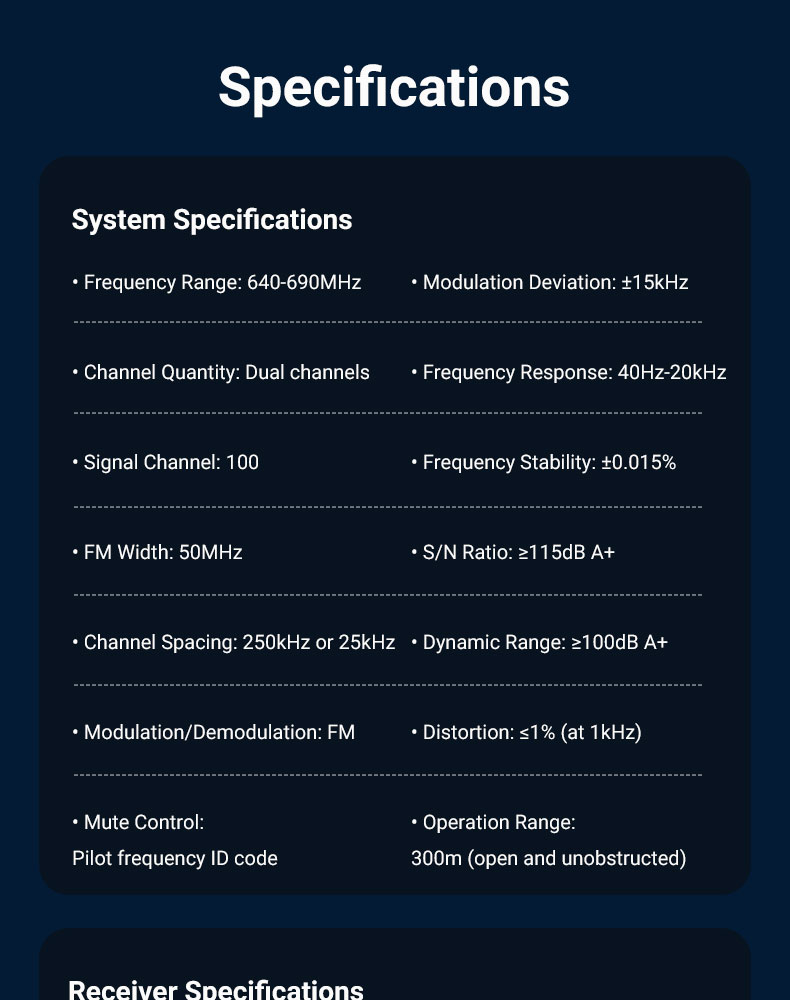

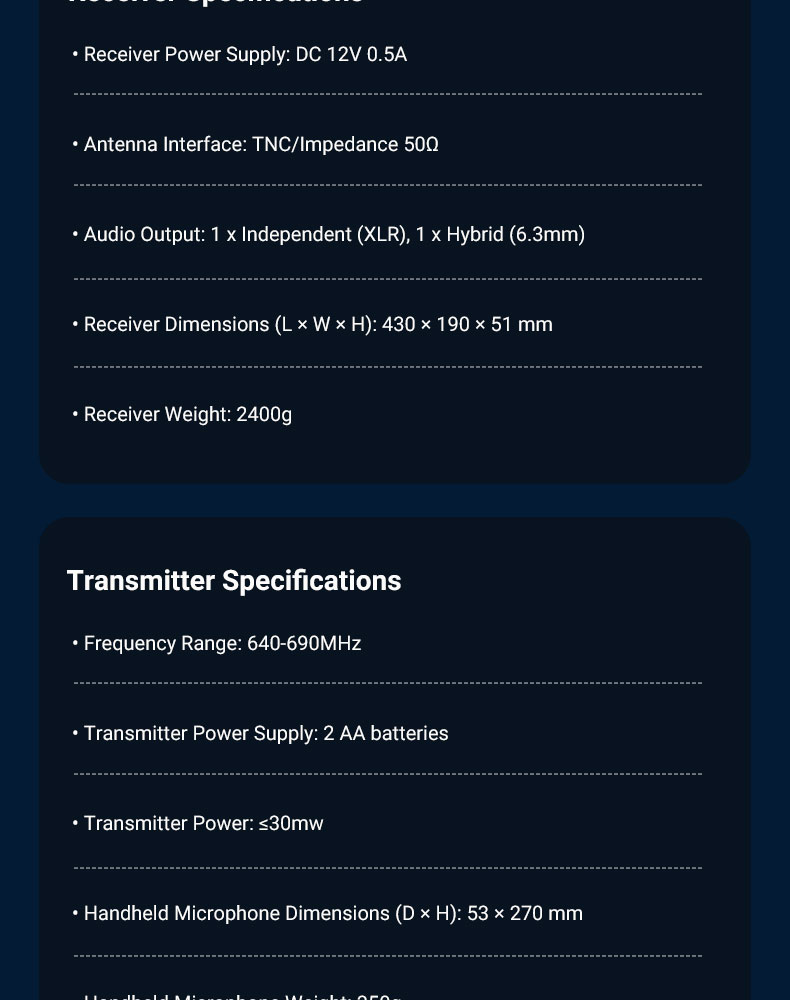

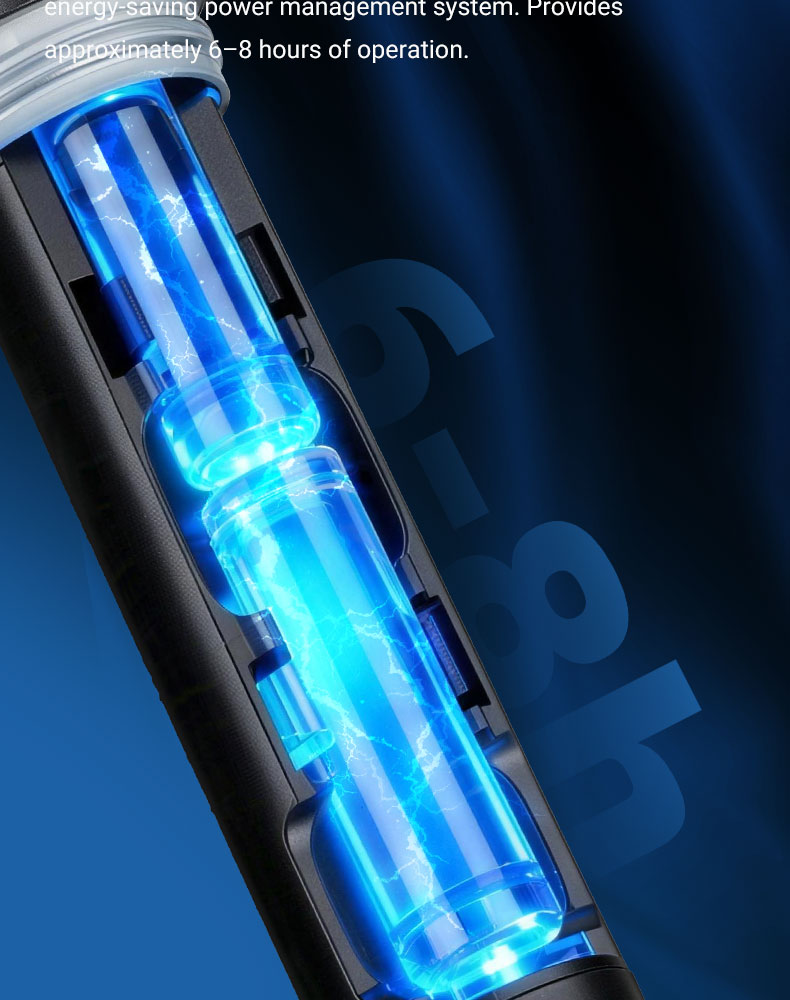

System Specifications: • Frequency Range: 640-690 MHz • Channel Quantity: Dual channels • Signal Channel: 100 • FM Width: 50MHz • Channel Spacing: 250kHz or 25kHz • Modulation/Demodulation: FM • Mute Control: Pilot frequency ID code • Modulation Deviation: ±15kHz • Frequency Response: 40Hz~20kHz • Frequency Stability: ±0.015% • S/N Ratio: ≥115dB A+ • Dynamic Range: ≥100dB A+ • Distortion: ≤1% (at 1kHz) • Operation Range: 300m (open and unobstructed) Receiver Specifications： • Receiver Power Supply: DC 12V⎓0.5A • Antenna Interface: TNC/Impedance 50 Ω • Audio Output: 1 x Independent (XLR), 1 x Hybrid (6.3mm) • Receiver Dimensions (L × W × H): 430 × 190 × 51 mm • Receiver Weight: 2400g Handheld Transmitter Specifications: • Frequency Range: 640-690 MHz • Transmitter Power Supply: 2 AA batteries • Transmitter Power: ≤30mw • Operating Time: Approx. 8 hours (Alkaline battery: approx. 8 hours at low • power, approx. 6 hours at high power) • Handheld Microphone Dimensions (D × H): 53 × 270 mm • Handheld Microphone Weight: 350g Note: The above data are measured by Takstar laboratory which has the final interpretation right!

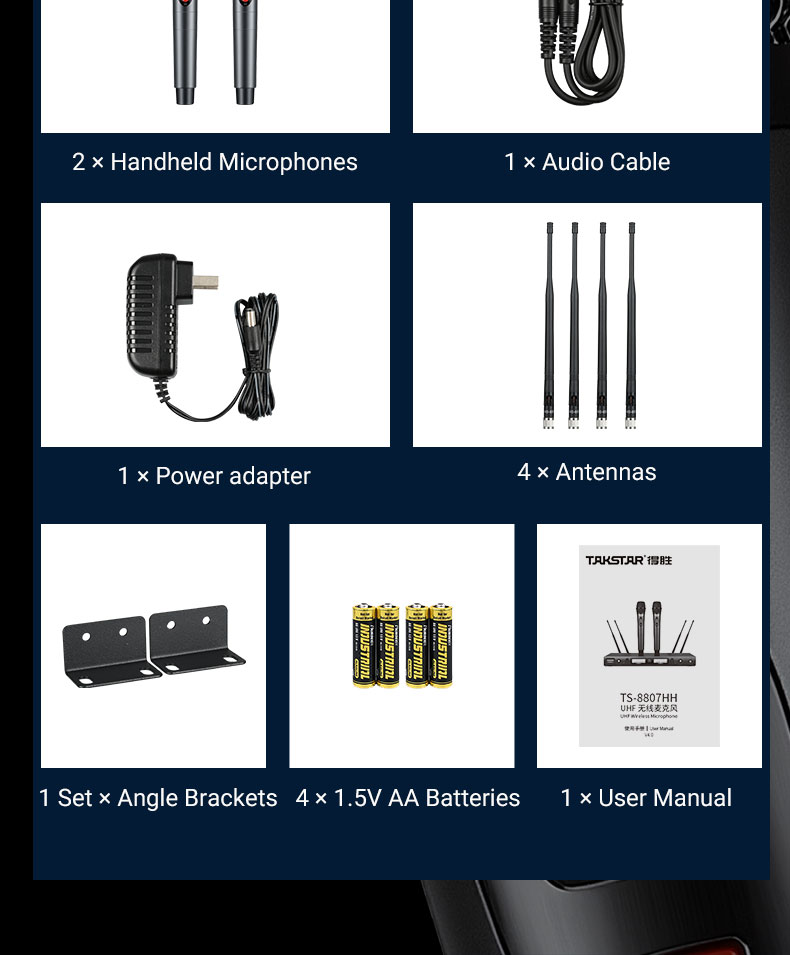

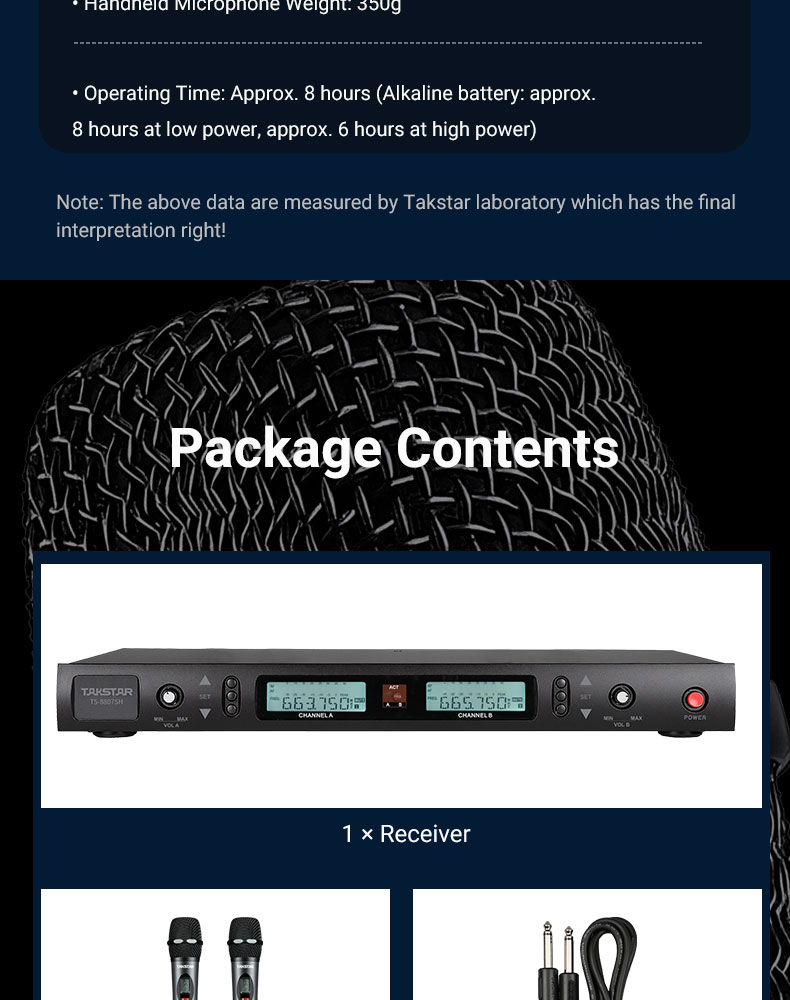

| • Receiver | 1 PC |
| • Handheld microphone | 2 PC |
| • Audio cable | 1 PC |
| • Power adapter | 1 PC |
| • Antenna | 4 PC |
| • Angle bracket | 1 set |
| • 1.5V AA battery | 4 PC |
| • User manual | 1 PC |
User manualTS-8807SH UHF Wireless Microphone User Manual2026-07-14 14:34:38Download
User manualTS-8807SH
