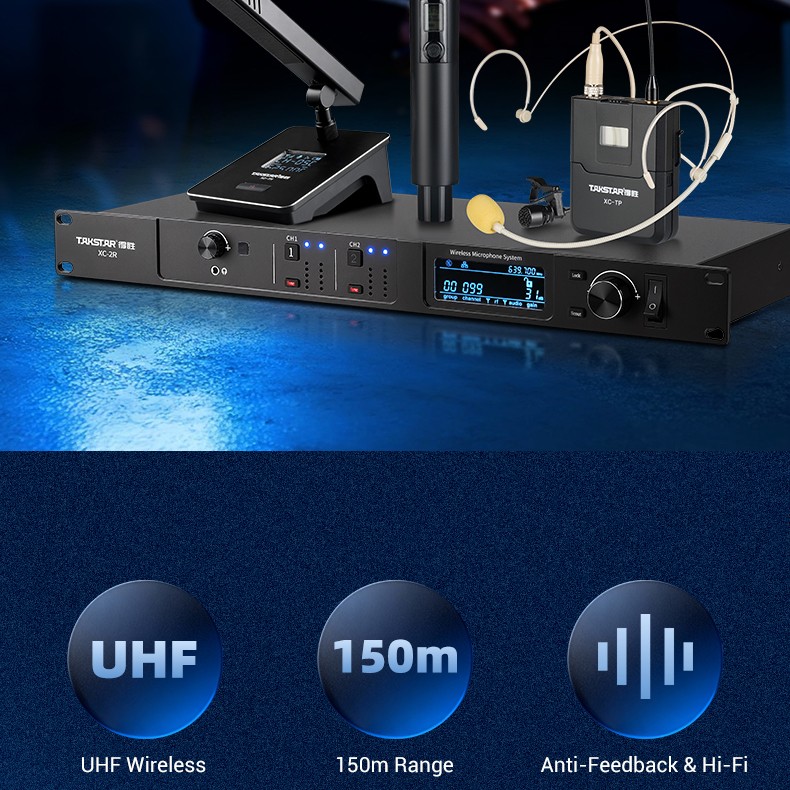

XC-2R 2-Channel Wireless Microphone System
- Wireless
- Conference & Speech
- Dynamic

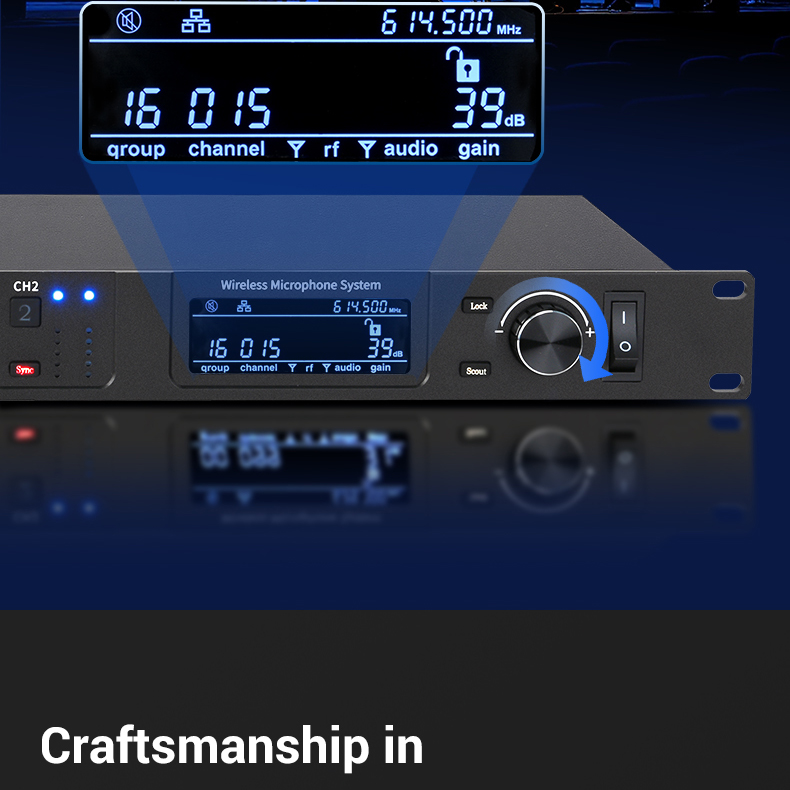

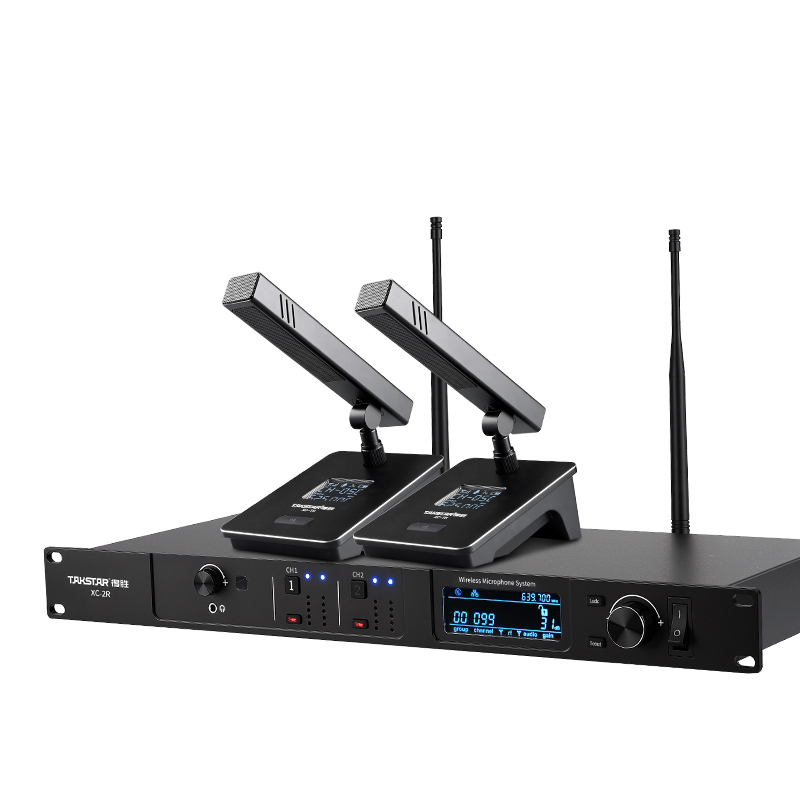

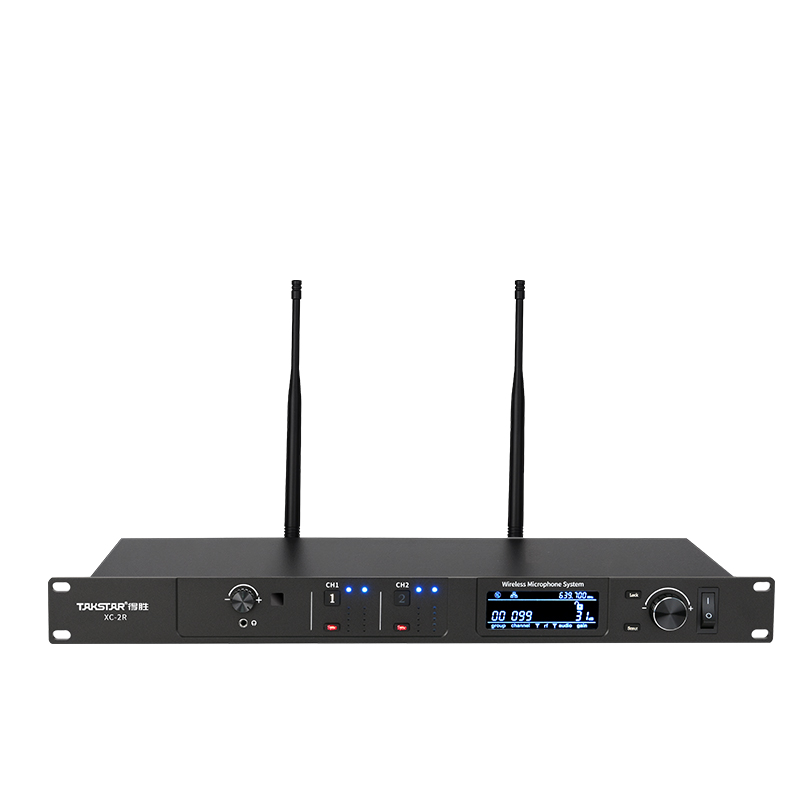

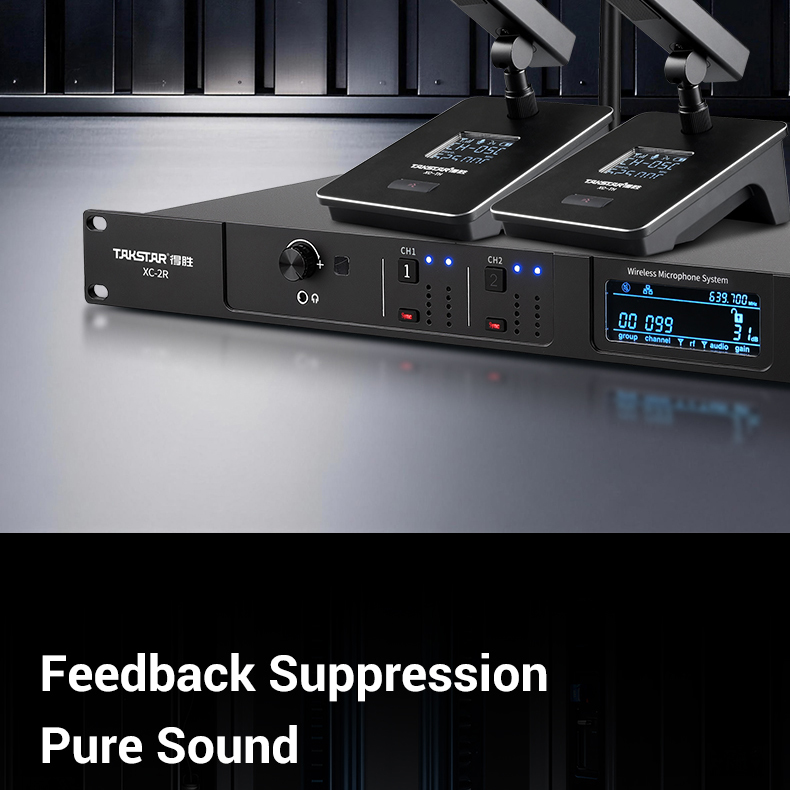

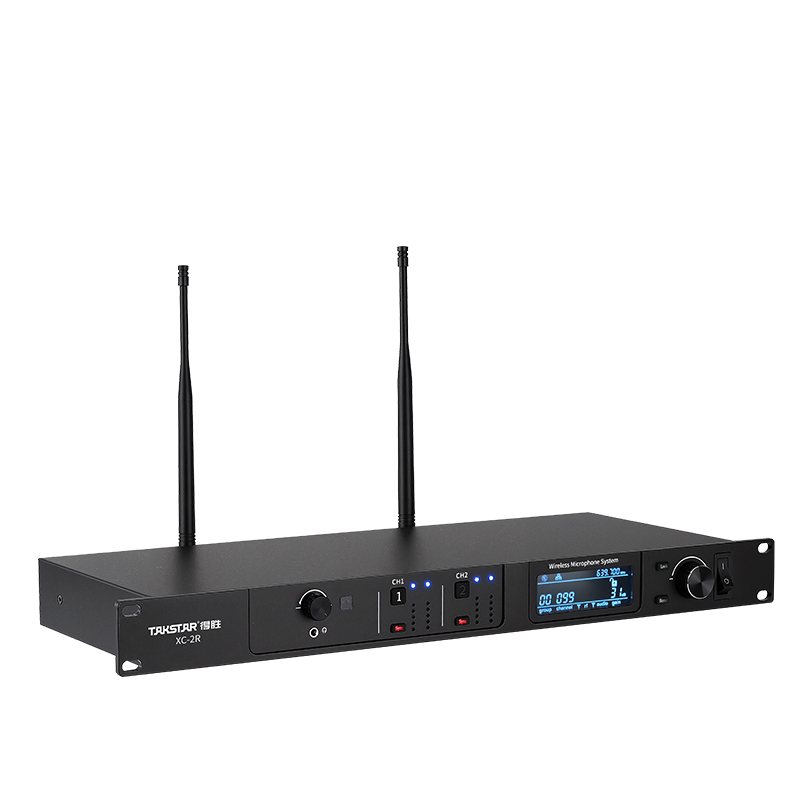

XC-2R Wireless Receiver

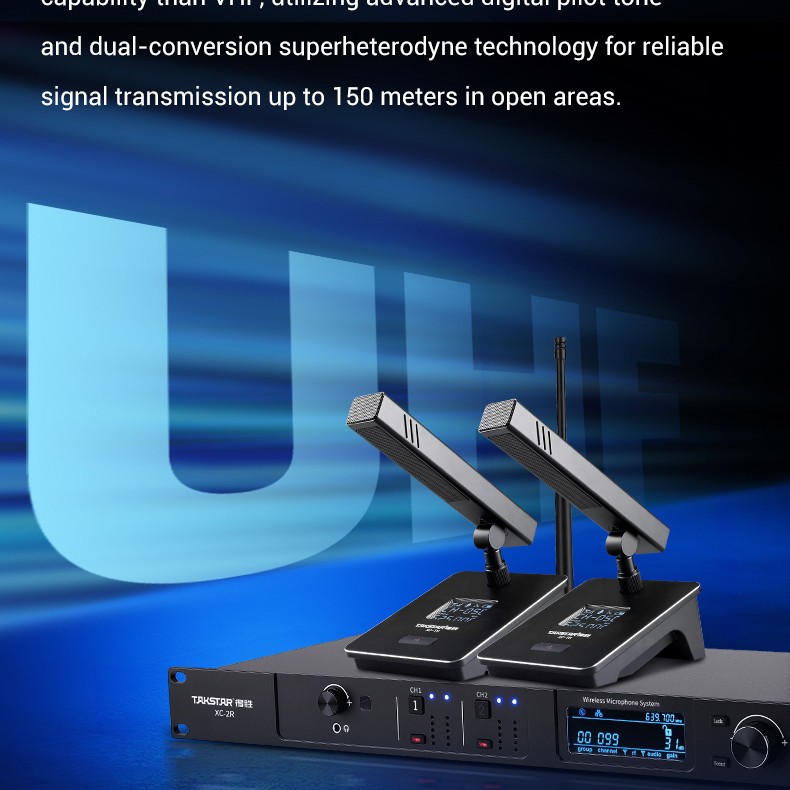

• Utilizes UHF and digital pilot tone to avoid interference and crosstalk.
• DPLL multi-channel frequency synthesis provides up to 200 channel options with a 250KHz channel spacing within a 50MHz bandwidth for multi-system use.

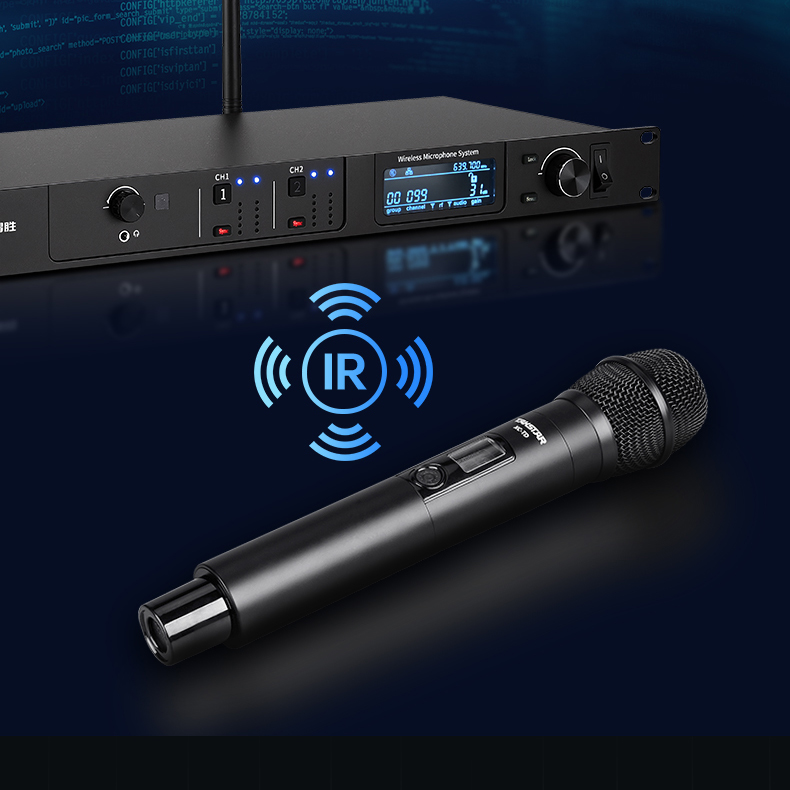

• Automatic pairing enables quick sync of transmitters and receivers.

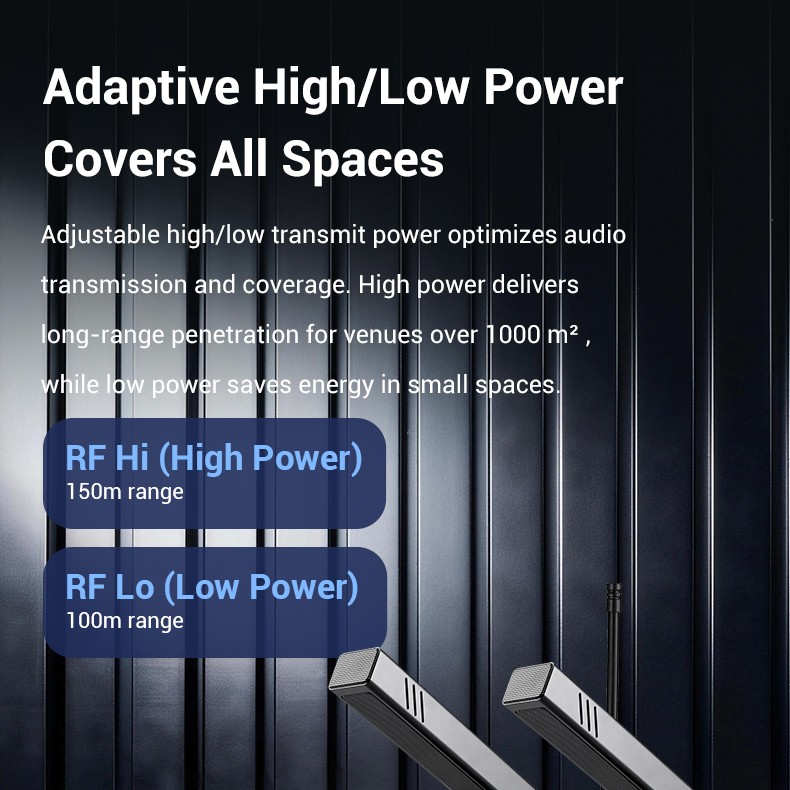

• High/low power switch for venues over/under 1000㎡ .
• Stable 150m transmission range in line of sight.
• Automatic channel scanning simplifies installation.

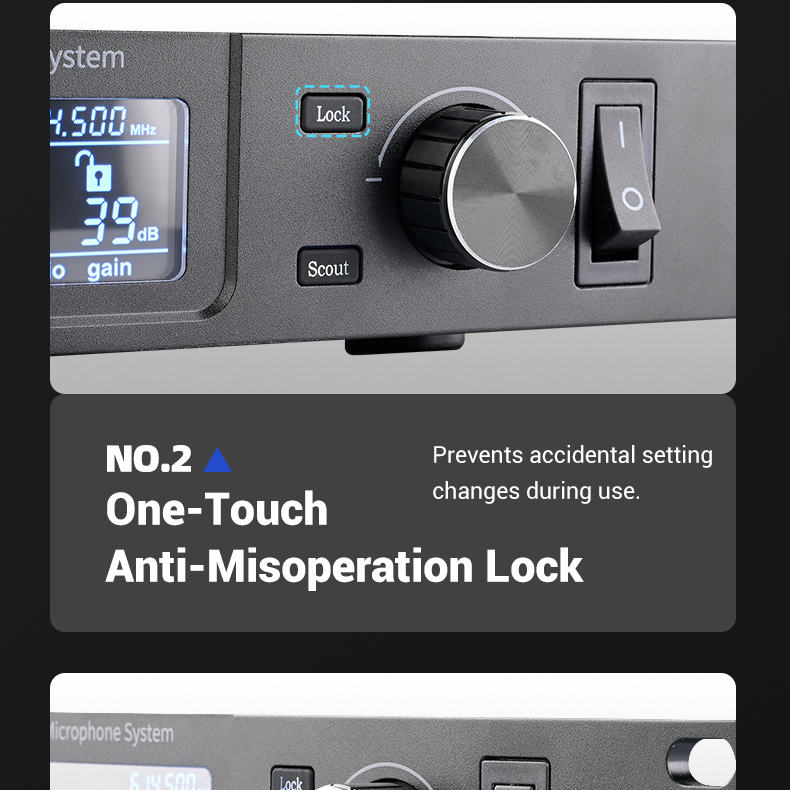

• One-key lock prevents accidental changes.

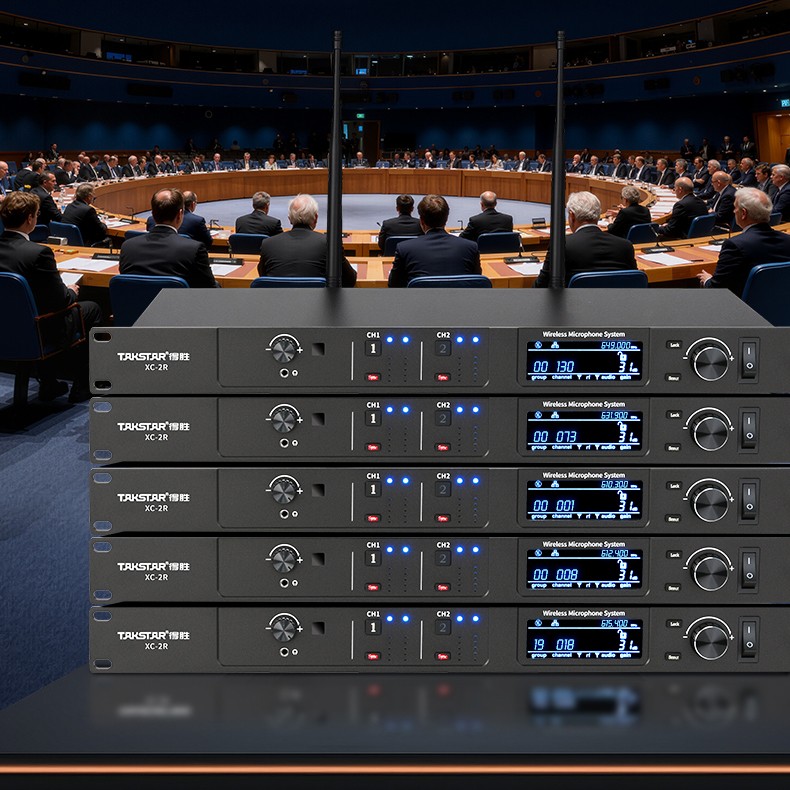

• 50 preset frequency groups for flexible multi-system use.

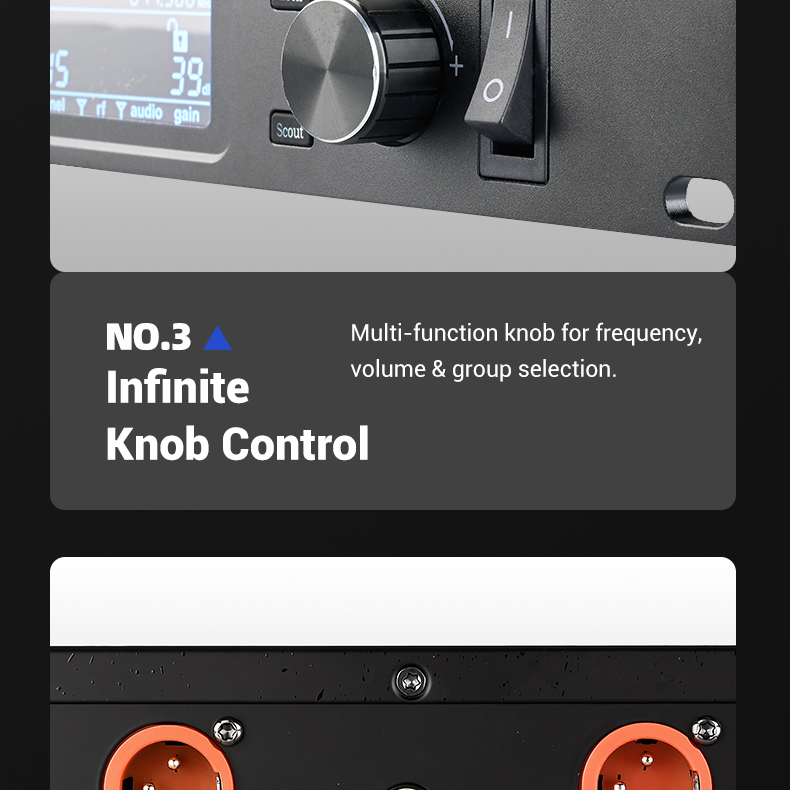

• Electronic volume control from 0-39 in 2dBm increments.

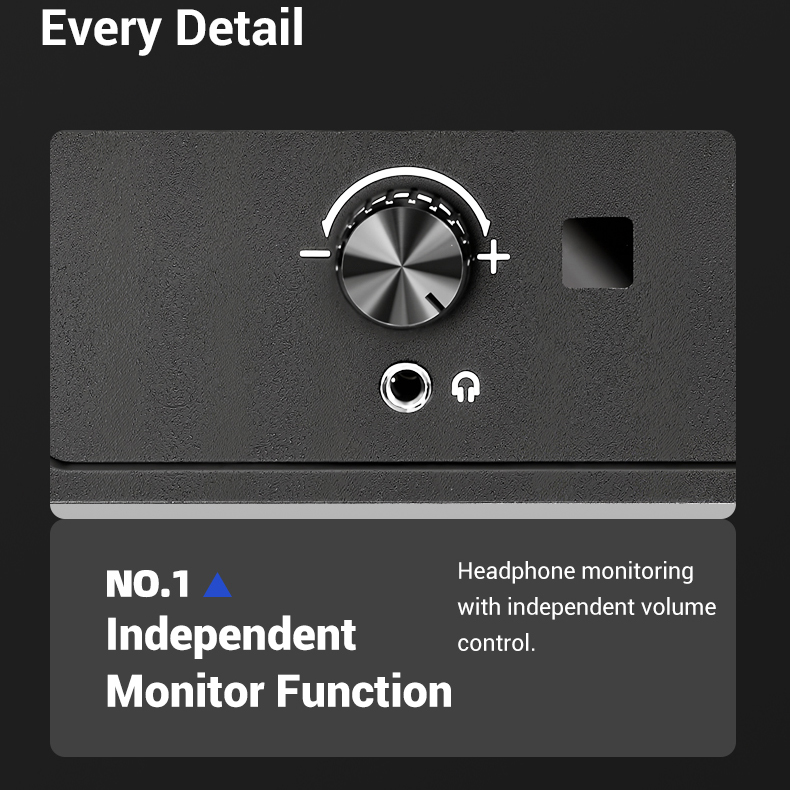

• Headphone monitoring with independent volume control.

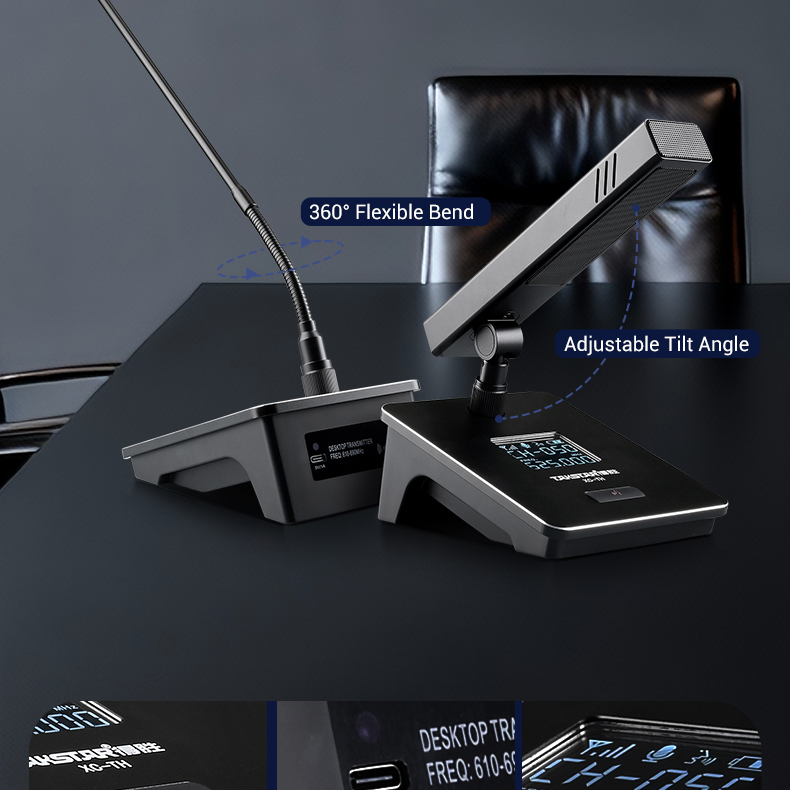

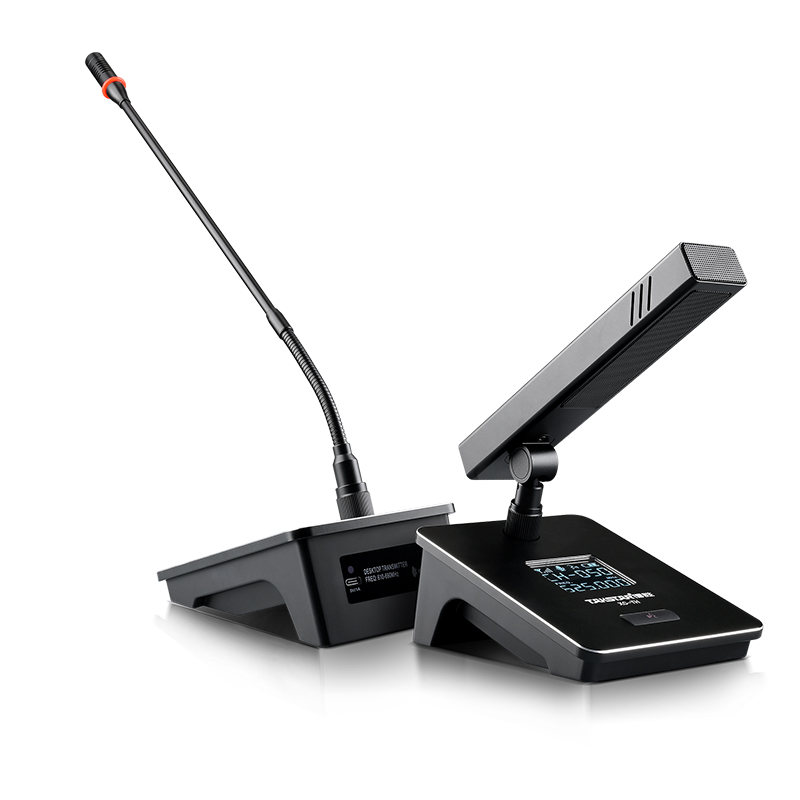

XC-TH Conference Base Transmitter
• UHF & digital pilot tone for interference-free communication.
• DPLL multi-channel frequency synthesis with 200 channel options.
• Quick and convenient automatic pairing.
• Stable signal transmission up to 150m in clear areas.
• One-key mute for flexible control.
• LCD screen for real-time status updates.
• Rechargeable lithium battery with Type-C charging.
• High-sensitivity condenser capsule for clear, natural sound.
• Compatible with gooseneck/rectangular plug-in mics for versatile use.

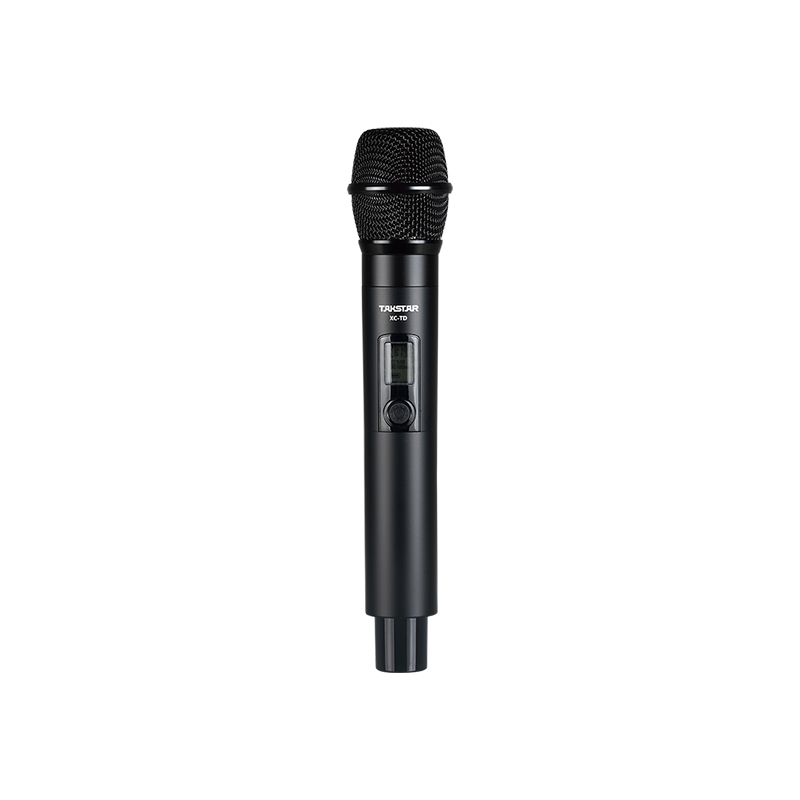

XC-TD Wireless Handheld Microphone
• UHF & digital pilot tone for interference-free communication.
• DPLL multi-channel frequency synthesis with 200 channel options.
• Quick and convenient automatic pairing.
• High/low power switch for venues over/under 1000㎡.
• Stable signal transmission up to 150m in clear areas.
• High-performance dynamic capsule for clear speech.
• LCD screen for real-time status updates.
• Built-in rechargeable lithium battery with Type-C charging.

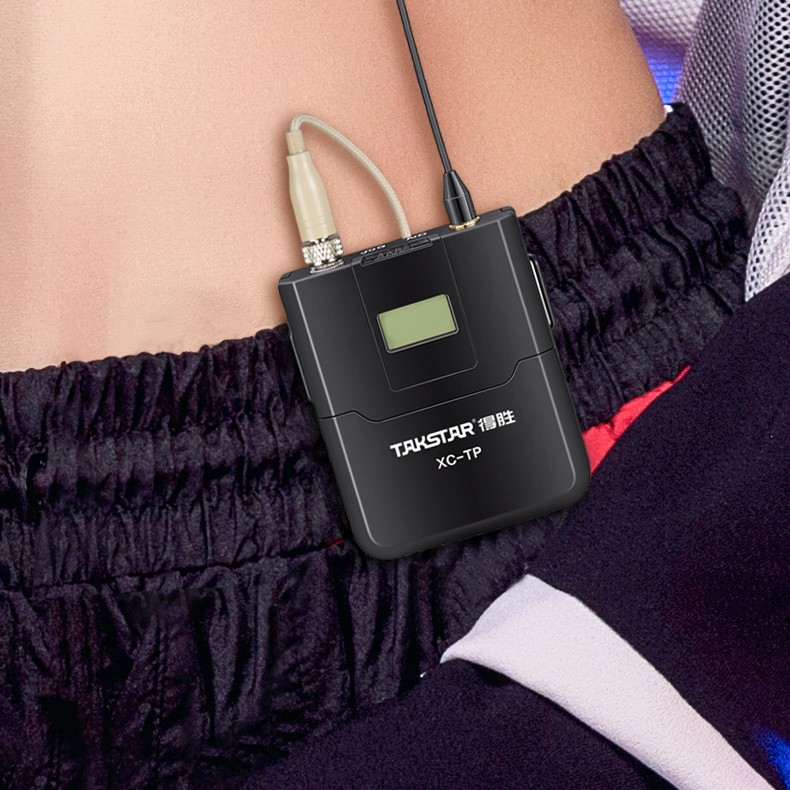

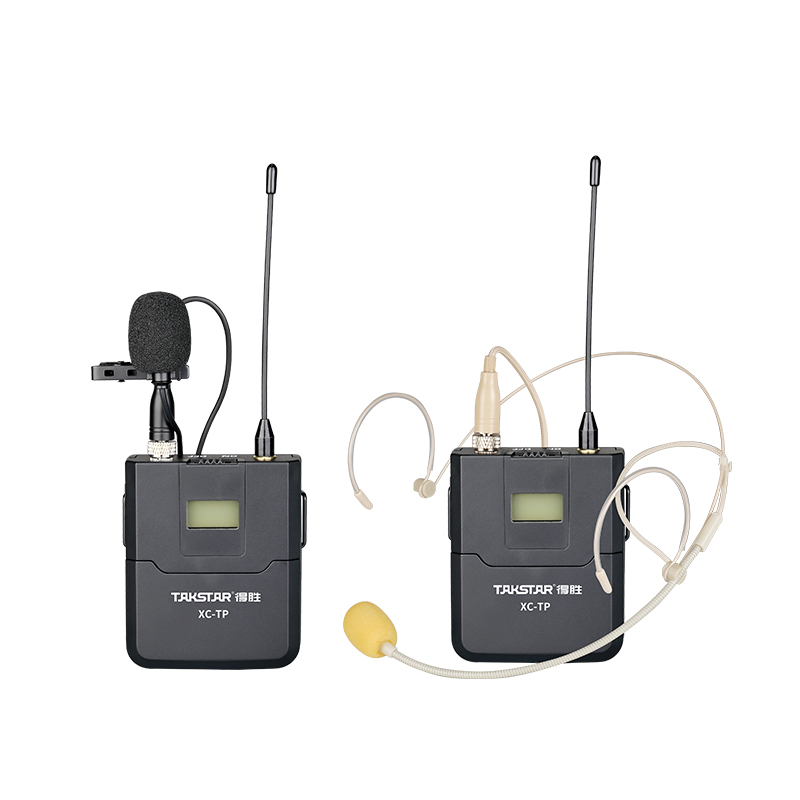

XC-TP Wireless Bodypack Microphone
• UHF & digital pilot tone for interference-free communication.
• DPLL multi-channel frequency synthesis with 200 channel options.
• Quick and convenient automatic pairing.
• Stable signal transmission up to 150m in clear areas.
• High/low power switch for venues over/under 1000㎡.
• One-key lock function to avoid misoperation.
• LCD screen for real-time status updates.
• Compact and lightweight design, compatible with headset and lapel mics.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial

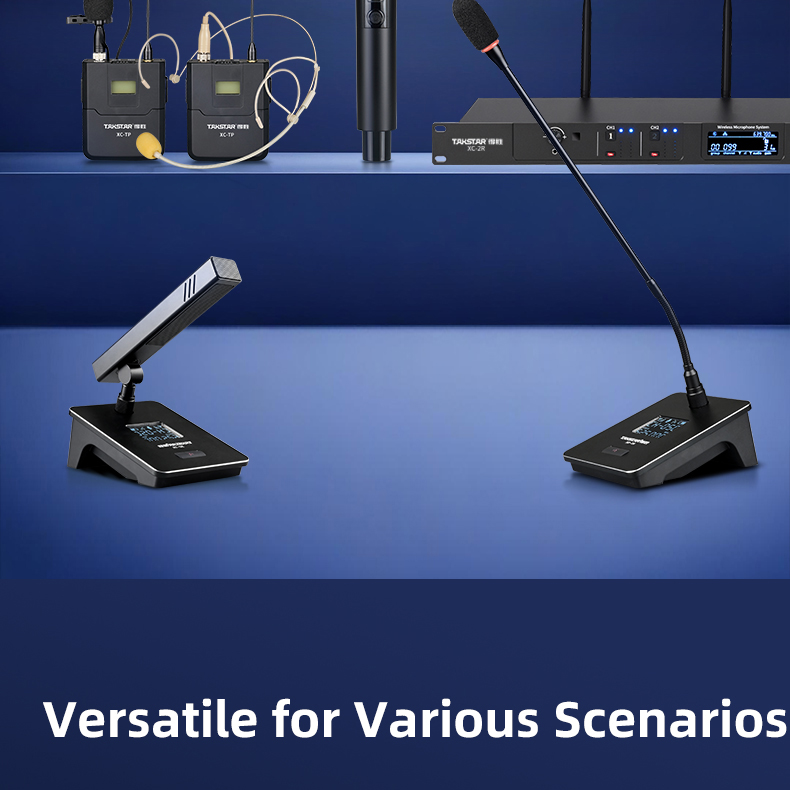

• Pro sound amplification in conferences, lecture halls, multi-purpose halls, etc.

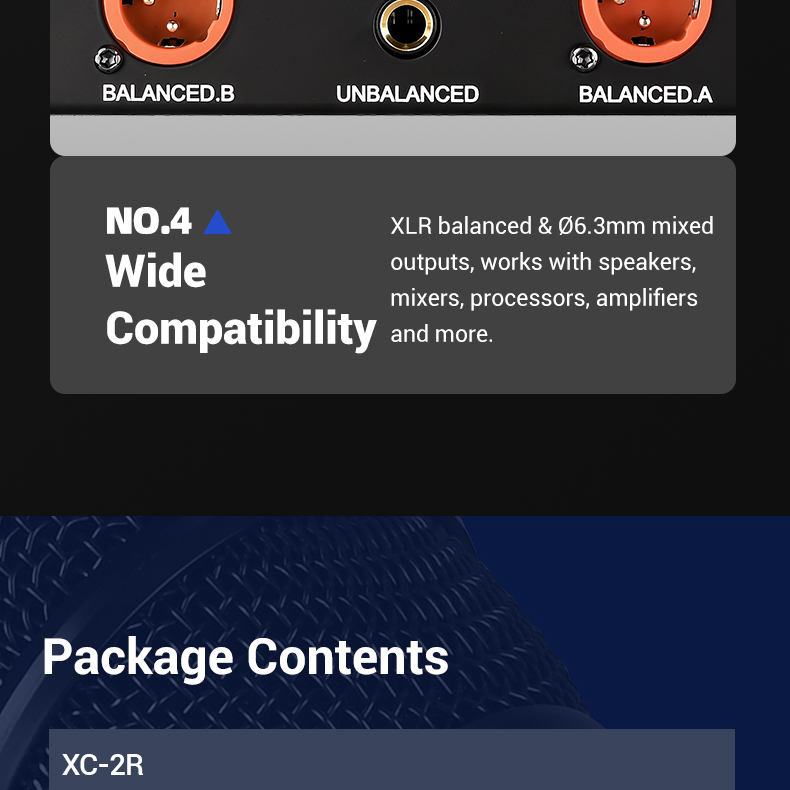

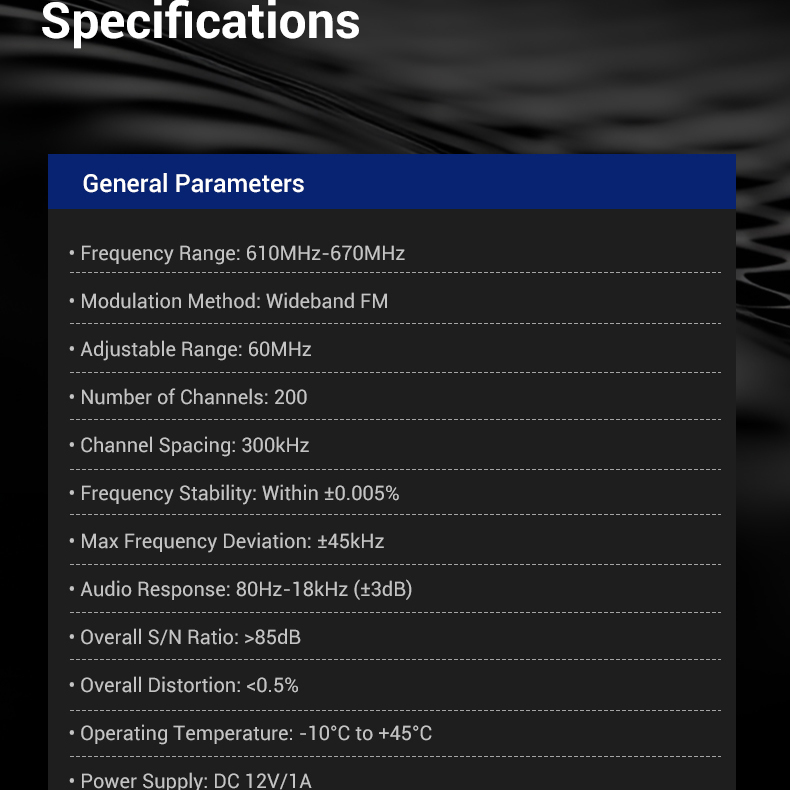

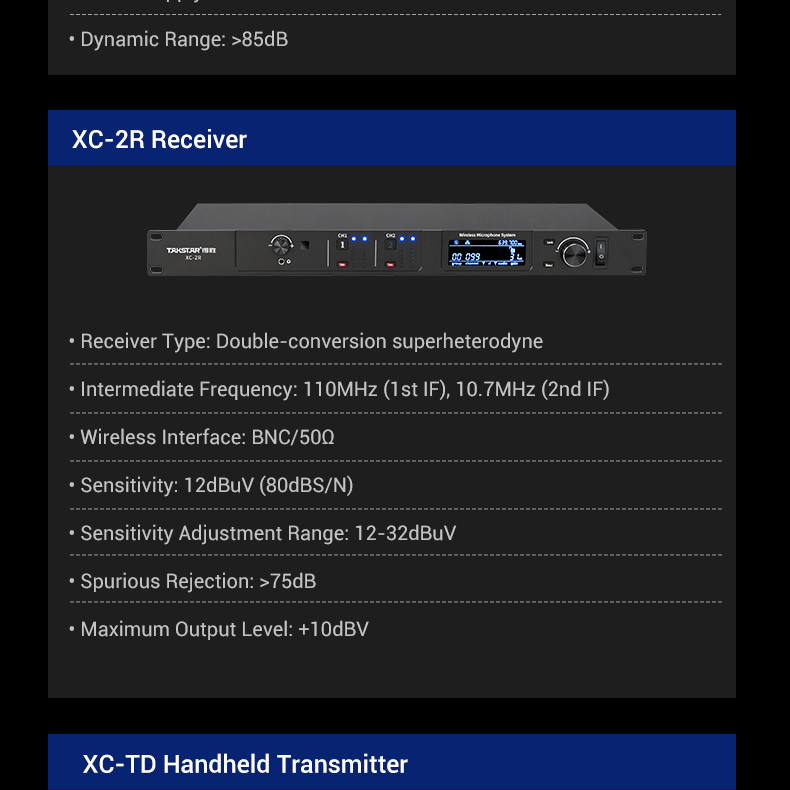

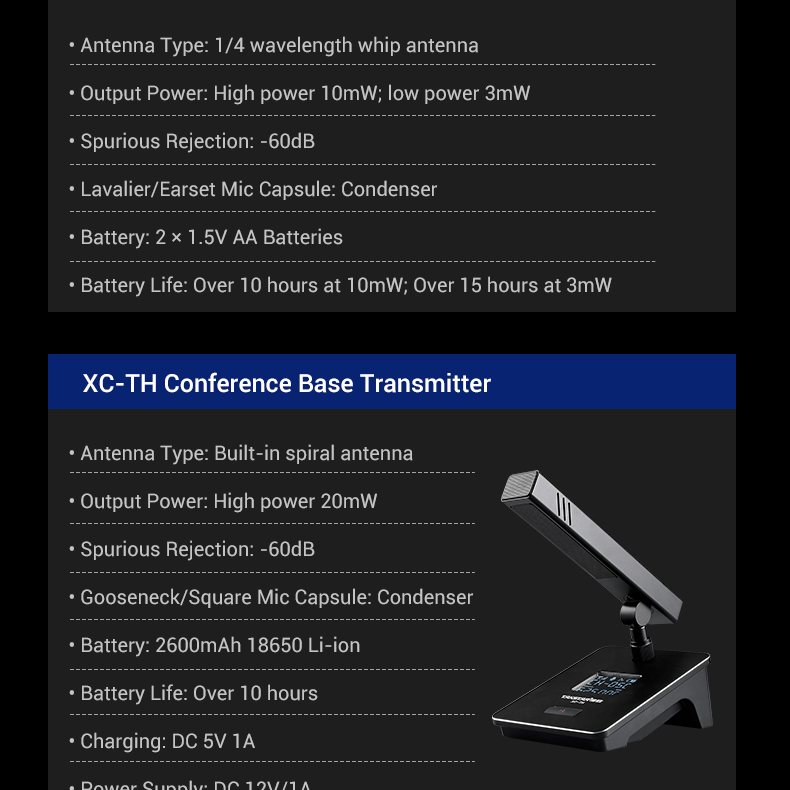

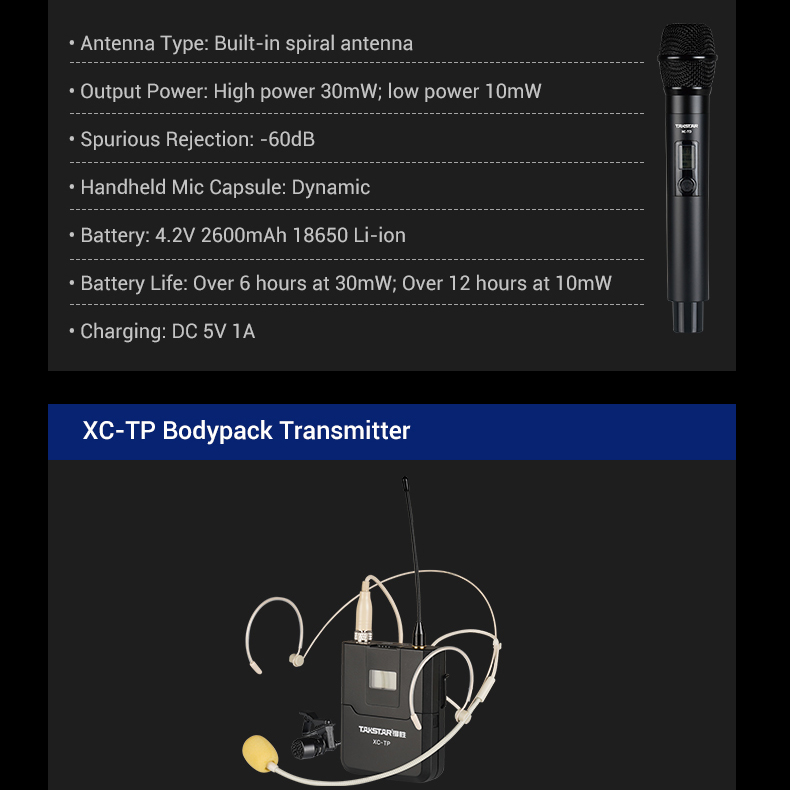

XC-2R Receiver • Receiver Type: Double-conversion superheterodyne • Intermediate Frequency: 110MHz (1st IF), 10.7MHz (2nd IF) • Wireless Interface: BNC/50Ω • Sensitivity: 12dBμV (80dBS/N) • Sensitivity Adjustment Range: 12-32dBμV • Spurious Rejection: ≥75dB • Maximum Output Level: +10dBV • Power Supply: DC 12V/1A XC-TH Conference Mic Base Transmitter • Antenna Type: Built-in spiral antenna • Output Power: High Power 20mW • Spurious Rejection: -60dB • Gooseneck/Rectangular Mic Capsule: Condenser • Battery: 3.7V 2600mah 18650 Li-ion • Battery Life: Over 10 hours • Charging: DC 5V⎓1A XC-TD Handheld Transmitter • Antenna Type: Built-in spiral antenna • Output Power: High Power 30mW; Low Power 10mW • Spurious Rejection: -60dB • Handheld Mic Capsule: Dynamic • Battery: 3.7V 2600mah 18650 Li-ion • Battery Life: Over 6 hours at 30mW; Over 12 hours at 10mW • Charging: DC 5V⎓1A XC-TP Bodypack Transmitter • Antenna Type: 1/4 wavelength whip antenna • Output Power: High Power 10mW; Low Power 3mW • Spurious Rejection: -60dB • Lavalier/Earset Mic Capsule: Condenser • Battery: 2 × 1.5V AA Batteries • Battery Life: Over 10 hours at 10mW; Over 15 hours at 3mW General Parameters • Frequency Range: 610MHz-670MHz • Modulation Method: Wideband FM • Adjustable Range: 60MHz • Number of Channels: 200 • Channel Spacing: 300KHz • Frequency Stability: Within ±0.005% • Dynamic Range: >85dB • Max Frequency Deviation: ±45kHz • Audio Response: 80Hz-18kHz (±3dB) • Overall S/N Ratio: >85dB • Overall Distortion: ≤0.5% • Operating Temperature: -10°C to +45°C • Power Supply: DC 12V/1A Note: The above data are measured by Takstar laboratory which has the final interpretation right!

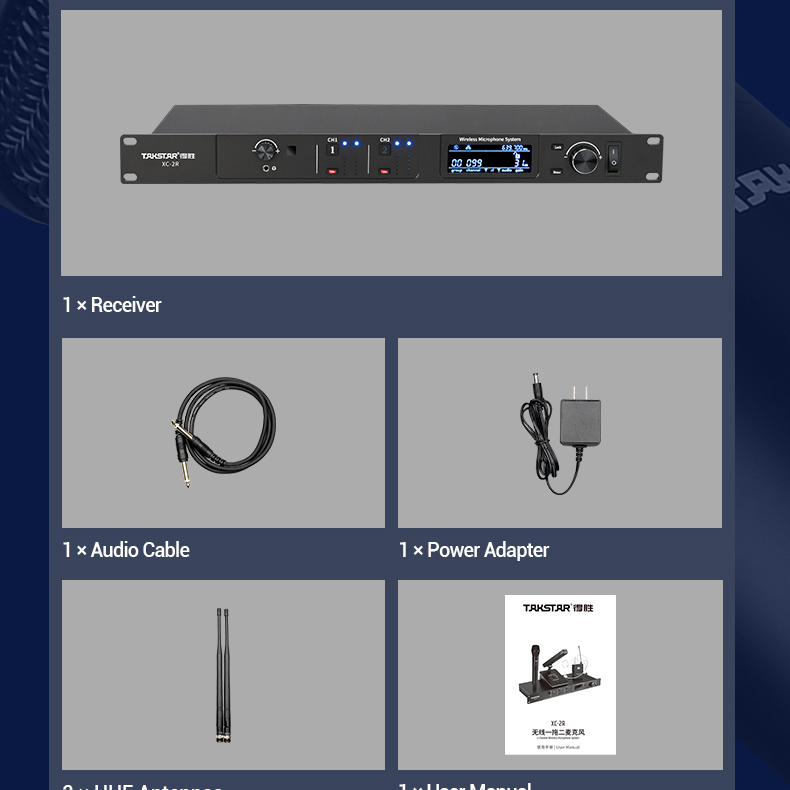

| XC-2R | |
| • Receiver | 1 PC |
| • Audio Cable | 1 PC |
| • Power Adapter | 1 PC |
| • UHF Antenna | 2 PC |
| • User Manual | 1 PC |

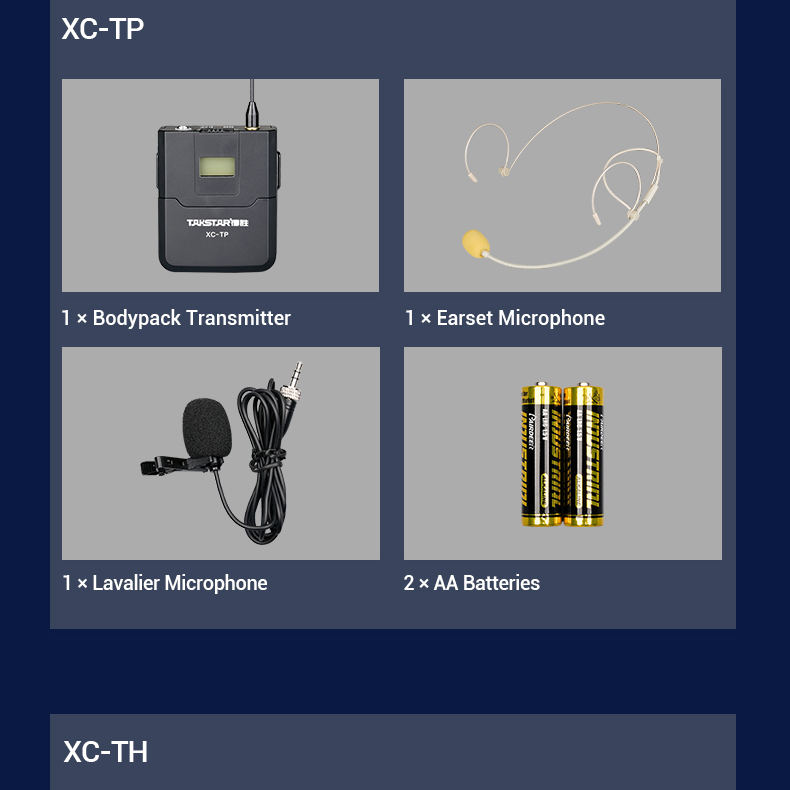

| XC-TP | |
| • Bodypack Transmitter | 1 PC |
| • Earset Microphone | 1 PC |
| • Lavalier Microphone | 1 PC |
| • AA Battery | 2 PC |

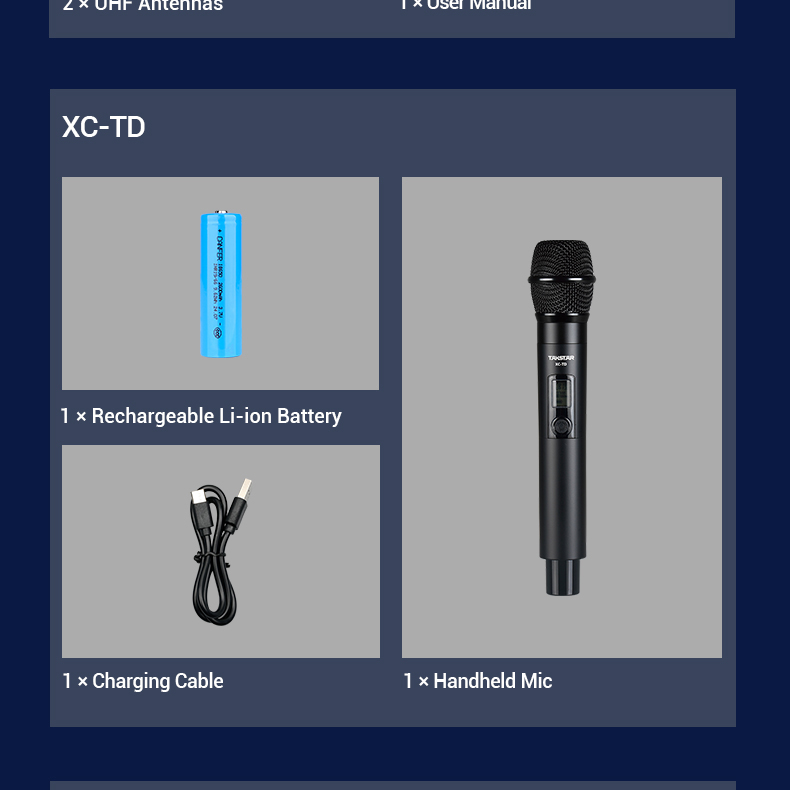

| XC-TD | |
| • Handheld Mic | 1 PC |
| • Rechargeable Li-ion Battery | 1 PC |
| • Charging Cable | 1 PC |

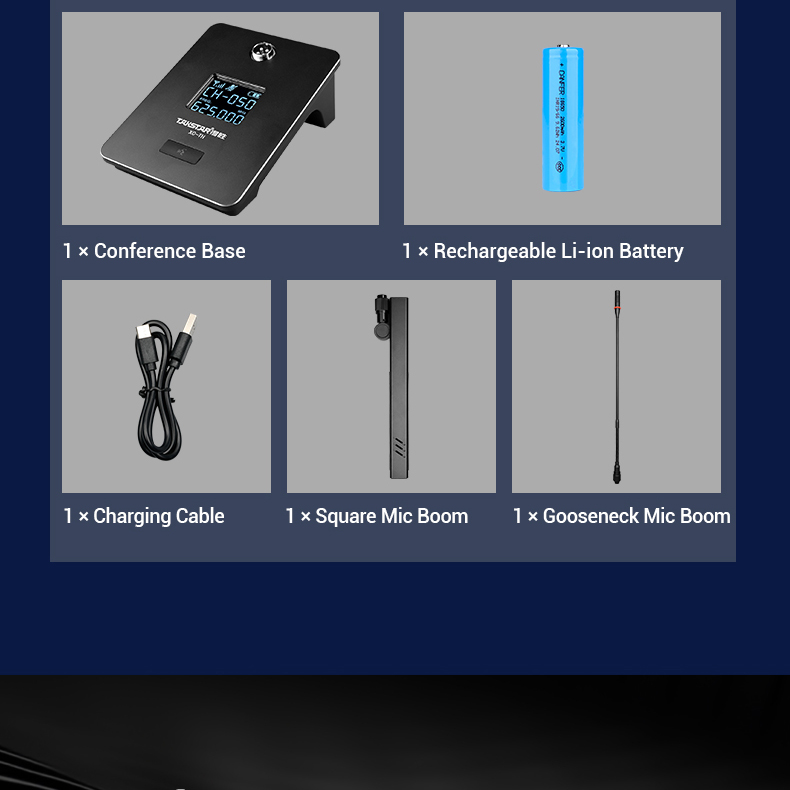

| XC-TH | |
| • Conference Mic Base | 1 PC |
| • Rechargeable Li-ion Battery | 1 PC |
| • Charging Cable | 1 PC |
| • Rectangular Plug-in Mic | 1 PC |
| • Gooseneck Plug-in Mic | 1 PC |
User manualXC-2R 2-Channel Wireless Microphone System User Manual2026-06-22 09:58:12Download
User manualXC-2R
