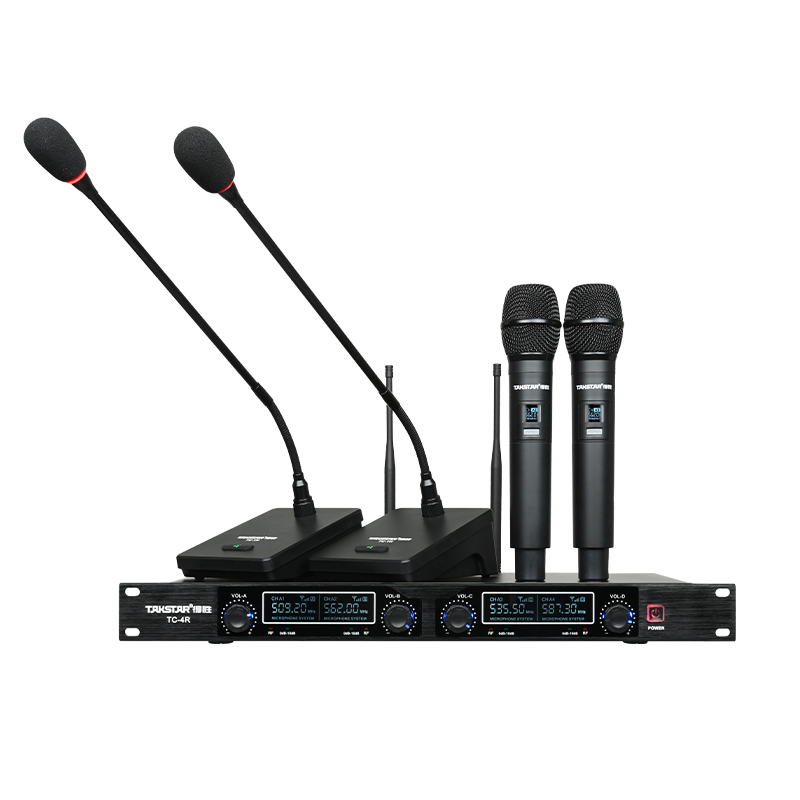

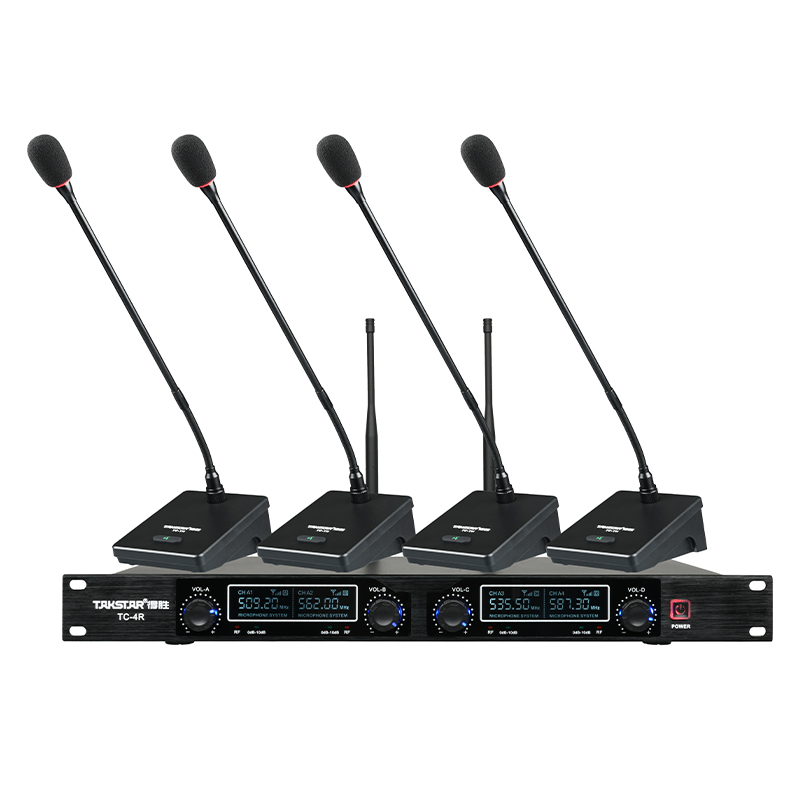

TC-4R (Upgraded Version) Wireless Microphone

Conference & Speech
Handheld
Wireless
UHF

• Utilizes UHF high-performance integrated circuit design to effectively reduce reception blind spots and improve reception stability.

• Features unique channel ID code identification to effectively prevent crosstalk and noise from external sources or between channels.

• Wireless operation range of approximately 80 meters in an open, unobstructed enviroment.

• LCD clearly displays current operating information for user interaction at a glance.

• Independent balanced (XLR) and unbalanced (6.35 mm jack) mixed outputs for flexible device connectivity.

• Equipped with selected anti-interference frequency combinations, supports multi-unit stacking for simultaneous use without transmitter interference.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for school classrooms, conferences, home entertainment, outdoor performances and other occasions.

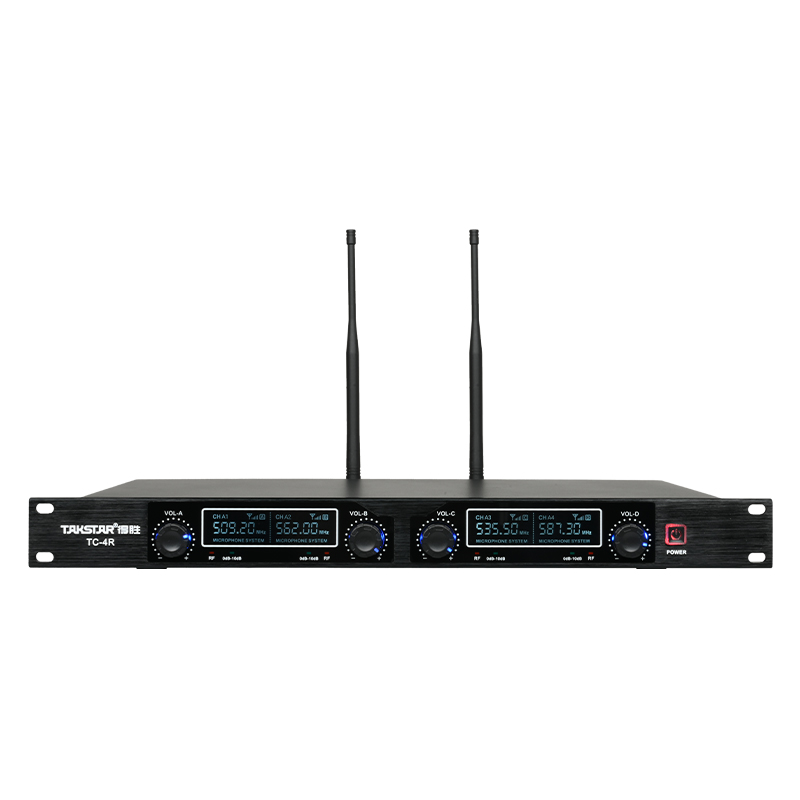

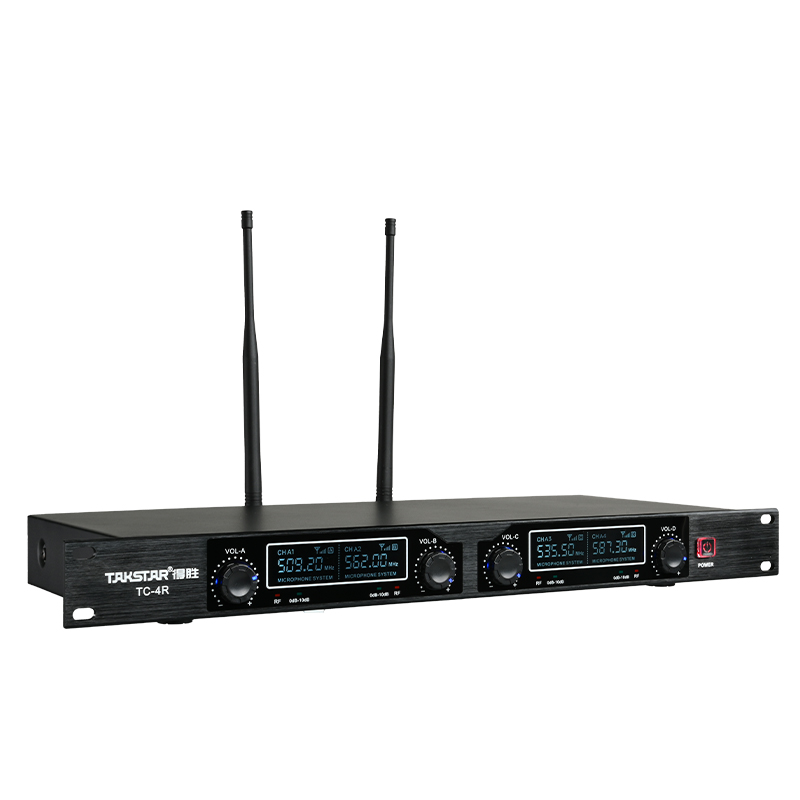

Receiver
• Frequency Range: 500-690 MHz (Sectional Design)
• Distortion: <0.5%
• Signal-to-Noise Ratio: >80dB
• Frequency Stability: ±10 ppm
• Frequency Response: 50 Hz - 18 kHz
• Sensitivity: 10 dBuV
• Operating Range: Approx. 80m (unobstructed)
• Adjacent Channel Rejection: 65 dB
• Display: LCD
• Image Rejection: 75 dB
• Power Supply: DC = 12V
• Audio Output: 200 mV
• Output Impedance: XLR connector: 200Ω; 1/4 connector: 1kΩ
• Dimensions:482*180*44mm
• Weight: Approx. 650g

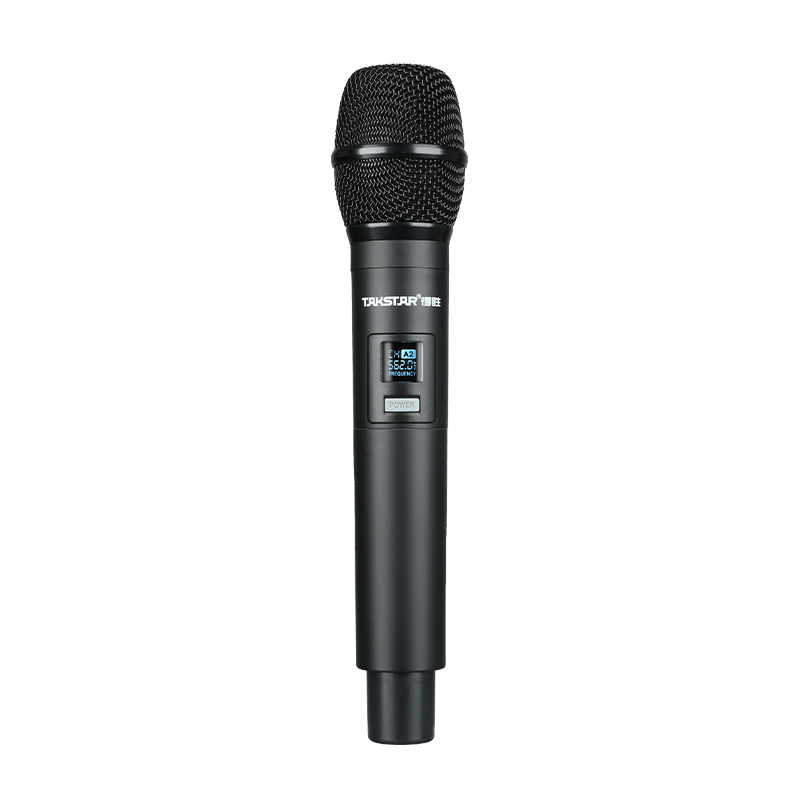

Handheld Microphone
• Frequency Range: 500-690 MHz (Sectional Design)
• Frequency Response: 50Hz-18kHz
• Modulation: FM
• Frequency Stability: ±10ppm
• Maximum Deviation: 75K
• RF Output Power: 10mW
• Operating Voltage: 3V
• Operating Range: Approx. 80m (unobstructed)
• Operating Current: 180mA
• Harmonic Suppression: >65dB
• Display: LCD
• Operating Time: Approx. 8 hours (Alkaline battery)

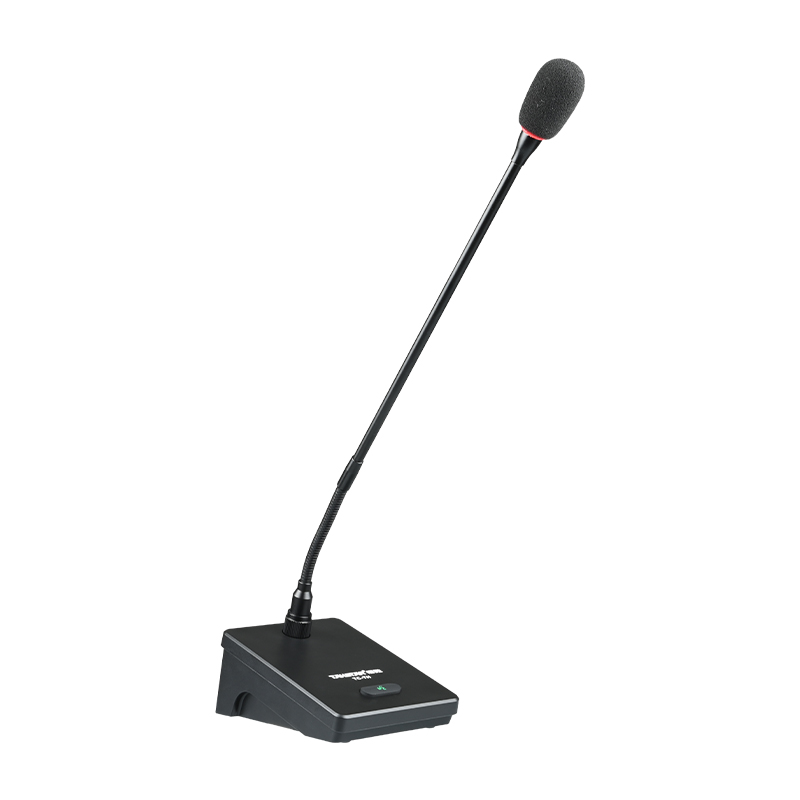

Gooseneck Conference Base
• Frequency Range: 500-690MHz (Sectional Design)
• Frequency Response: 60Hz-18kHz
• Modulation: FM
• Frequency Stability: ±10ppm
• Maximum Deviation: 75K
• RF Output Power: 10mW
• Operating Voltage: 3V
• Operating Range: Approx. 80m (unobstructed)
• Operating Current: 180mA
• Harmonic Suppression: >65dB
• Display: LCD
• Operating Time: Approx. 8 hours (Alkaline battery)

Note: The above data are measured by Takstar laboratory which has the final interpretation right!

TC-4R Main Unit Standard Configuration
• Receiver Main Unit	1 PC
• Power Adapter	1 PC
• Audio Output Cable	1 PC
• User Manual	1 PC

TC-TD Configuration (Optional)
• Handheld Microphone	1 PC
• AA 1.5V Batteries	2 PC
• Anti-Slip Ring	1 PC

TC-TH Configuration (Optional)
• Conference Base	1 PC
• Gooseneck Microphone	1 PC
• AA 1.5V Batteries	2 PC
• Windscreen	1 PC
