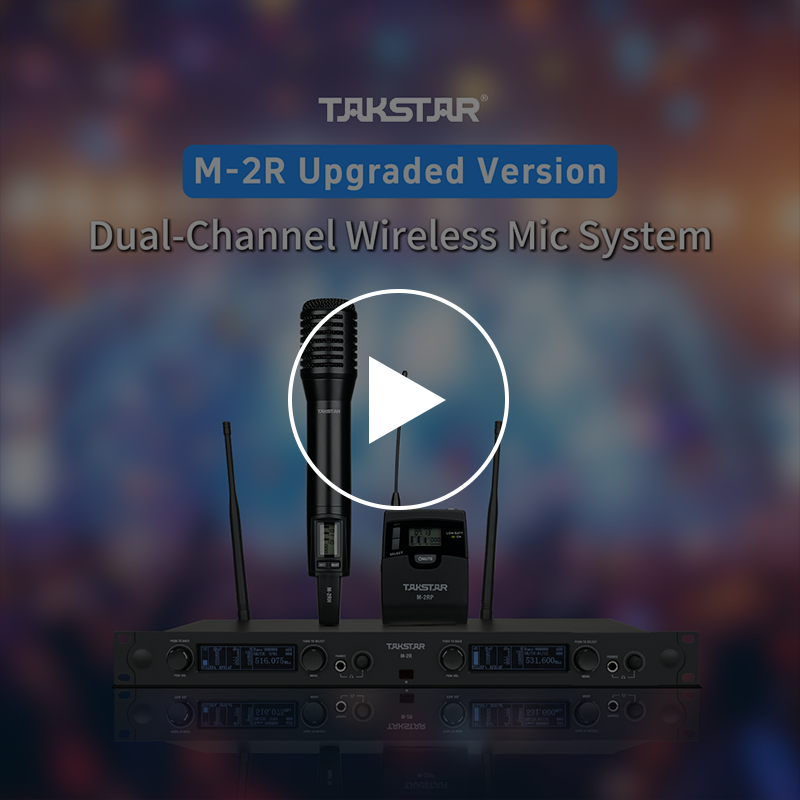

M-2R (Upgraded Version) Dual-Channel Wireless Microphone System
- Conference & Speech
- Wireless
- Handheld
- Bodypack
• True diversity wireless digital pilot tone for enhanced signal and interference resistance.
• Automatic frequency tracking for stable output and improved reliability.
• 1280 frequency points in 42MHz bandwidth, supporting over 16 simultaneous channels.
• 225 selectable address codes; 20 user frequency groups and 10 channel configurations.
• Automatic idle channel selection and PC connection for scanning and assignment.
• Quick automatic scanning to identify interference-free channels.
• PC interface for detailed monitoring and control.
• 4 built-in EQ settings for customizable audio.
• 3 noise gate thresholds for clearer communication and reduced noise.
• Saves and retrieves up to 10 preset configurations.
• Independent monitoring output for real-time audio checks.
• 3 power settings on the transmitter for distance adaptability.
• 5-segment battery and audio level displays on receiver and transmitter.
• User name setting with six-character (0-9 or A-Z) options.
• Dual rotary switch with drop-down menu for easy operation.
• OLED display on receiver; LCD display on transmitter for clear status overview.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• For high-demand projects such as concerts, and performance venues.
Receiver • Frequency Range: 516-558MHz • Maximum Channels: 1280 • System Compatibility: Supports 8 devices operating simultaneously • Frequency Response: 50Hz-16kHz (±3dB) • Frequency Bandwidth: 42MHz • Total Harmonic Distortion: <0.5% • RF Sensitivity: < -104dBm • Audio Output Level: 10dBu Max • Operating Distance: 100m • Signal-to-Noise Ratio: ≥110dB (A) • Product Dimensions: 482*160*44mm • Output Interface: 2× Ø6.35mm unbalanced outputs, 2× XLR balanced outputs • Power Requirements: DC12V/18V-1A • Product Weight: Approx. 2600g Handheld Transmitter • Frequency Range: 516-558MHz • Frequency Bandwidth: 42MHz • Maximum Deviation: ±60kHz • Gain Adjustment Range: 0/-10/-20/-30/-40 dB • RF Power: 10mW/30mW/50mW • Frequency Response: 50Hz-16kHz (±3dB) • Display Type: LED • Battery Spec: 2×1.5V AA alkaline • Operating Time: >8 hours • Product Weight: Approx. 350g (excl. batteries) Bodypack Transmitter • Frequency Range: 516-558MHz • Frequency Bandwidth: 42MHz • Maximum Deviation: ±60kHz • Gain Adjustment Range: 0/-10/-20/-30/-40 dB • RF Power: 10mW/30mW/50mW • Frequency Response: 50Hz-16kHz (±3dB) • Display Type: LED • Battery Spec: 2×1.5V AA alkaline • Operating Time: >8 hours • Product Weight: Approx. 90g (excl. batteries) Note: The above data are measured by Takstar laboratory which has the final interpretation right!
M-2RH Wireless Microphone
| • Receiver Unit | 1 PC |
| • Handheld Microphone | 2 PC |
| • Audio Connection Cable | 2 PC |
| • Power Adapter | 1 PC |
| • UHF Antenna | 2 PC |
| • BNC Adapter | 2 PC |
| • BNC Cable | 2 PC |
| • AA 1.5V Battery | 4 PC |
| • Carrying Case | 1 PC |
| • User Manual | 1 PC |
M-2RP Wireless Microphone
| • Receiver Unit | 1 PC |
| • Bodypack Transmitter | 2 PC |
| • Lavalier Microphone | 2 PC |
| • Audio Connection Cable | 2 PC |
| • Power Adapter | 1 PC |
| • UHF Antenna | 2 PC |
| • BNC Adapter | 2 PC |
| • BNC Cables | 2 PC |
| • AA 1.5V Battery | 4 PC |
| • Carrying Case | 1 PC |
| • User Manual | 1 PC |
User manualM-2R (Upgraded Version) Dual-Channel Wireless Microphone System User Manual2025-03-24 16:10:37Download
User manualM-2R (Upgraded Version)
