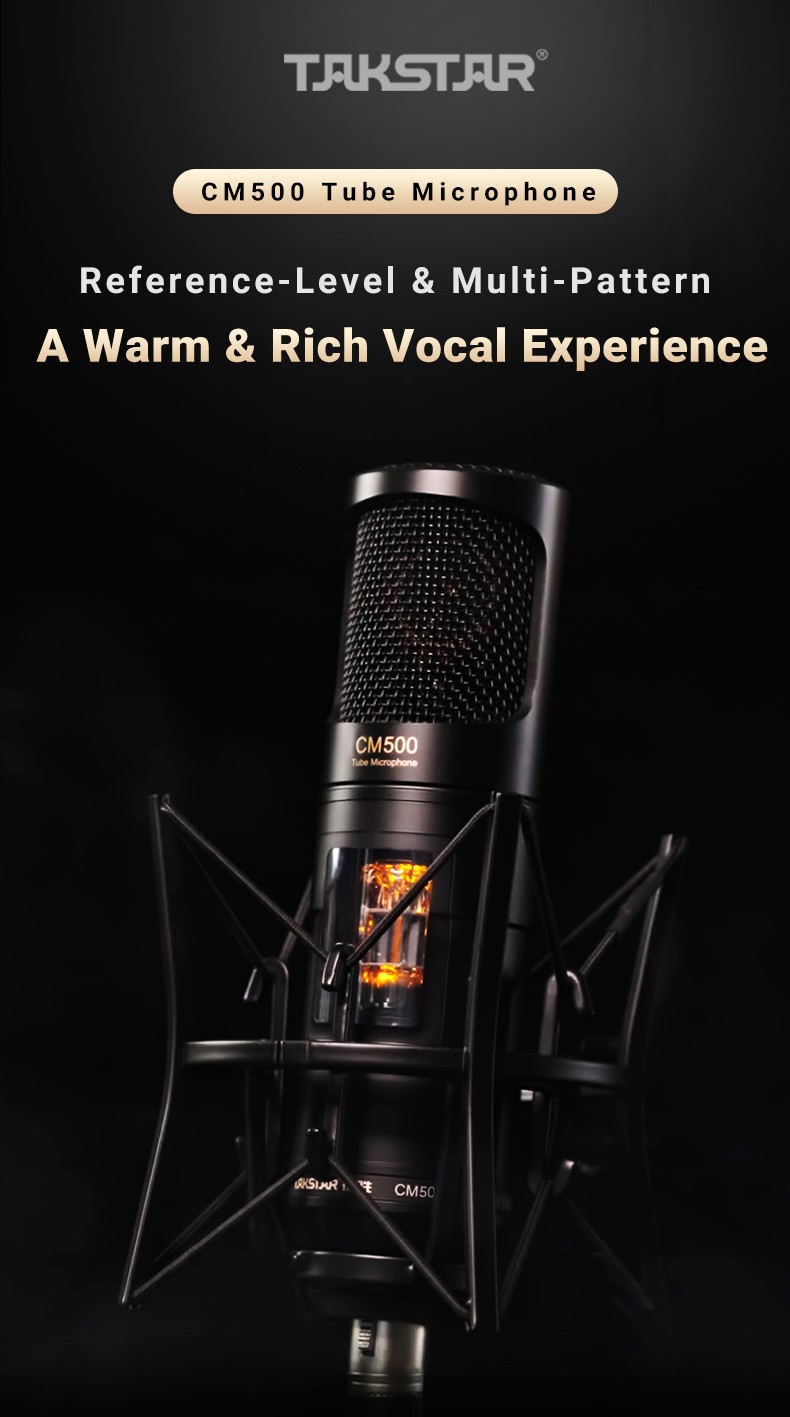

CM500 Professional Tube Microphone

Recording
Wired
Omnidirectional
Unidirectional
Condenser
Bidirectional

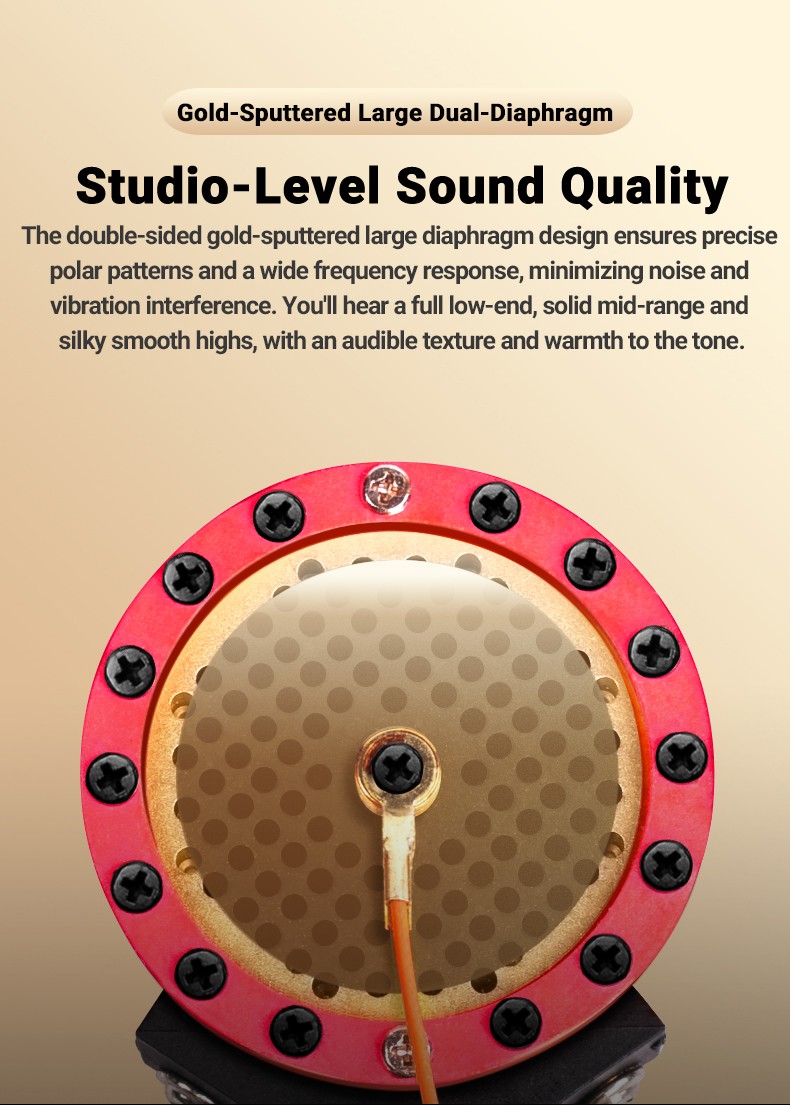

• Dual-side gold-sputtered diaphragm for precise directionality and wide frequency response.

• 9 selectable polar patterns for versatile application.

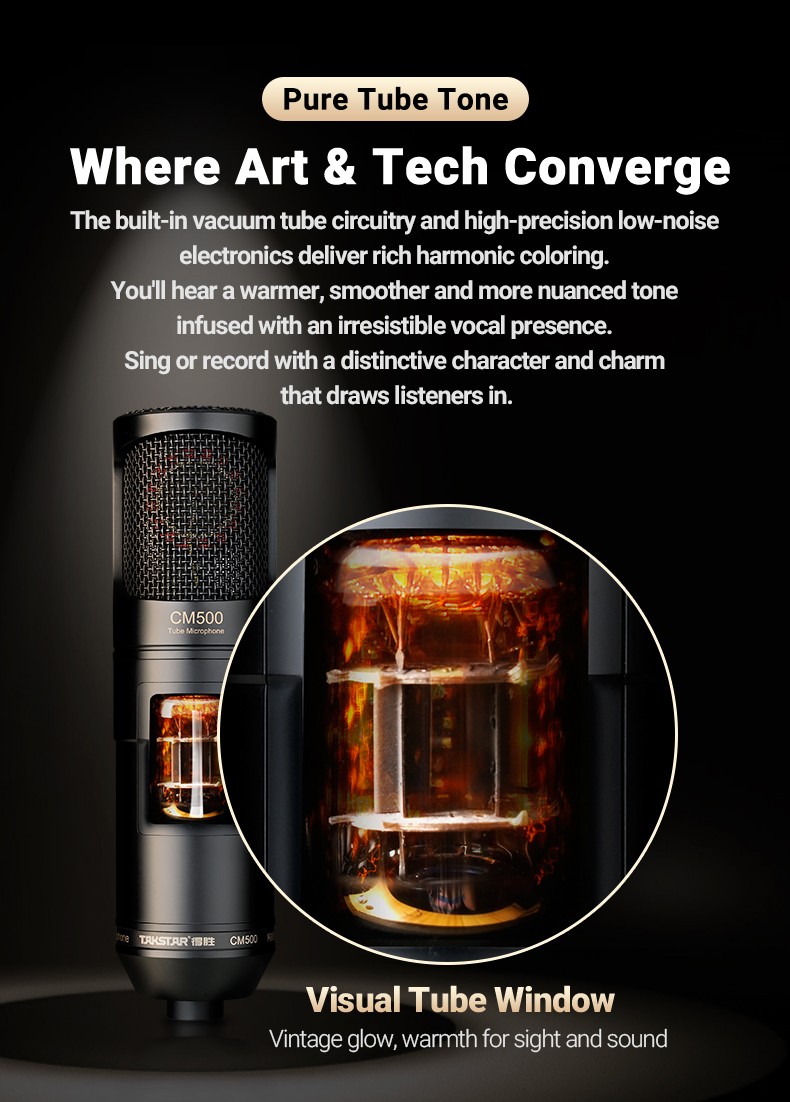

• State-of-the-art vacuum tube circuitry for warm, gentle, expressive sound.

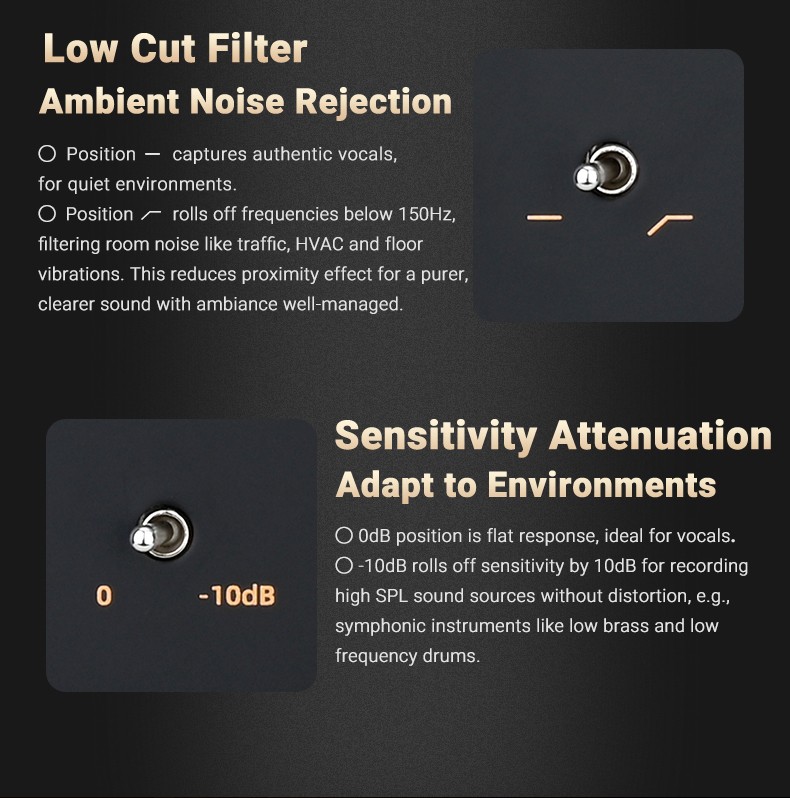

• Low cut switch to reduce ambient noise.

• Sensitivity attenuation switch to prevent distortion from high SPLs.

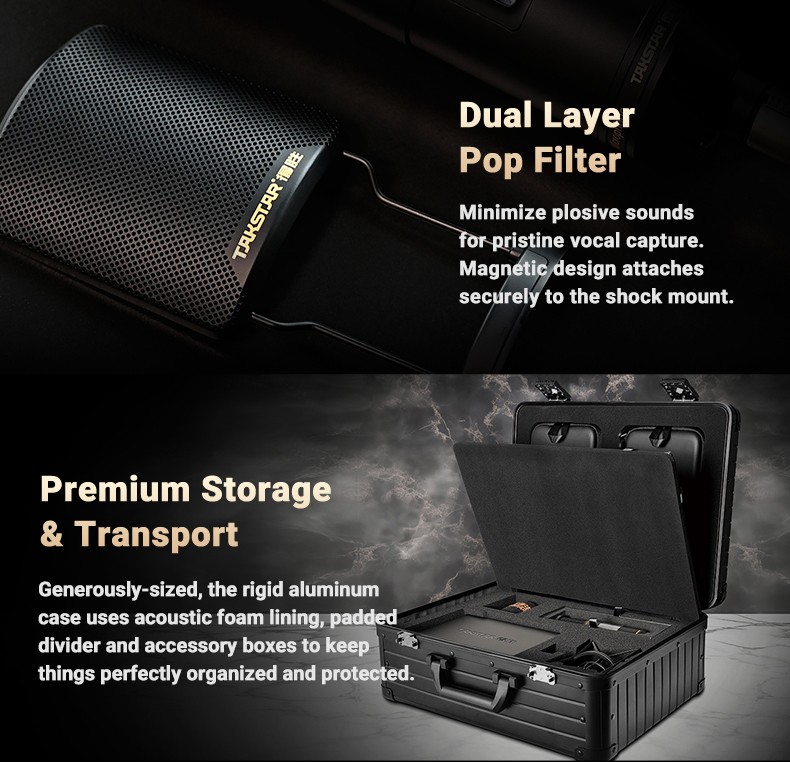

• Magnetic dual-layer metal pop filter eliminates plosives/airflow noise.

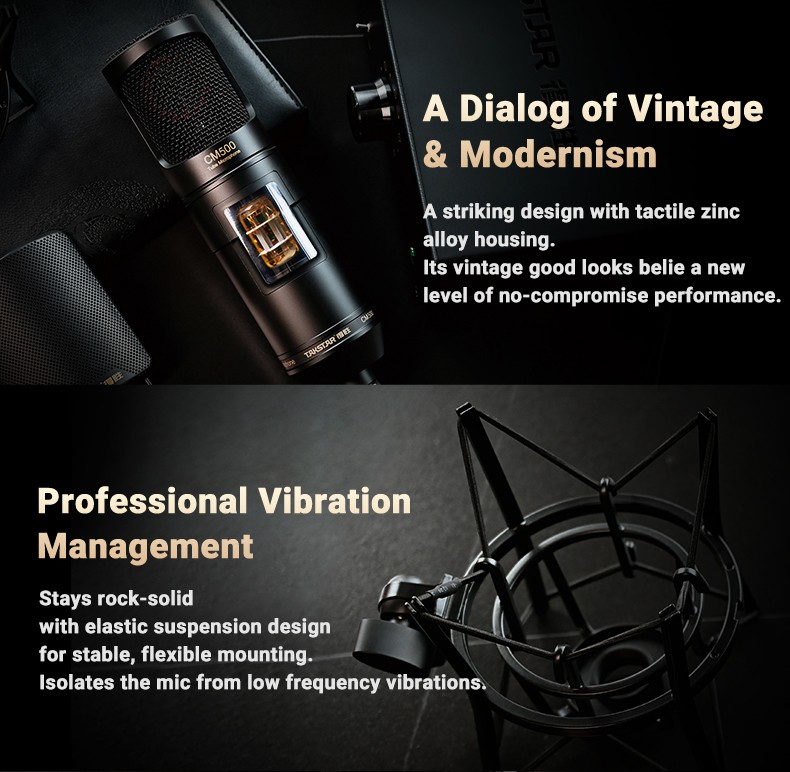

• Metal shock mount isolates vibration noise.

• Electronic tube window design for elegant aesthetics.

• Premium storage case protects and organizes for travel.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial

• Suitable for professional applications such as choir performances, stage shows, recording studios, and dubbing for film and television.

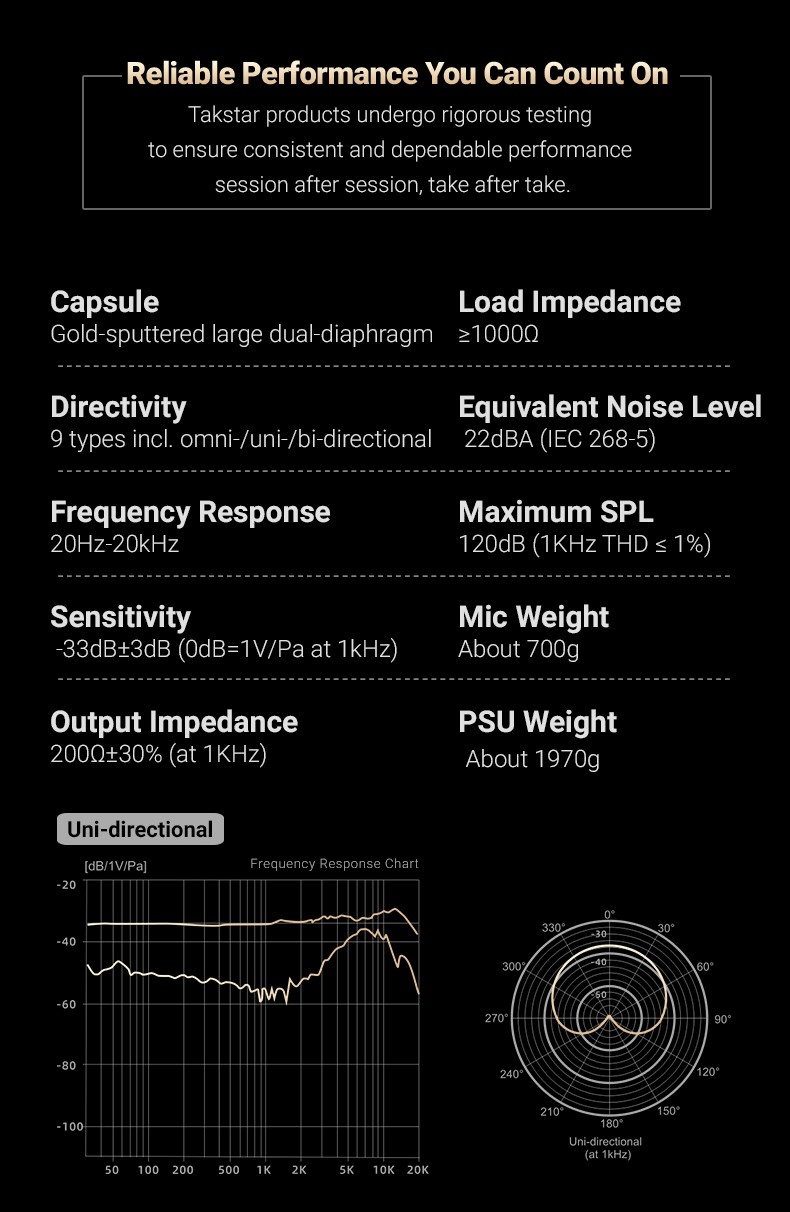

• Capsule: dual-side gold-plated large diaphragm capsule

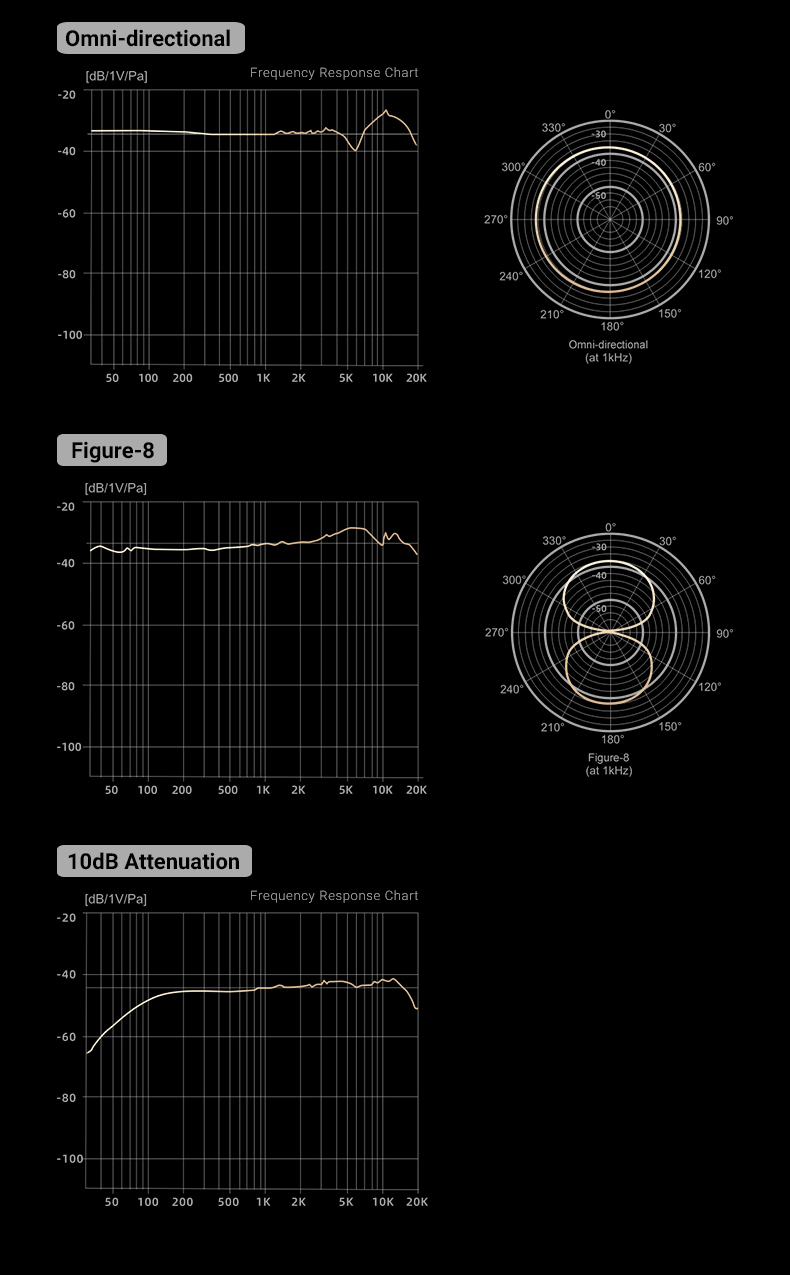

• Directivity: 9 types incl. omni-/uni-/bi-directional
• Frequency Response: 20Hz-20kHz
• Sensitivity: -33dB±3dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 200Ω±30% (at 1KHz)
• Load Impedance: ≥1000Ω
• Equivalent Noise Level: 22dBA (IEC 268-5)
• Maximum SPL: 120dB (1KHz THD ≤ 1%)
• Mic Weight: about 700g
• PSU Weight: about 1970g
Note: The above data are measured by Takstar laboratory which has the final interpretation right!

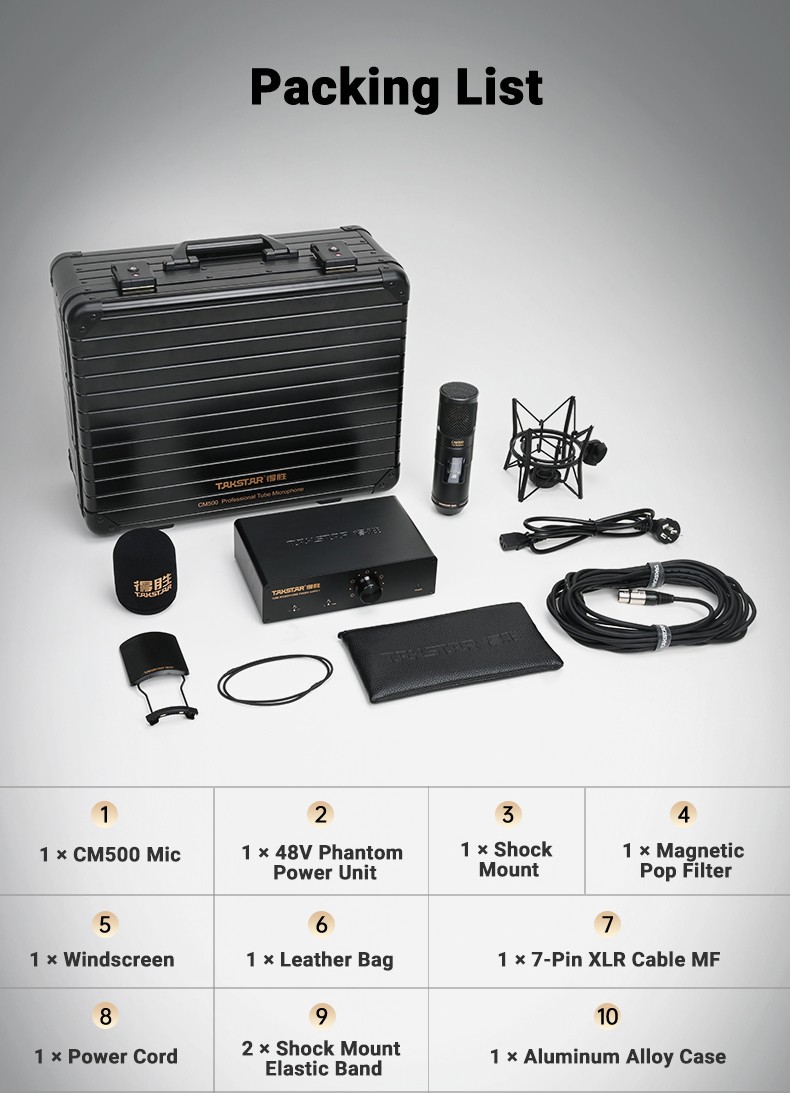

• CM500 Microphone	1 PC
• Magnetic Pop Filter	1 PC
• 7-Pin Male-to-Female XLR Cable	1 PC
• Leather Box	2 PC
• Aluminum Alloy Case	1 PC
• User Manual	1 PC
• Power Cord	1 PC
• Shock Mount Elastic Band	2 PC
• Windscreen	1 PC
• Leather Bag	1 PC
• 48V Phantom Power Supply Unit	1 PC
• Shock Mount	1 PC
