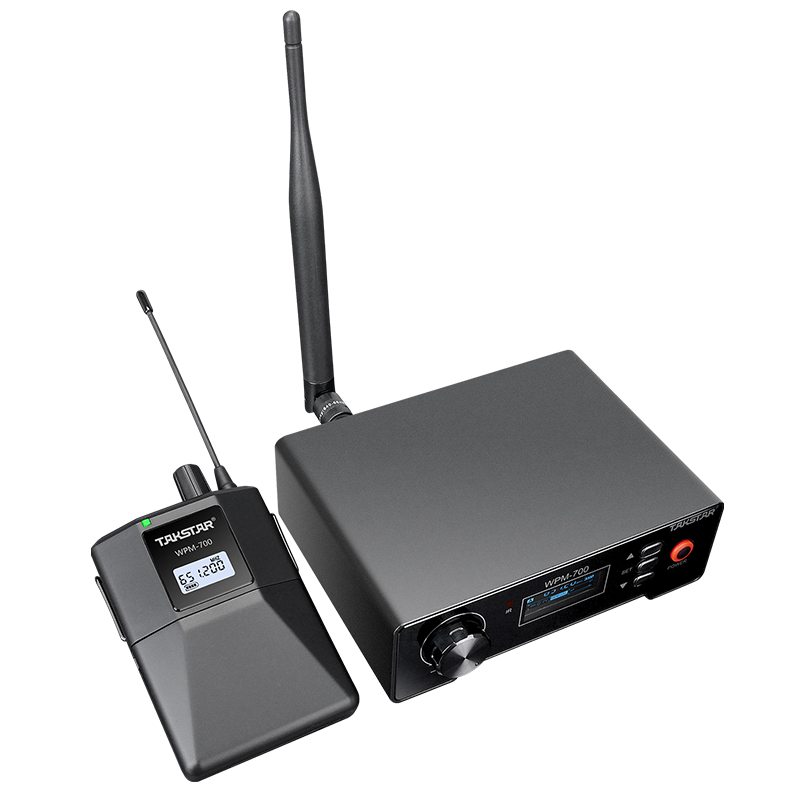

WPM-700 Wireless Monitor System
- Wireless Monitoring System
• Designed for livestream, instrument, and stage monitoring, as well as simultaneous interpretation.
• UHF modulation with GFSK ensures strong interference resistance and low power consumption.
• Supports 31 channels for simultaneous operation of multiple systems.
• Transmission range exceeds 100 meters in unobstructed environments.
• Distortion rate under 0.1% guarantees high-quality audio reproduction.
• One-button infrared sync for quick transmitter-receiver channel matching.
• Built-in lithium-ion battery in transmitter for over 12 hours of runtime.
• Local monitoring interface on transmitter for real-time audio checks.

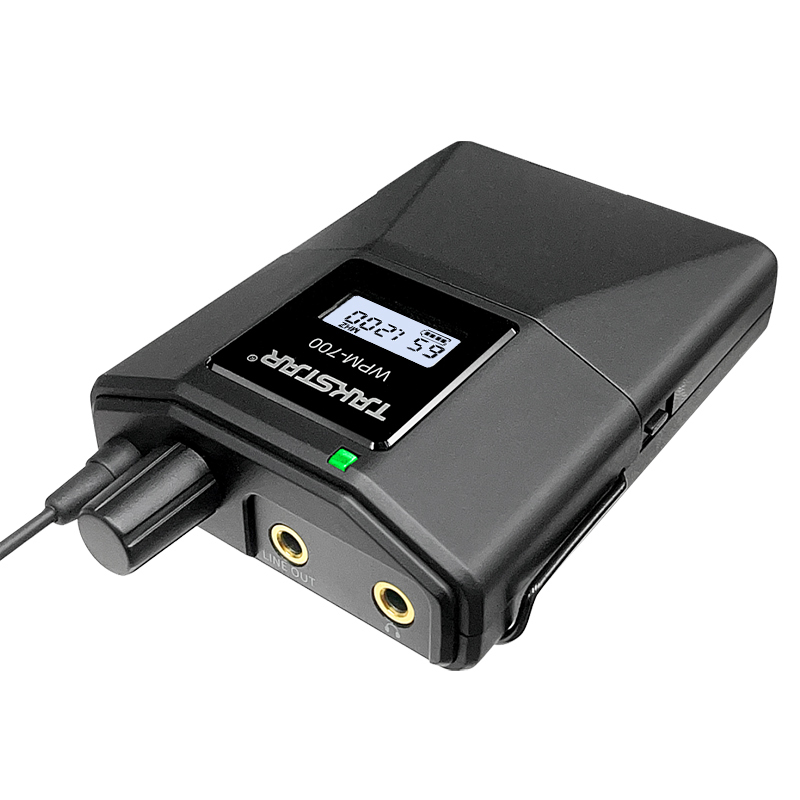

• Line output on receiver for easy connection to mixers and external audio devices.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• For livestream, instrument, and stage monitoring, as well as simultaneous interpretation.
Overall System • Carrier Frequency Range: 640-664MHz • Number of Wireless Channels: 31 • Modulation Type: GFSK • Frequency Response: 20-20kHz • Maximum Power: 80mW • Rated Power: 50mW • Total Harmonic Distortion (THD): <0.1% • Separation: 75dB • Signal-to-Noise Ratio (SNR): 65dB • Dynamic Range: 95dB • Low/High Power Battery Life: 15/12 hours • Low/High Power Transmission Range: 100/150 meters (open area) • Input/Output Interface: 3.5mm Transmitter • Low/High Transmission Power: 11/16dBm • Low/High Operating Current: 130/180 ± 20mA • Battery Spec: 3.7V/2000mAh • Charging Method: USB 5V/1A Receiver • Sensitivity: <-95 dB • Battery Spec: Two DC 1.5V AA batteries • Low/High Operating Current: 250 mA ± 20mA Note: The above data are measured by Takstar laboratory which has the final interpretation right!
WPM-700 Set
| • Receiver | 1 PC |
| • Transmitter | 1 PC |
| • Antenna | 1 PC |
| • 3.5mm Audio Cable | 1 PC |
| • 6.35mm Adapter | 1 PC |
| • AA Battery | 2 PC |
| • Charging Cable | 1 PC |
| • User Manual | 1 PC |

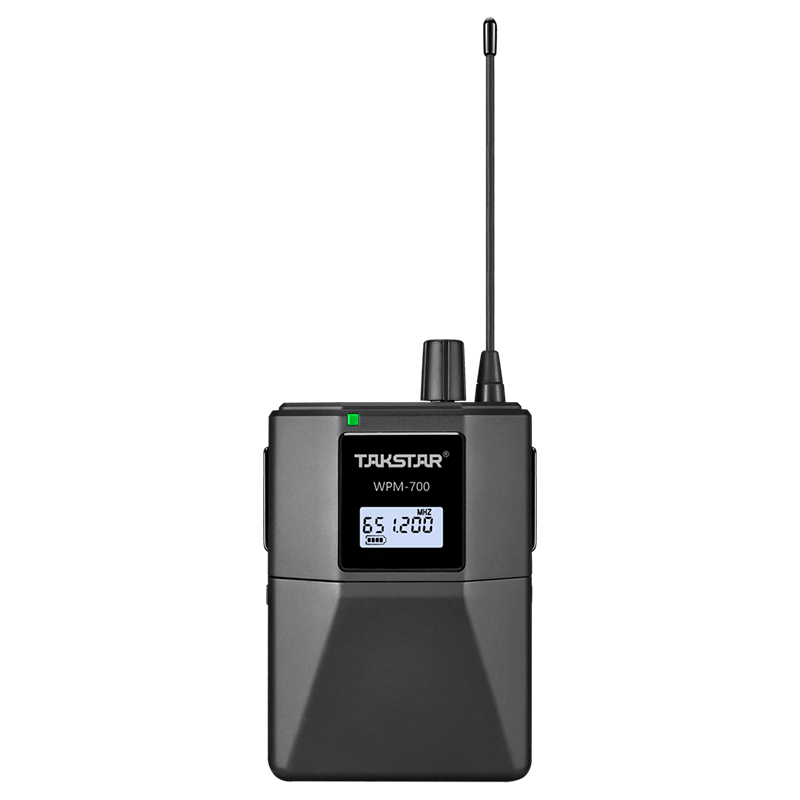

WPM-700R Receiver
| • Receiver | 1 PC |
| • AA Battery | 2 PC |
| • User Manual | 1 PC |
User manualWPM-700 Wireless Monitor System User Manual2025-08-14 14:48:03Download
User manualWPM-700
