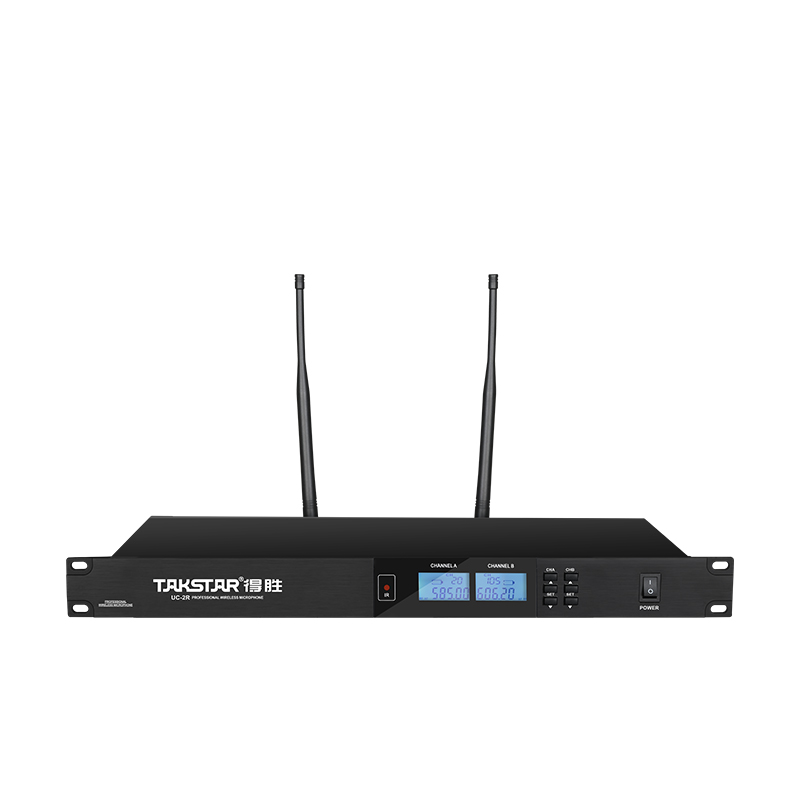

UC-2R Wireless Microphone
- Karaoke
- Conference & Speech
- Performance
- Wireless
• Microcomputer controlled system, featuring frequency selection, LCD display, frequency data processing and automatic channel scan.
• On-board LCD display makes it easier to track system status and modify system settings.
• Transmitter battery level meter on receiver LCD screen, with low-power alert function.
• The system applies a variety of anti-interference technologies, comes with multiple non-interfering frequency presets, convenient for using several systems together.
• XLR balanced outputs and 6.3 unbalanced outputs, for connecting different external devices.
• 1U rack-sized metal chassis, aluminum alloy panel, sturdy, isolating harmonic radiation.
Product Detail
Receiver (UC-2R/UC-4R) • Spurious Suppression: N50dB • Image Rejection: N50dB • Sensitivity: >25dBu (SIND=35dB) • Audio Output Level: balanced output (XLR output jack): 250mV/600Q unbalanced output (1/4" output jack): 400mV/3KΩ • Working Voltage: DC 12V; Working Current: 350mA • Chassis Size: 480 (W) X 190 (D) X 45 (H) mm Transmitter (UC-TH1/UC-TH2/UC-TL/UC-TP/UC-TD) • RF Power Output: 30mW max • Oscillation Mode: PLL (digital frequency synthesizer) • Transmission Frequency Stability: <30ppm • Dynamic Range: ≥50dB(A) • Frequency Response: 80Hz-18KHz • Max Input SPL: 130dBSPL • Handheld Mic Capsule: dynamic • Bodypack/Conference Mic Capsule: condenser • Power Supply: 2PCS AA alkaline batteries (expected use time is about 8hrs) Overall System Parameters • Frequency Range: 580-630MHz • Frequency Bandwidth: 60MHz • Modulation Method: FM • Max Frequency Deviation: ±45KHz • Frequency Response: 80Hz-18KHz • Signal-To-Noise Ratio (S/N): >50dB • Distortion 1kHz：<0.5% • Operating Temperature: TOP ~ 55°C • Working Distance: 100 meters (under ideal conditions) • Power Consumption: 8W • Static Power: 3W Transmitter (UC-TH1/UC-TH2/UC-TL/UC-TP/UC-TD) Note: The above data is measured by Takstar laboratory
• For karaoke, performance, conference, program host, speech, outdoor activity
UC-2R
| • Receiver | 1PCS |
| • Audio Cable | 1PCS |
| • Power Adapter | 1PCS |
| • Antenna | 2PCS |
| • User Manual | 1PCS |
UC-TD (optional)
| • Handheld Transmitter | 1PCS |
| • 1.5V AA Battery | 2PCS |
UC-TL (optional)
| • Bodypack Transmitter | 1PCS |
| • Headset Mic | 1PCS |
| • 1.5V AA Battery | 2PCS |
UC-TP (optional)
| • Bodypack Transmitter | 1PCS |
| • Lavalier Mic | 1PCS |
| • 1.5V AA Battery | 2PCS |
UC-TH1 (optional)
| • Conference Mic Base | 1PCS |
| • Gooseneck Mic | 1PCS |
| • 1.5V AA Battery | 2PCS |
UC-TH2 (optional)
| • Conference Mic Base | 1PCS |
| • Short Stem (Rectangular) Mic | 1PCS |
| • 1.5V AA Battery | 2PCS |
