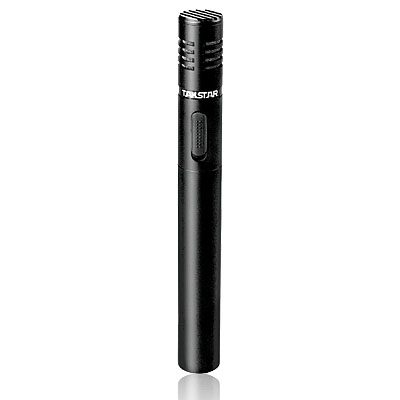

PCM-5100 Instrument Condenser Microphone

  • Instrument
  • Wired
  • Hanging
  • Cardioid
  • Condenser
  • Can handle high volume level

  • Rugged metal housing

  • High sensitivity, wide dynamic range and low distortion

  • Built-in transistor amplifier

  • On/off switch for convenient control

  • Powered by batteries or phantom power supply

  • Multiple surface treatments for durability

Product Detail

  • Specification
  • Application
• Transducer Principle: Back Electret Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 50Hz-18kHz
• Sensitivity: -42dB±3dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 250Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Max. Input SPL: 136dB (THD ≤1.0% at 1kHz)
• Power Requirements: 9-52V DC Phantom Power or 1.5V Battery
Cymbals, piano, strings, ensembles
  • Specification
  • Application
• Transducer Principle: Back Electret Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 50Hz-18kHz
• Sensitivity: -42dB±3dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 250Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Max. Input SPL: 136dB (THD ≤1.0% at 1kHz)
• Power Requirements: 9-52V DC Phantom Power or 1.5V Battery
Cymbals, piano, strings, ensembles
