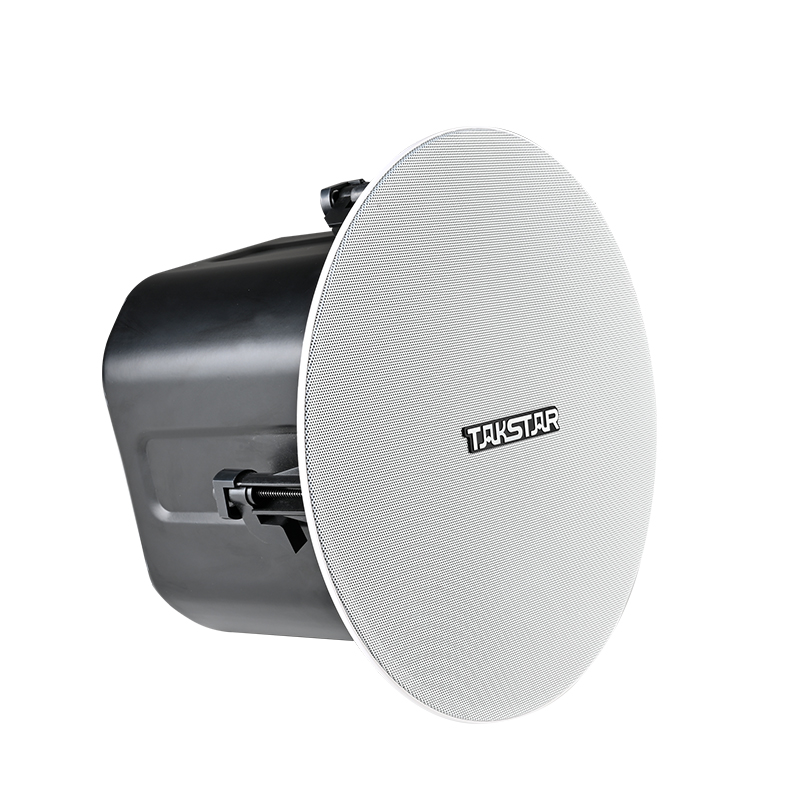

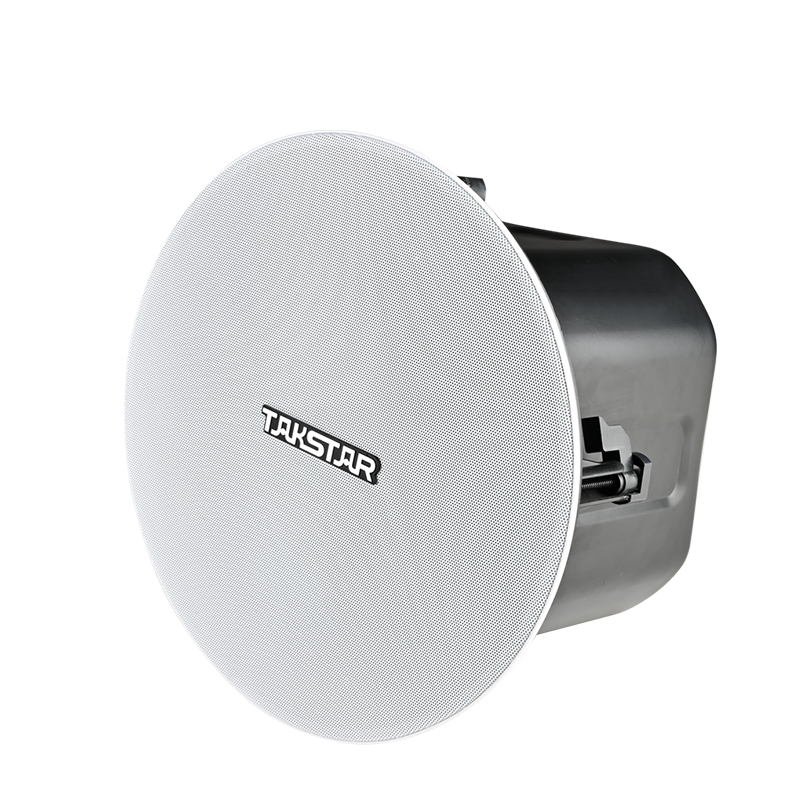

EBS-630A Fixed-Impedance/Voltage Ceiling Speaker
- PA System
- EBS Series

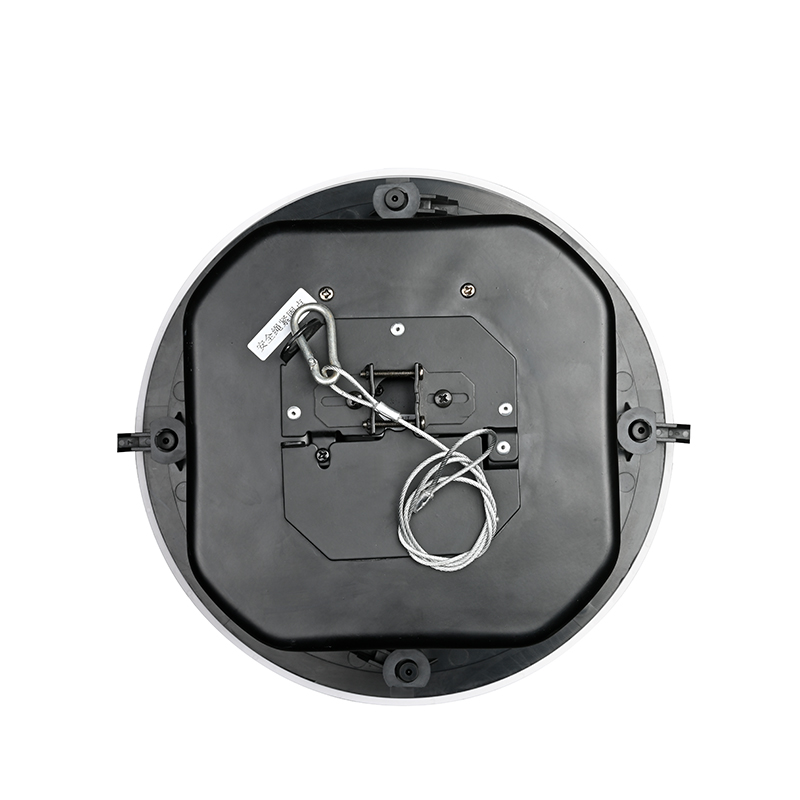

• Professional, passive, two-way, full-range, fixed-impedance/voltage ceiling speaker that can be embedded or suspended. Utilizes ABS panel + metal cabinet, all-weather-proof material against moisture, water, and UV.

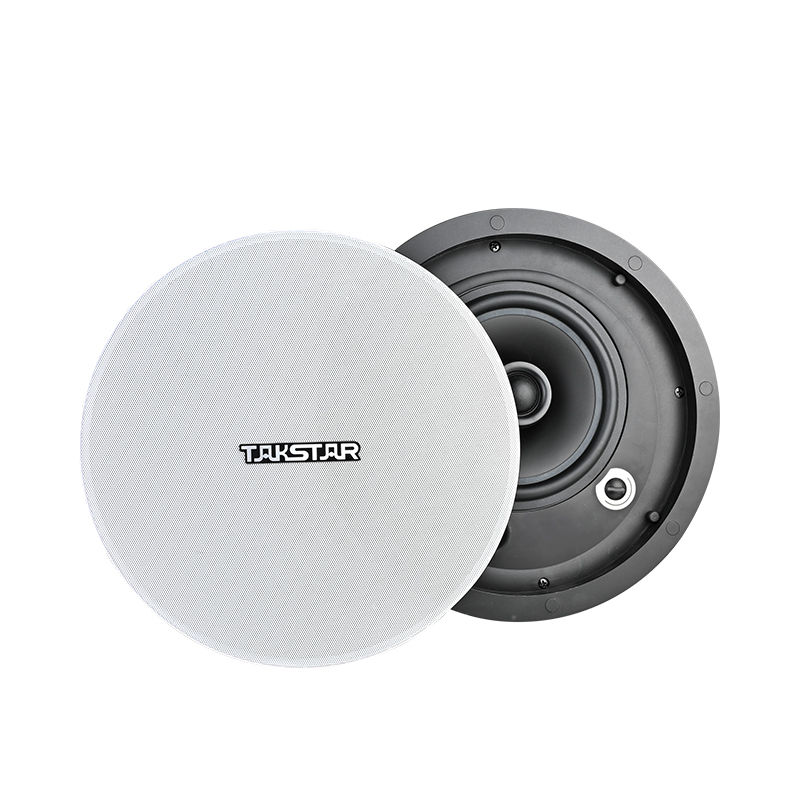

• One 6.5" woofer with moisture/water-proof composite diaphragm, and 1" silk-dome tweeter with adjustable angle, producing rich mids, delicate highs and an overall warm sound. Popular borderless design and magnetic grille, extremely easy for installation and removal.
Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• BGM in hotel/restaurant/building/conference center.
• Rated Power: 80W (AES) • Rated Impedance: 8Ω • Rated Voltage Power: 70V (80/60/40/20/10W) / 100V (80/60/40/20W) (AES) • Frequency Response (±3dB): 70Hz-20kHz • Sensitivity (1W/1M): 87dB • Coverage Angle: H110*V110° • Max SPL: 103dB • Crossover: two-way, passive • Crossover Frequency: 3000Hz • Installation Method: embedded/suspended • Cut-out Size: ø246mm circle • Installation Depth: 176mm • Connection: phoenix plug • Finish: black • HF: 1" tweeter with silk dome, Ndmagnet, rotatable angle • LF: 6.5" * 1 driver (25mm voice coil)with 80mm magnet, (PP) compositecone + NBR surround. • Dimensions: ø278mm*H176mm • Net Weight: 3.3Kg
| • EBS-630A | 1 PC |
| • User Manual | 1 PC |
User manualEBS-630A Fixed-Impedance/Voltage Ceiling Speaker User Manual2026-10-20 11:22:05Download
User manualEBS-630A
