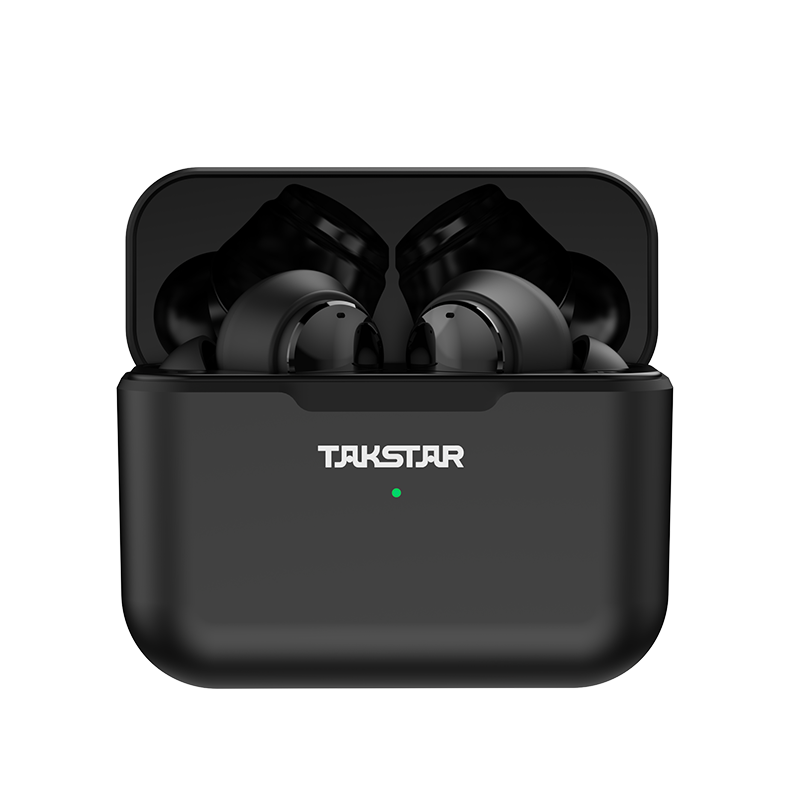

WPM-420 Wireless Monitor Headphones
- Wireless
- In-ear
- Monitoring
• True wireless monitor headphones are designed for live streaming and recording monitoring.

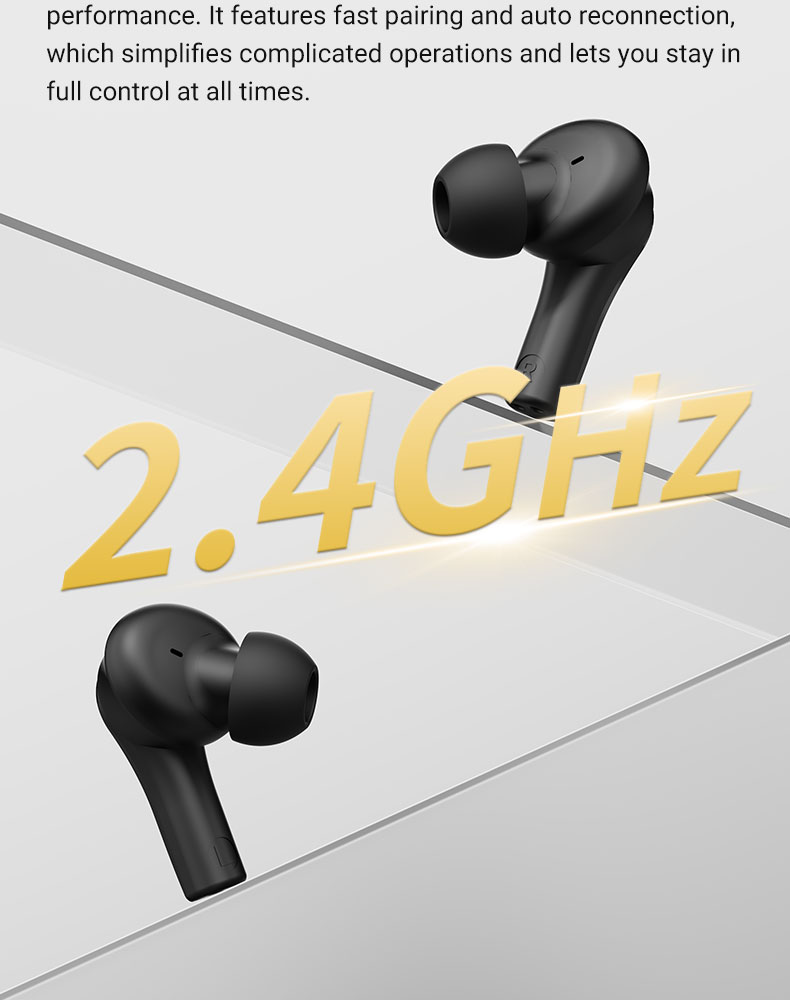

• 2.4G wireless tech features fast pairing, auto-reconnect and approx. 12m range.

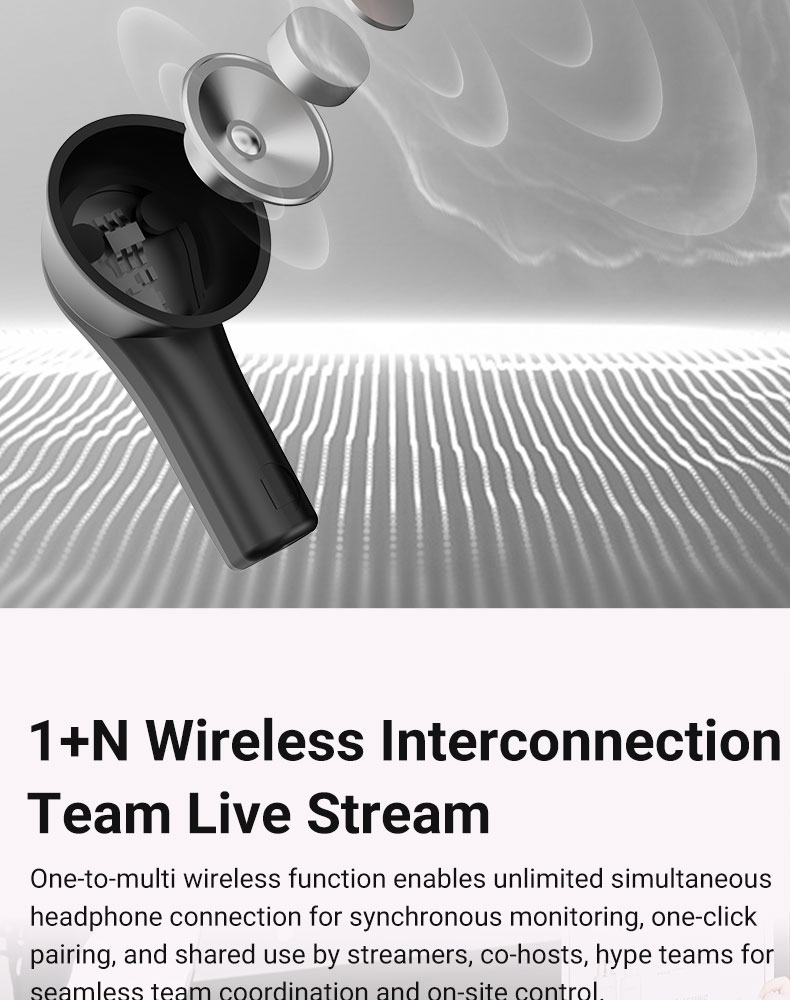

• Multi-headphone sync monitoring, one-touch pairing and multi-user sharing.
• Ultra-low latency at pro recording monitoring level and audio-video sync ensure smoother live interaction.

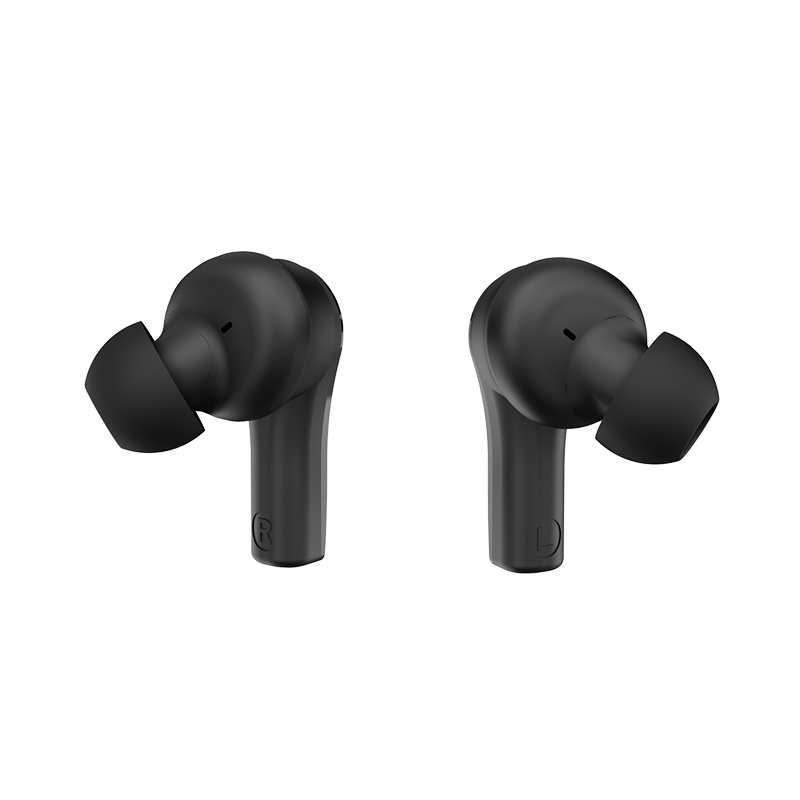

• Compact, lightweight and comfortable in-ear design.

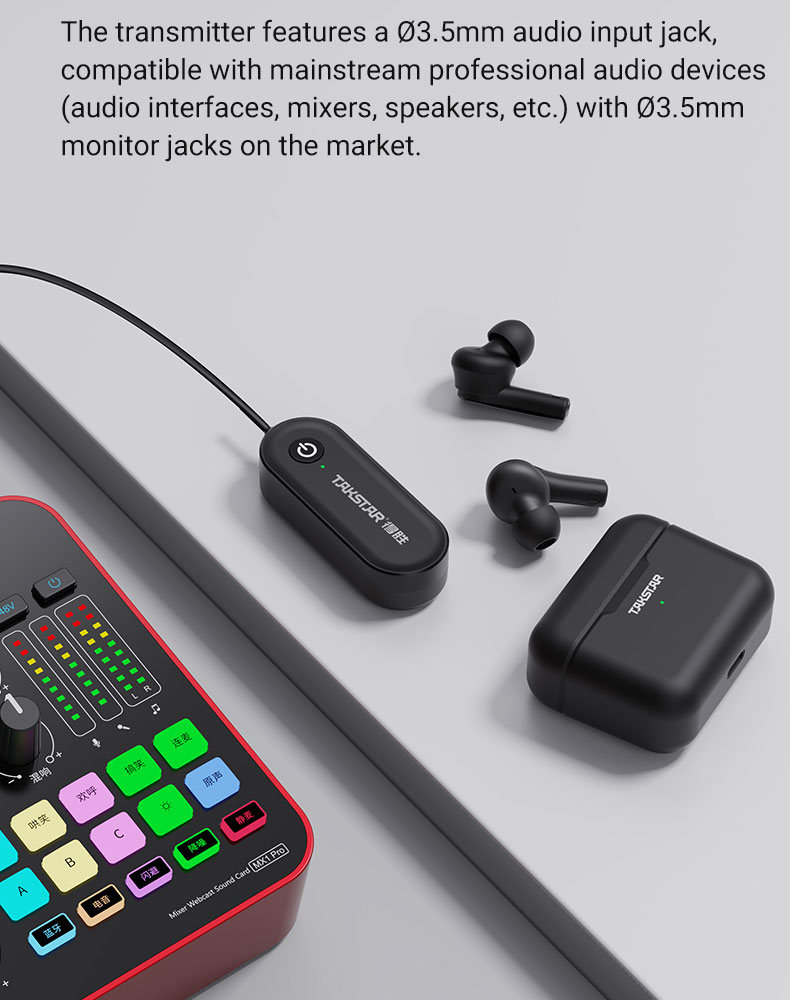

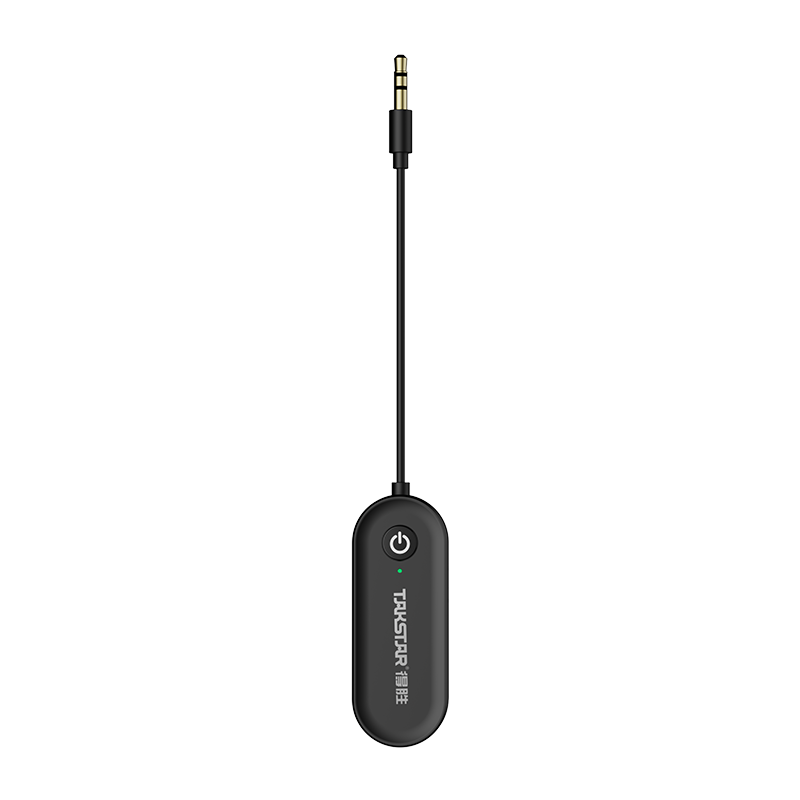

• Φ3.5mm input (transmitter) allows easy connection to sound cards, mixers, etc.

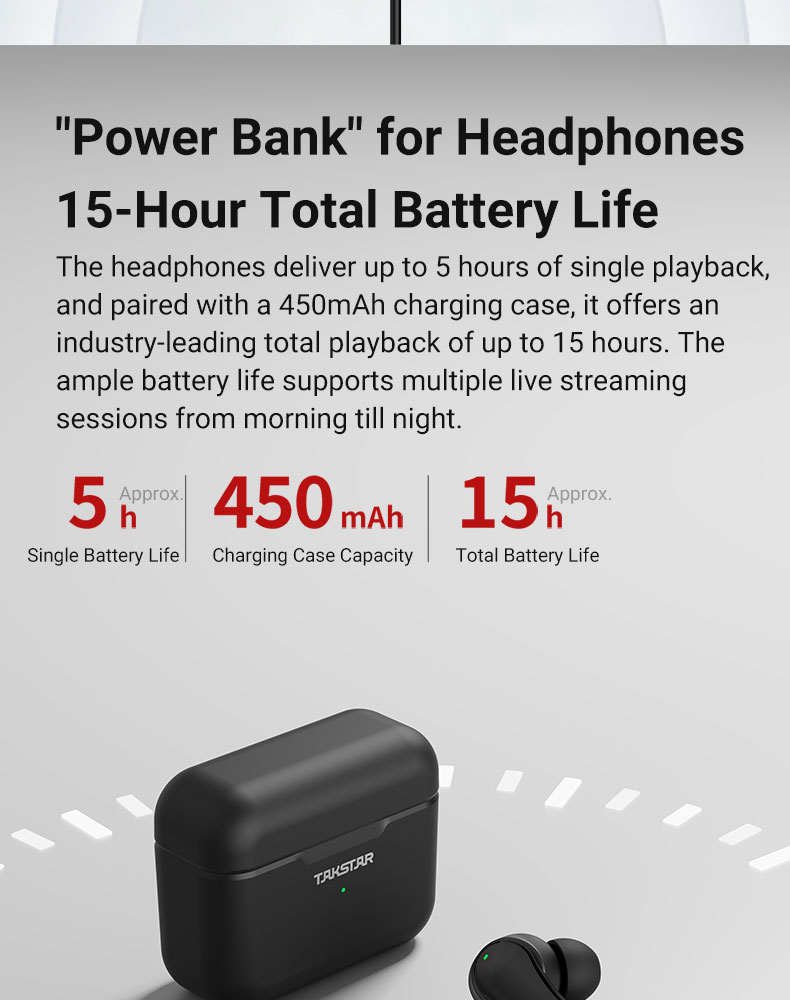

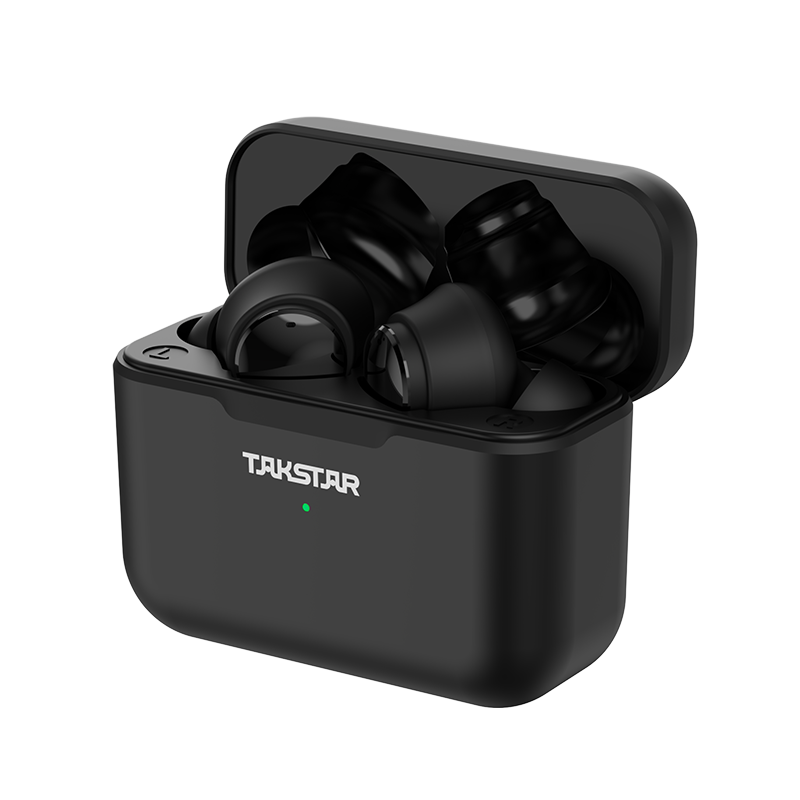

• Built-in lithium battery offers approx. 15h of usage time with the charging case.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Suitable for live streaming monitoring, recording monitoring, and other scenarios.

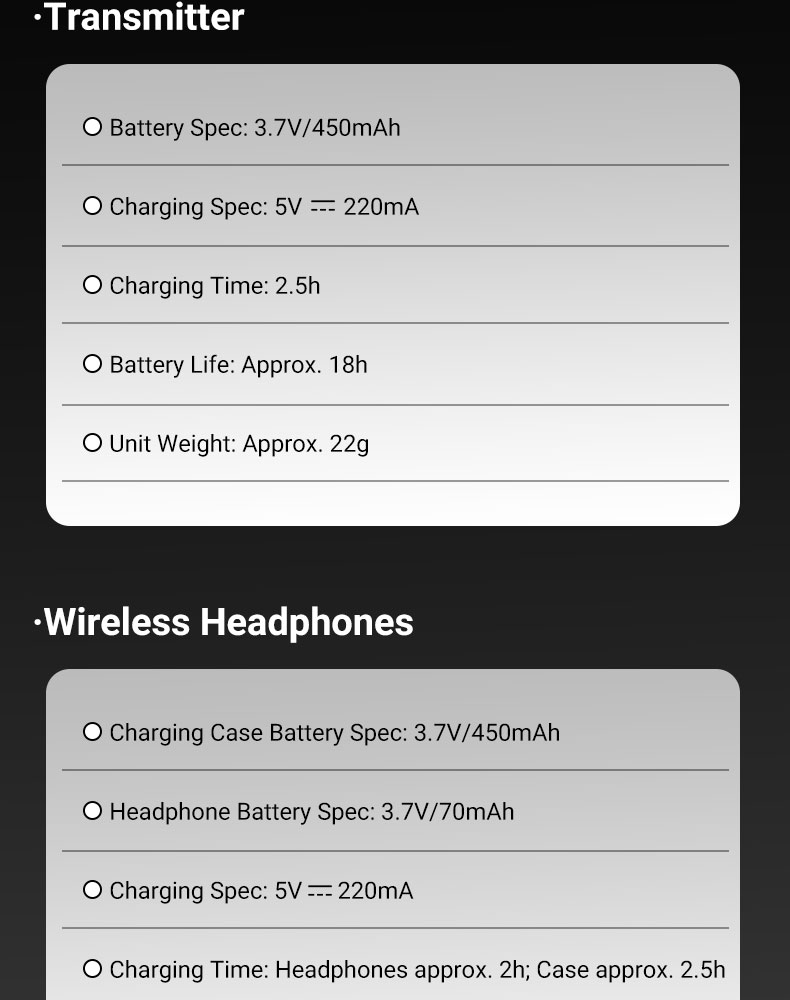

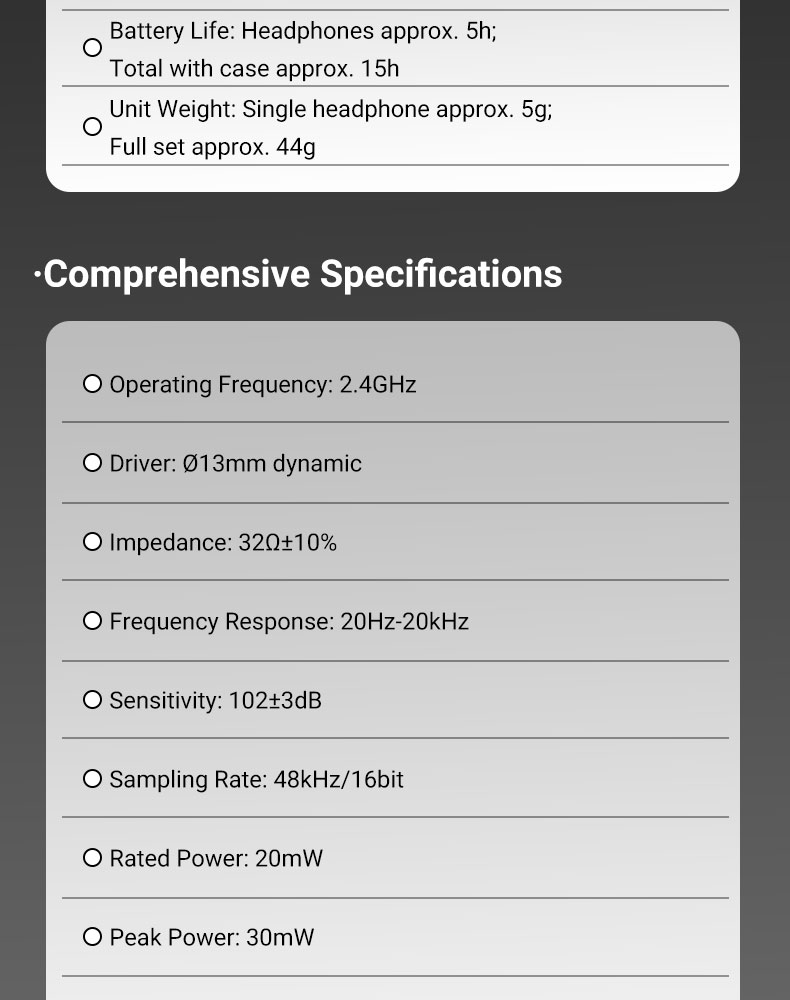

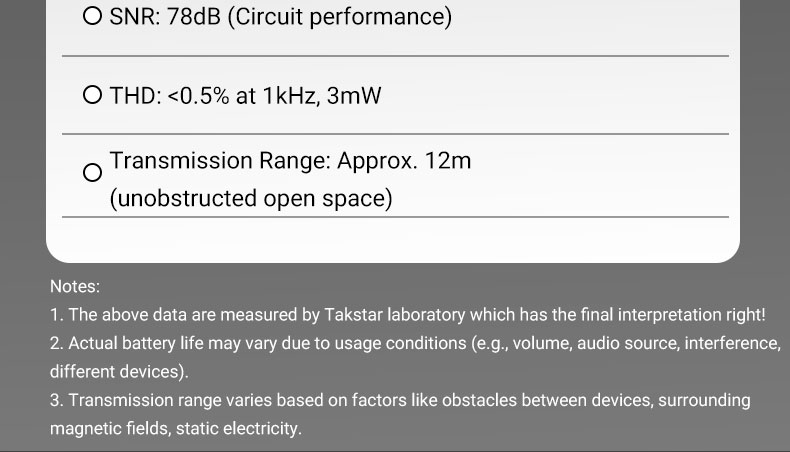

Wireless Headphones • Charging Case Battery Spec: 3.7V/450mAh • Headphone Battery Spec: 3.7V/70mAh • Charging Spec: 5V⎓220mA • Charging Time: Headphones approx. 2h; Case approx. 2.5h • Battery Life: Headphones approx. 5h; Total with case approx. 15h • Unit Weight: Single Headphone approx. 5g; Full set approx. 44g Transmitter • Battery Spec: 3.7V/450mAh • Charging Spec: 5V⎓220mA • Charging Time: Approx. 2.5h • Battery Life: Approx. 18h • Unit Weight: Approx. 25g Comprehensive Specifications • Operating Frequency: 2.4GHz • Driver: Ø13mm dynamic • Impedance: 32Ω±10% • Frequency Response: 20Hz-20kHz • Sensitivity: 102±3dB • Sampling Rate: 48kHz/16bit • Rated Power: 20mW • Peak Power: 30mW • SNR: 78dB (Circuit performance) • THD: <0.5% at 1kHz, 3mW • Transmission Range: Approx. 12m(unobstructed open space) Notes: 1. The above data are measured by Takstar laboratory which has the final interpretation right! 2. Actual battery life may vary due to usage conditions (e.g., volume, audio source, interference, different devices). 3. Transmission range varies based on factors like obstacles between devices, surrounding magnetic fields, static electricity.

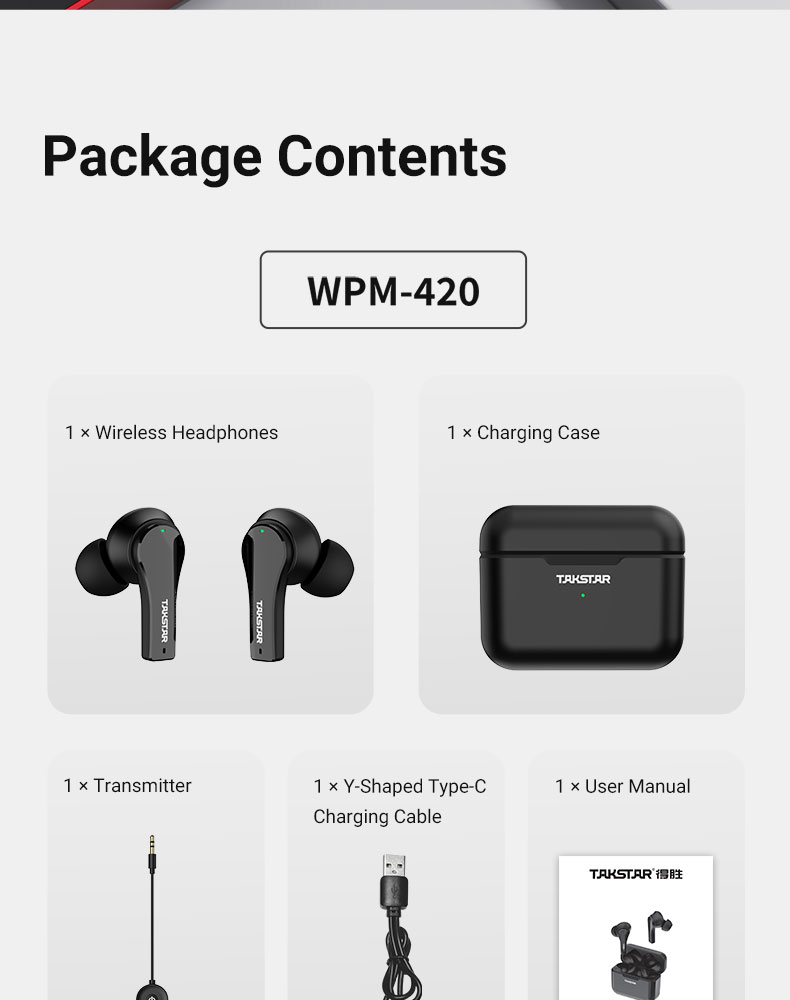

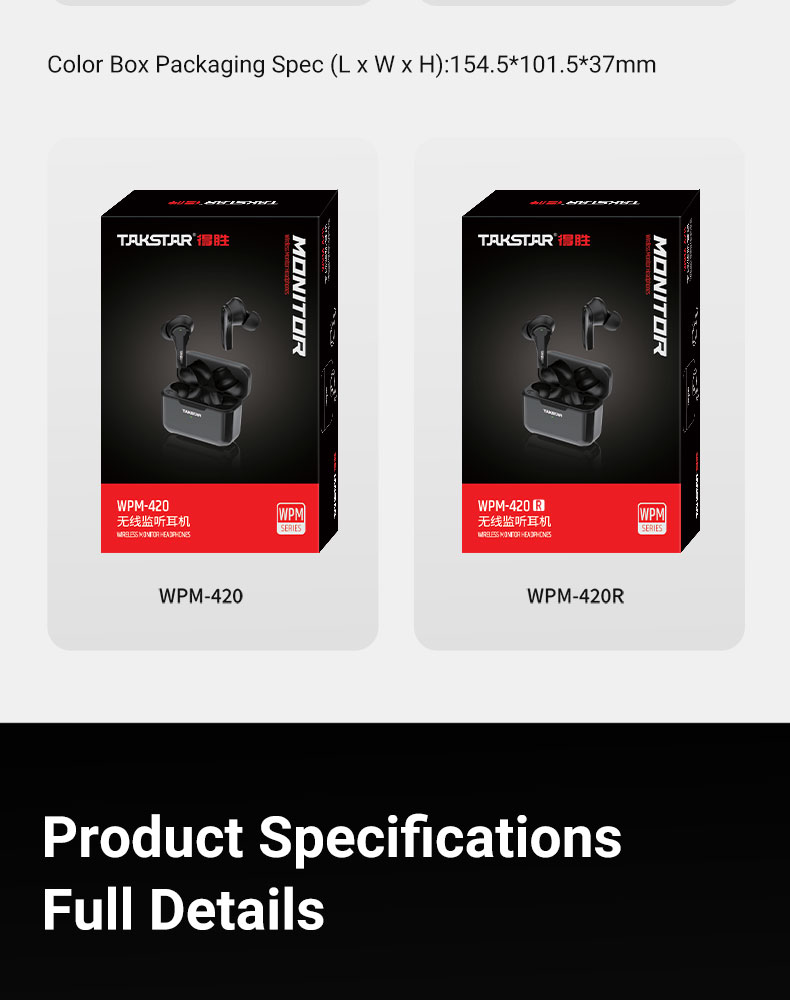

| WPM-420 Wireless Monitor Headphones | |
| • Wireless Headphones | 1 PC |
| • Y-Shaped Type-C Charging Cable | 1 PC |
| • Charging Case | 1 PC |
| • User Manual | 1 PC |
| • Transmitter | 1 PC |

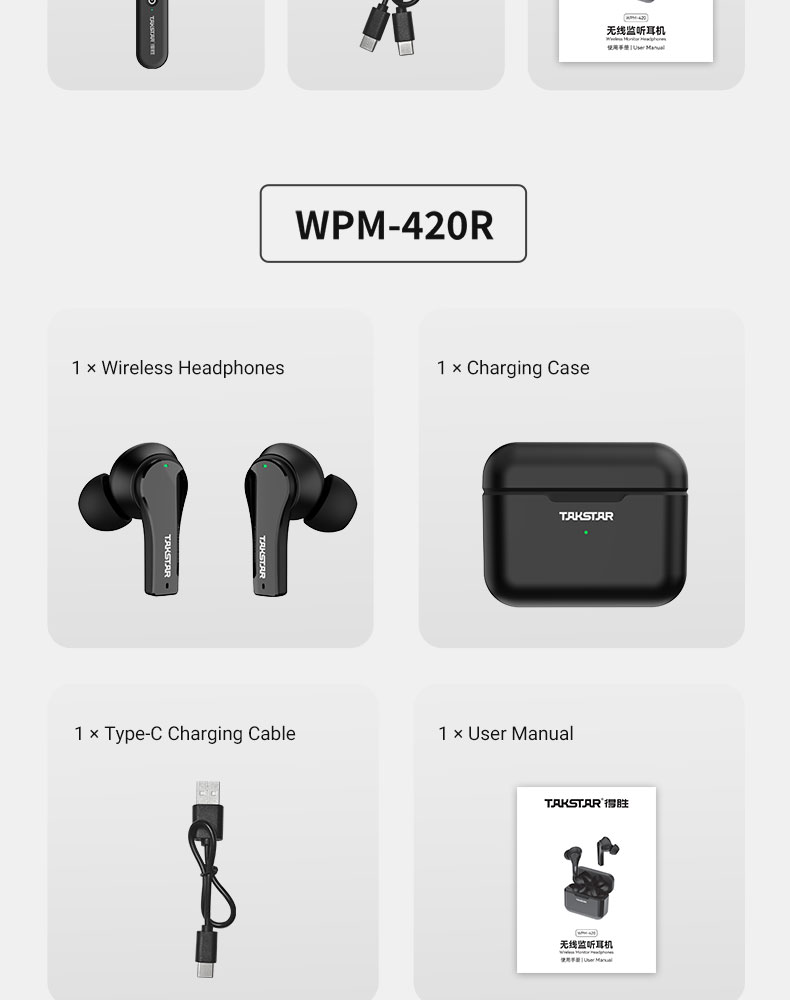

| WPM-420R Wireless Monitor Headphones | |
| • Wireless Headphones | 1 PC |
| • Type-C Charging Cable | 1 PC |
| • Charging Case | 1 PC |
| • User Manual | 1 PC |
User manualWPM-420 Wireless Monitor Headphones User Manual2026-03-25 11:25:44Download
