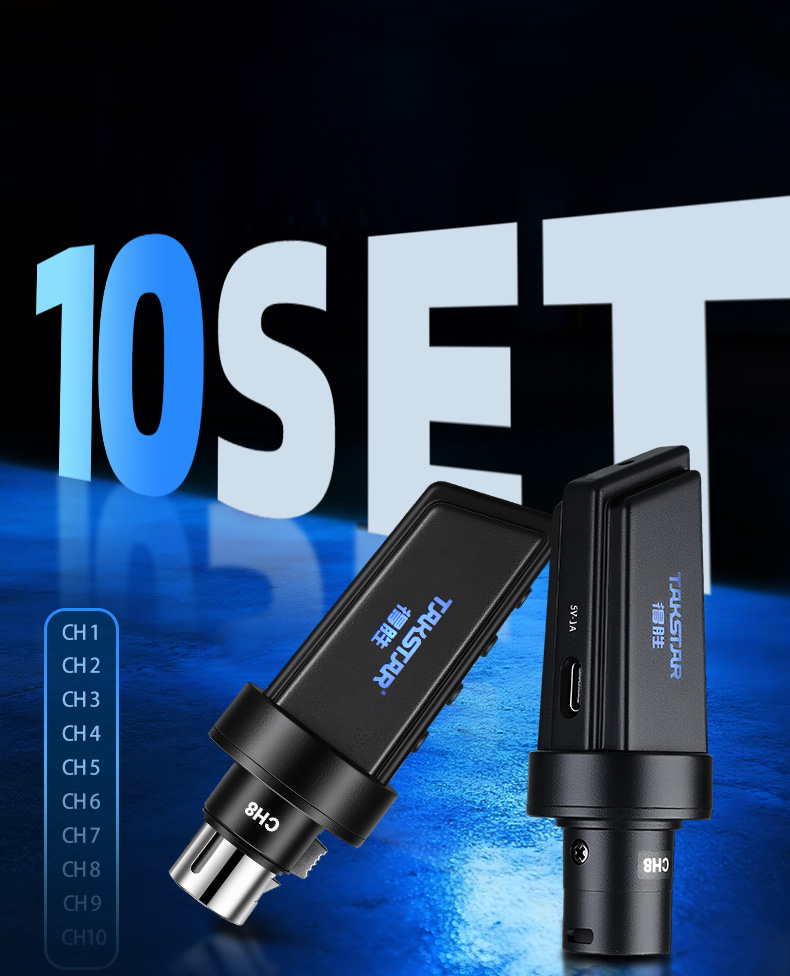

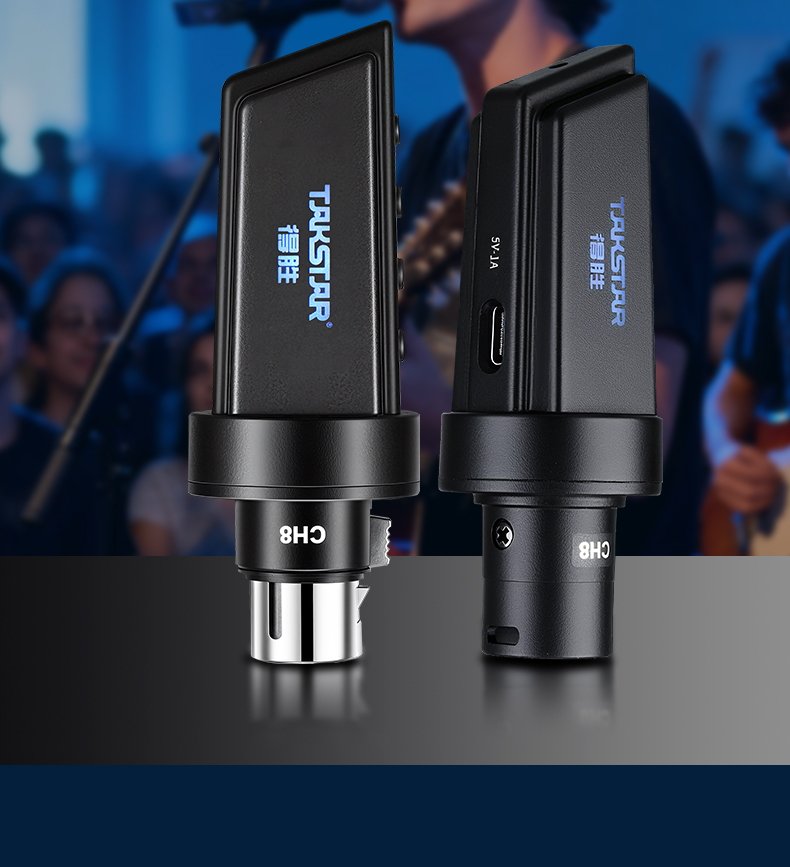

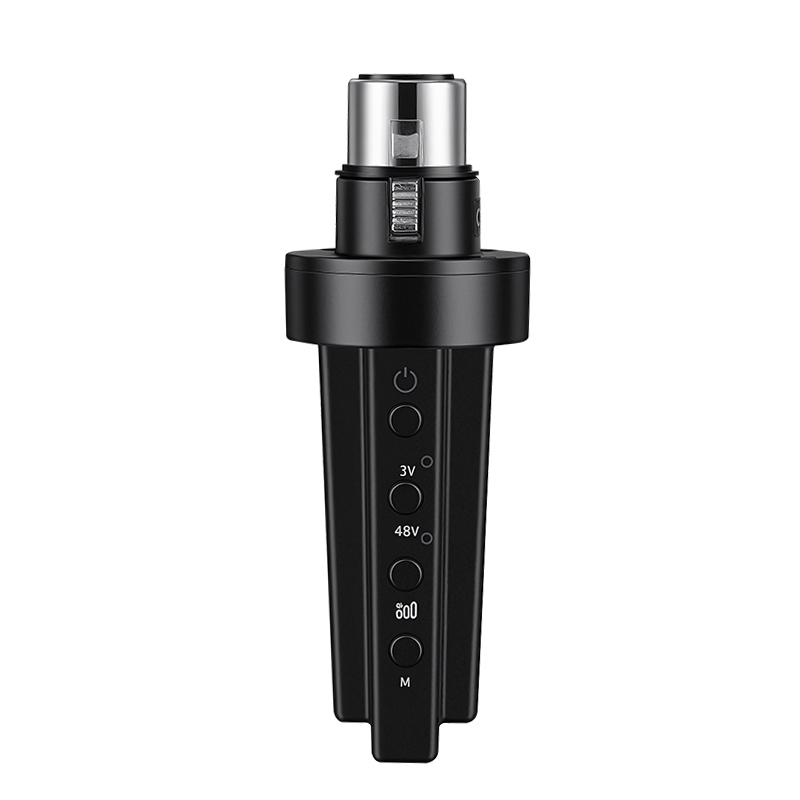

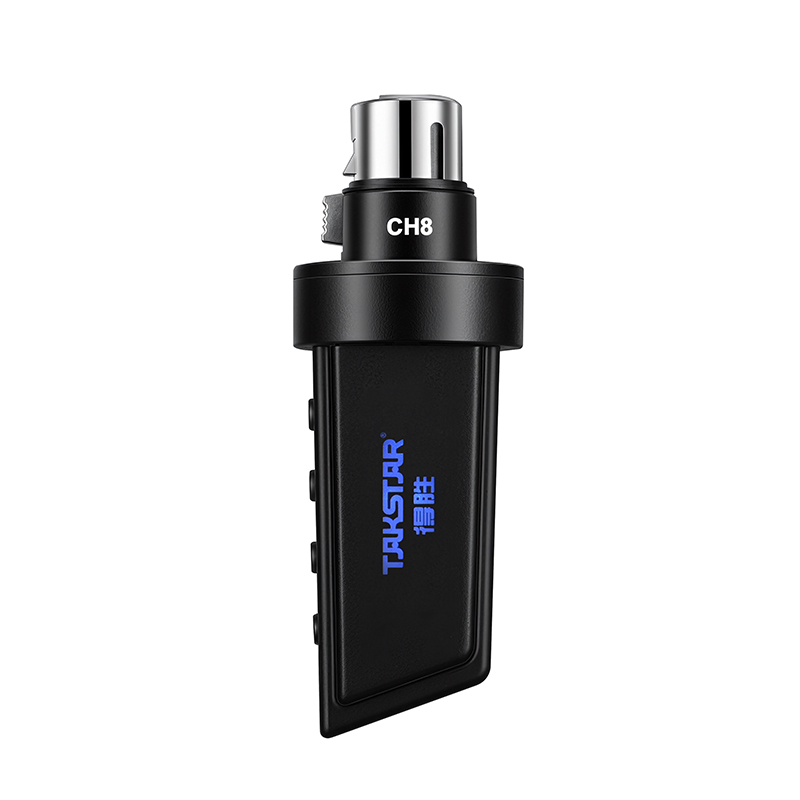

SF-M1 Wireless Microphone Transceiver

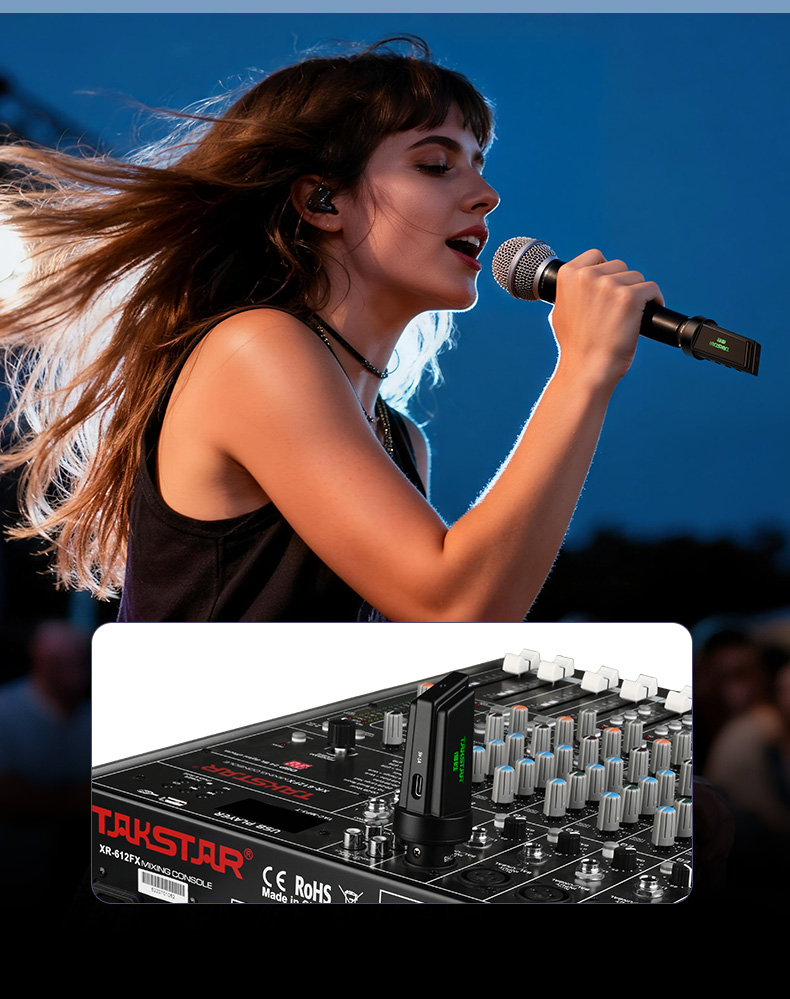

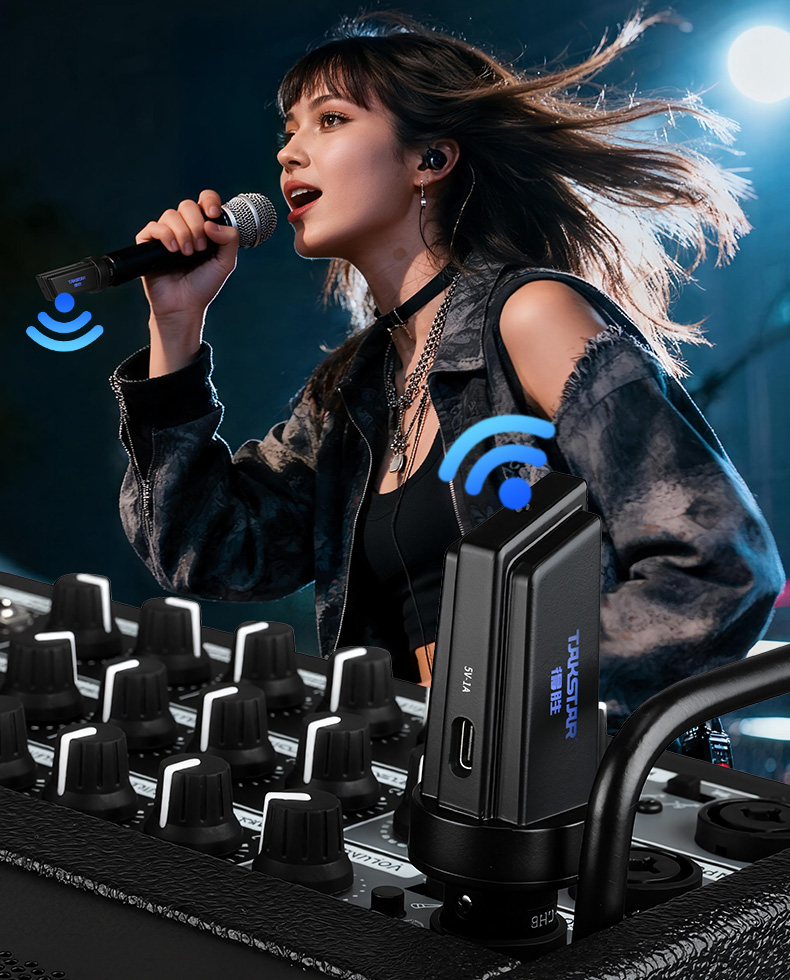

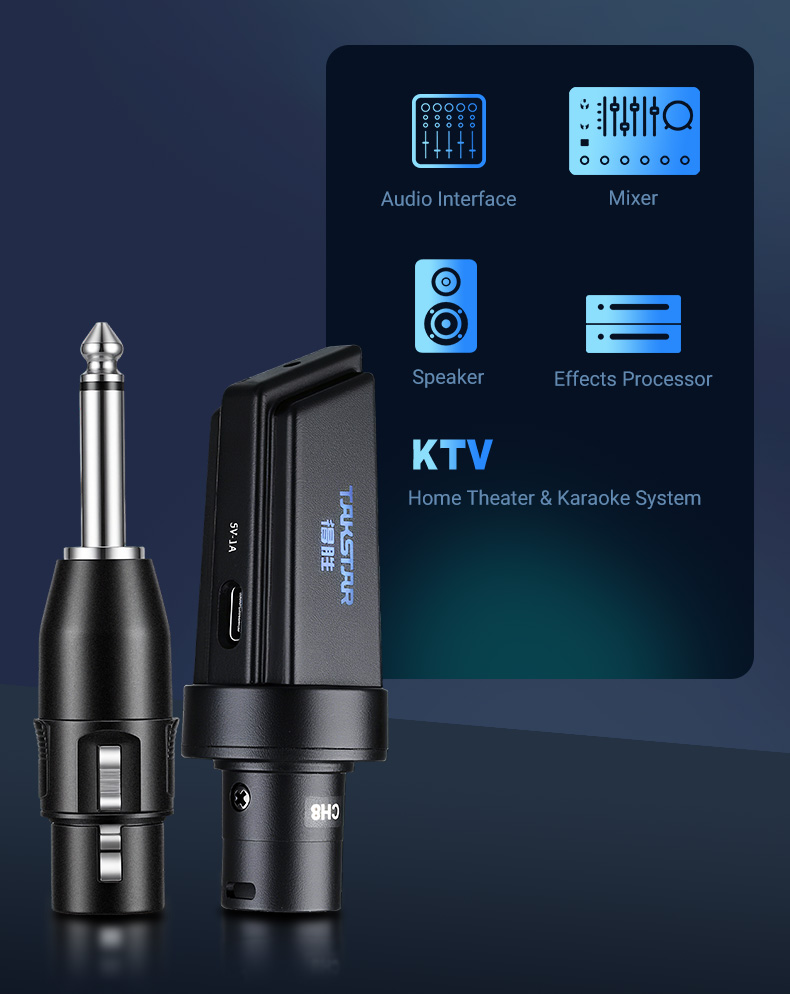

• Wireless plug-on XLR mic adapter system designed to eliminate wired hassles.

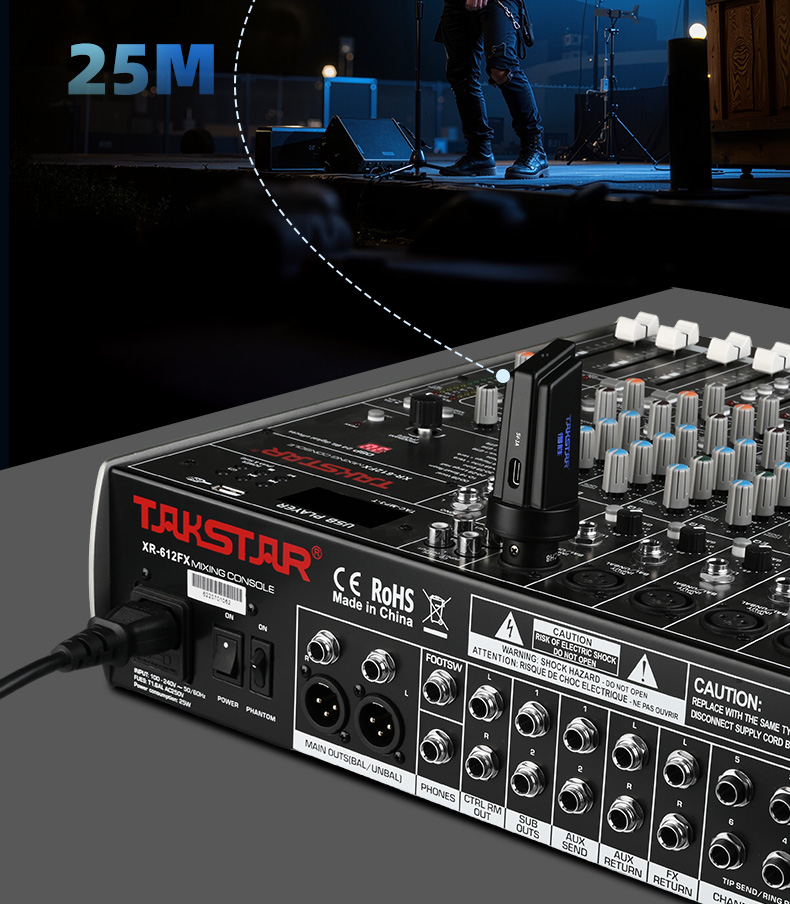

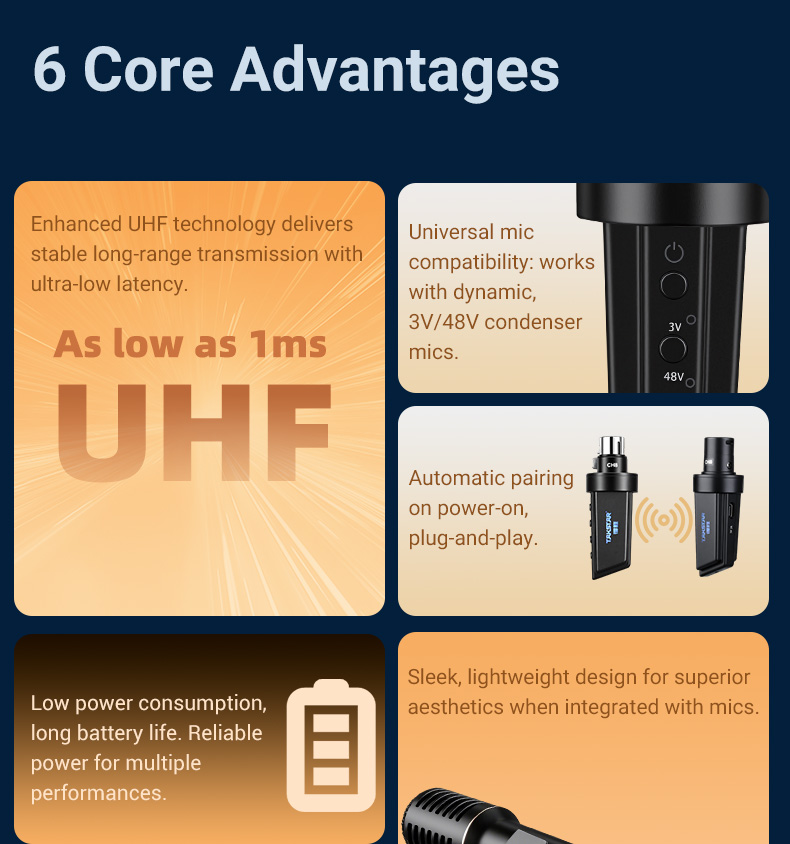

• UHF low-power tech, interference-resistant. Up to 25m or 15m range in high or low power mode.
• Pre-paired at factory, ready-to-use, and easy-to-operate.

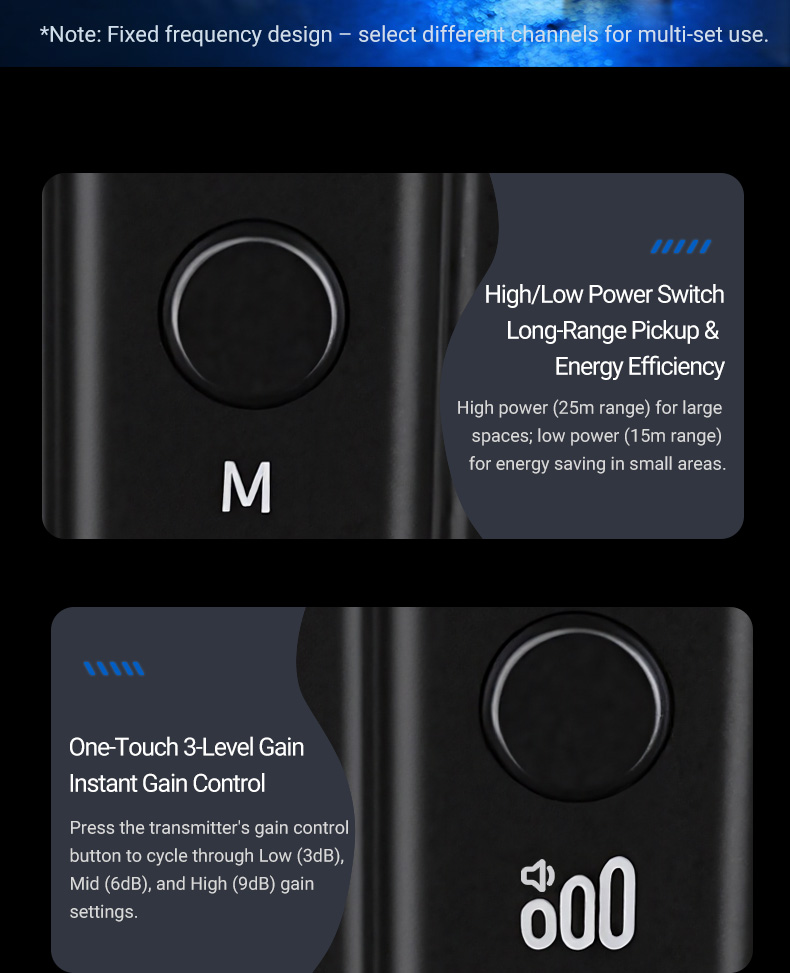

• High/low power switching, 3-level volume control, adaptive to various occasions.

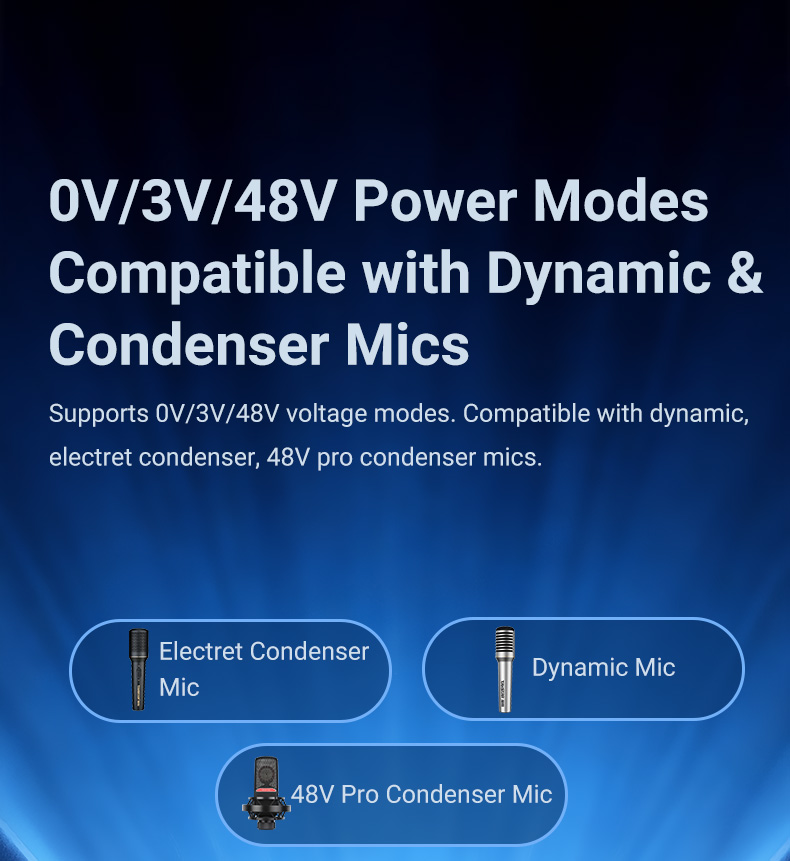

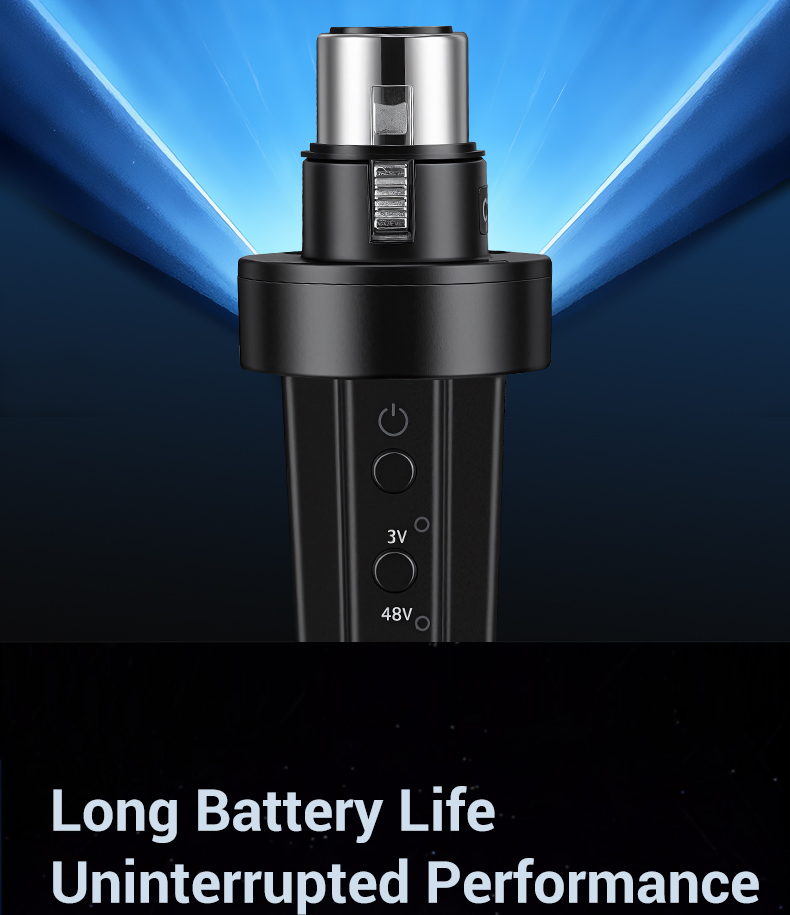

• Switchable power options at 0V/3V/48V, compatible with dynamic and condenser mics.

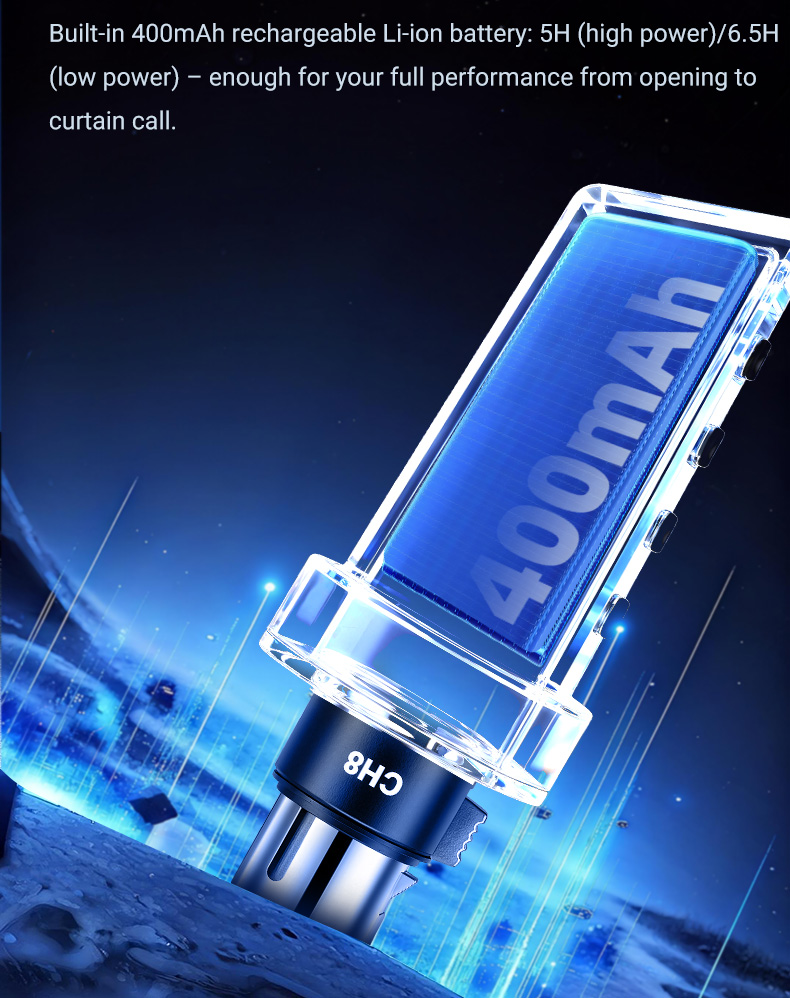

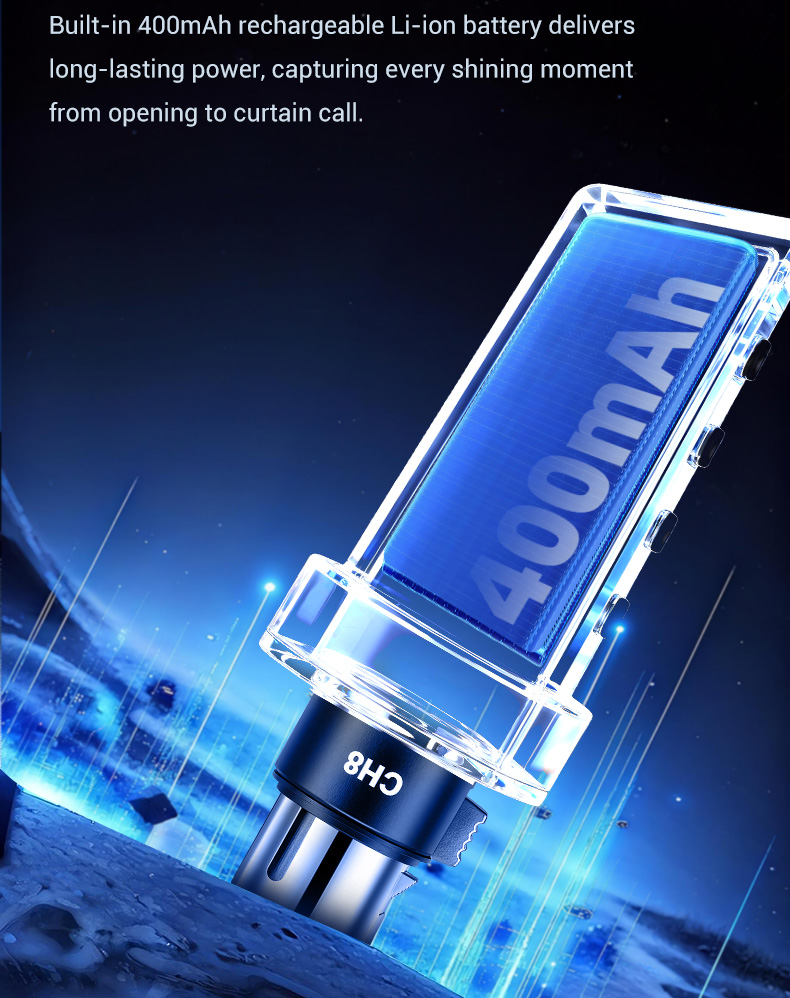

• Rechargeable li-ion battery inside, up to 5 hours runtime in high power mode, 6.5 hours in low power mode.
• Compact, portable design, suitable for different types of wired mic.
• Balance transmission range and energy efficiency based on venue sizes.
• Operational stably in extreme environments ranging from -18°C to 50°C.
• Pro audio performance, dynamic range >100dB, frequency response 50Hz-18KHz, THD <1.0%@1KHz.
• Clear vocal reproduction, with rich high-frequency details, and solid, stable low frequencies.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial

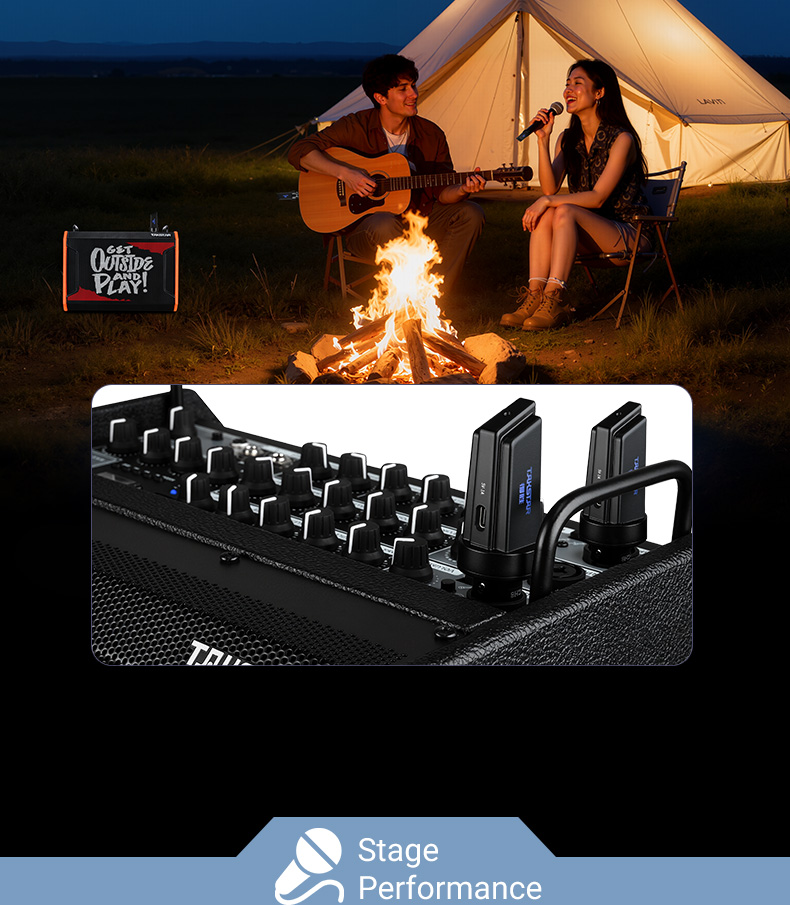

• For stage performances, outdoor singing, indoor recording, and audio transmission.

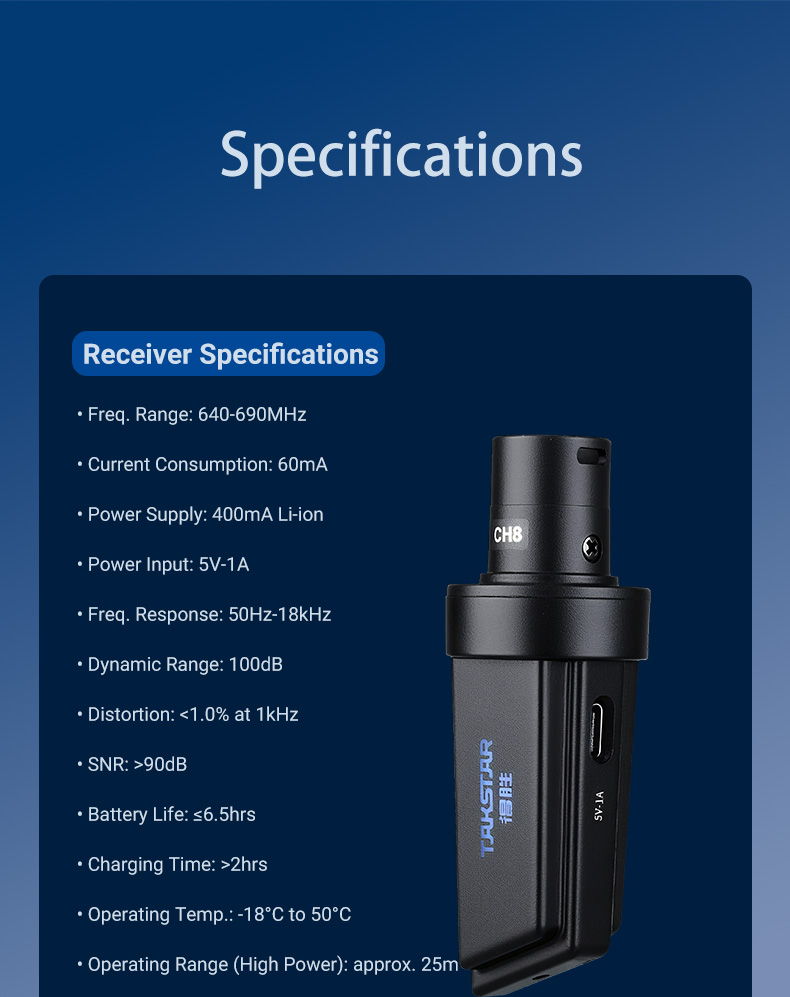

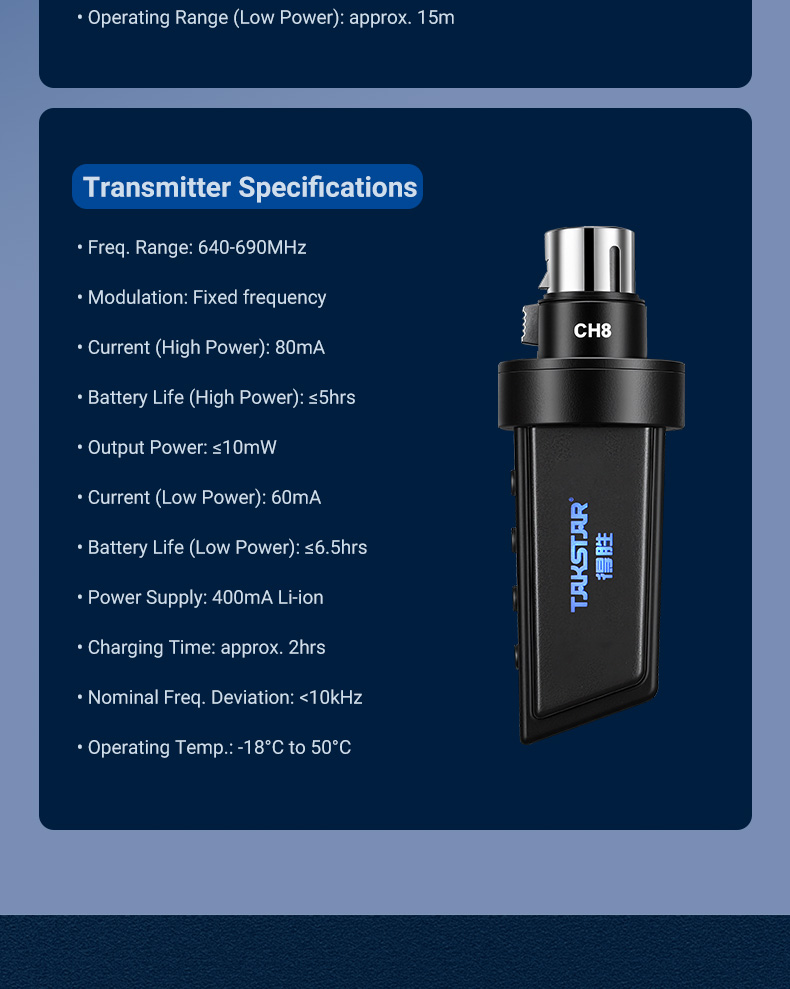

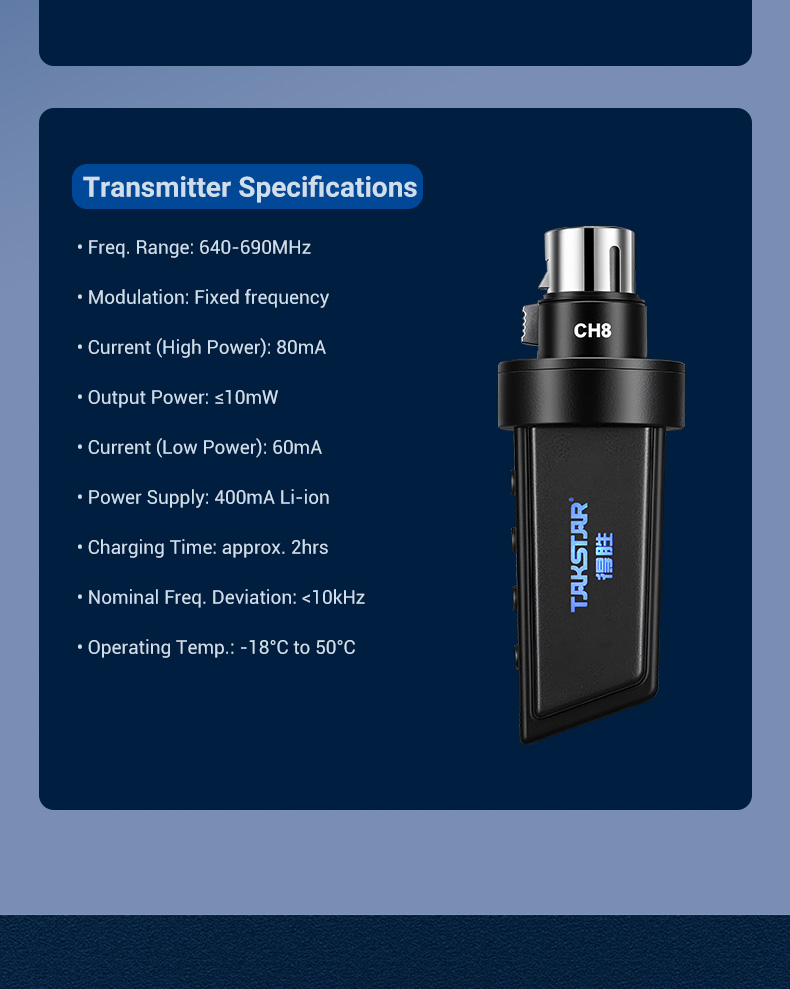

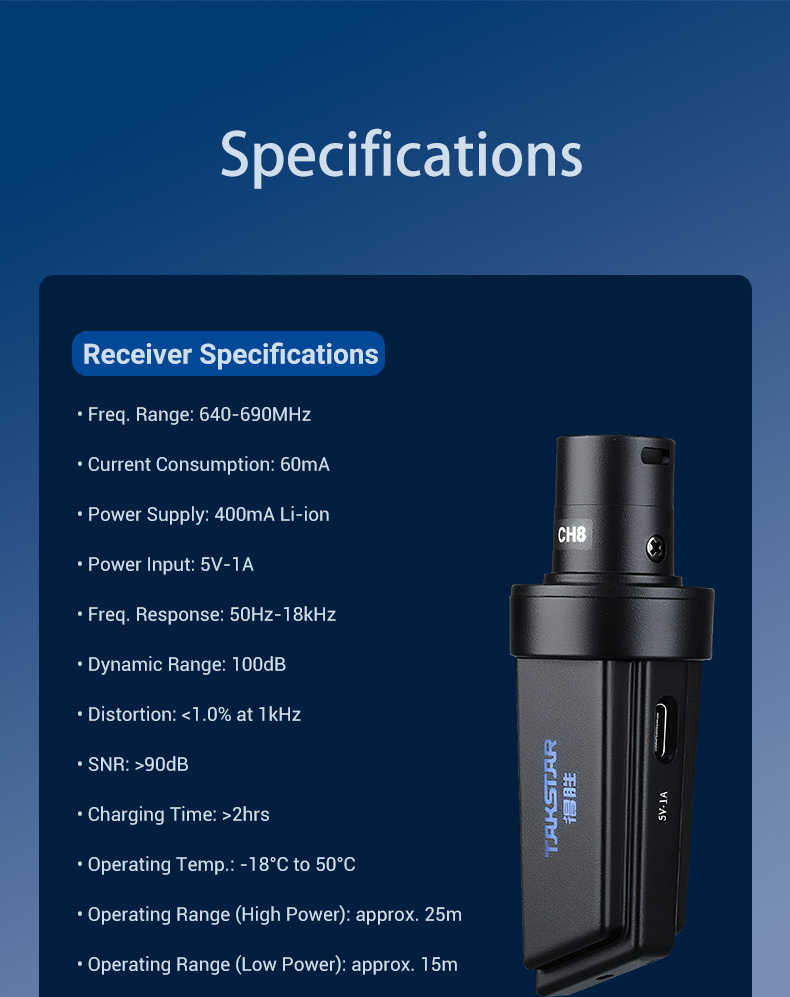

Receiver • Freq. Range: 640-690MHz • Current Consumption: 60mA • Power Supply: 400mA li-ion • Power Input: 5V-1A • Freq. Response: 50Hz-18KHz • Dynamic Range: 100dB • Distortion: <1.0% at 1KHz • SNR: >90dB • Battery Life: ≤6.5hrs • Charging Time: >2hrs • Operating Temp.: -18°C to 50°C • Range (High Power): 25m • Range (Low Power): 15m Transmitter • Freq. Range: 640-690MHz • Modulation: Fixed frequency • Current (High Power): 80mA • Battery Life (High Power): ≤5hrs • Output Power: ≤10mW • Current (Low Power): 60mA • Battery Life (Low Power): ≤6.5hrs • Power Supply: 400mA li-ion • Charging Time: 2hrs • Nominal Freq. Deviation: <10KHz • Operating Temp.: -18°C to 50°C Note: The above data are measured by Takstar laboratory which has the final interpretation right!

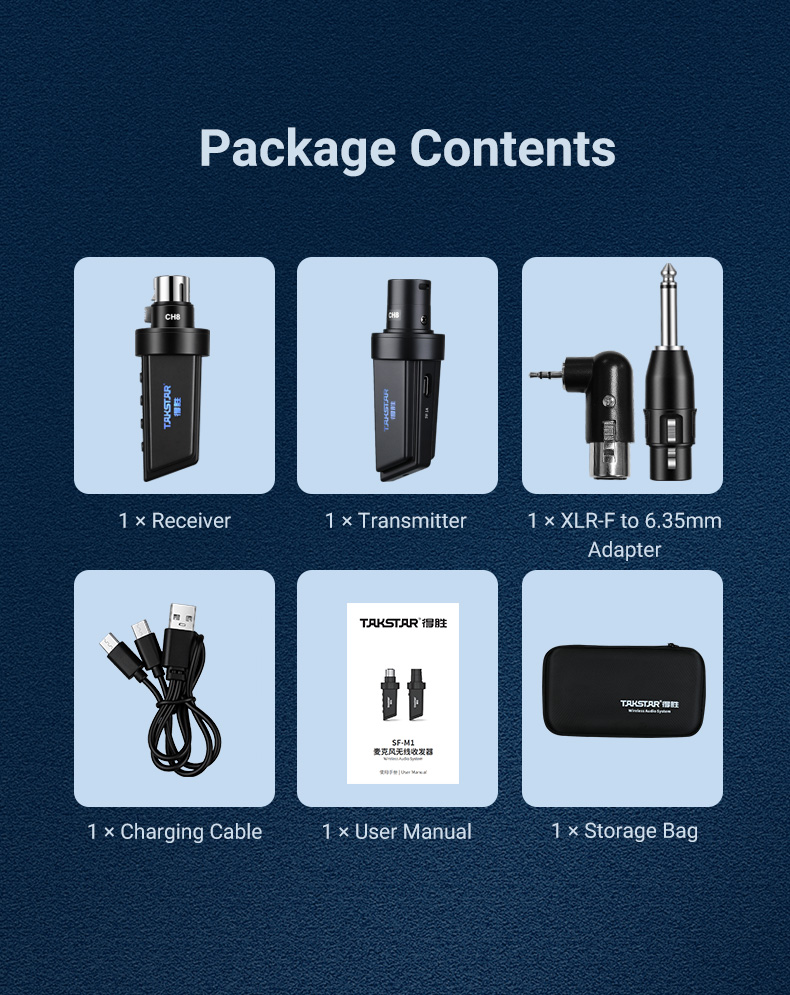

• XLR Receiver | 1 PC |
• XLR Transmitter | 1 PC |

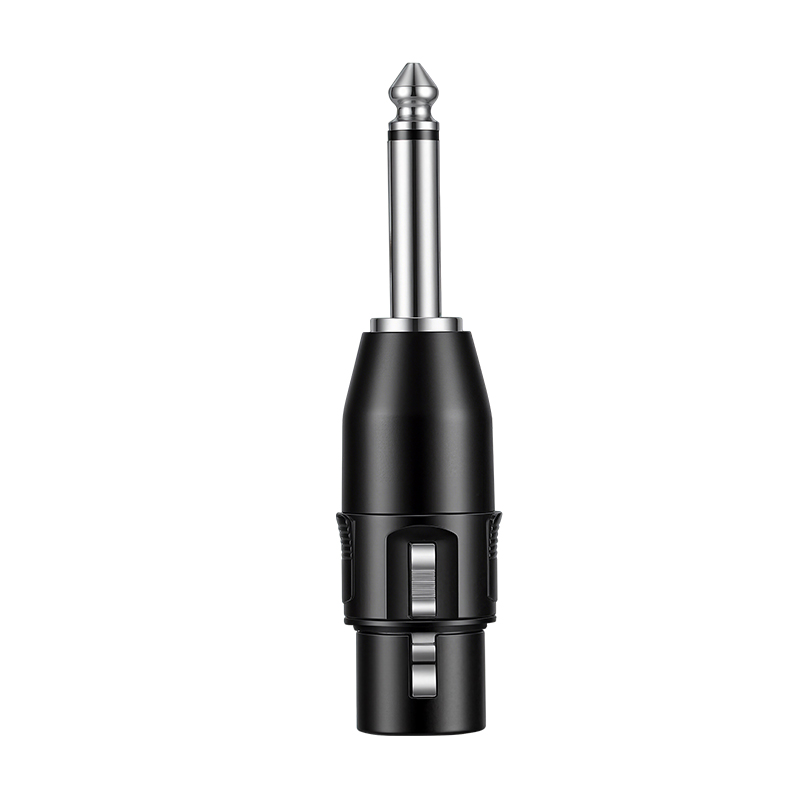

• XLR to 6.35mm Adapter | 1 PC |
• XLR to 3.5mm Adapter | 1 PC |

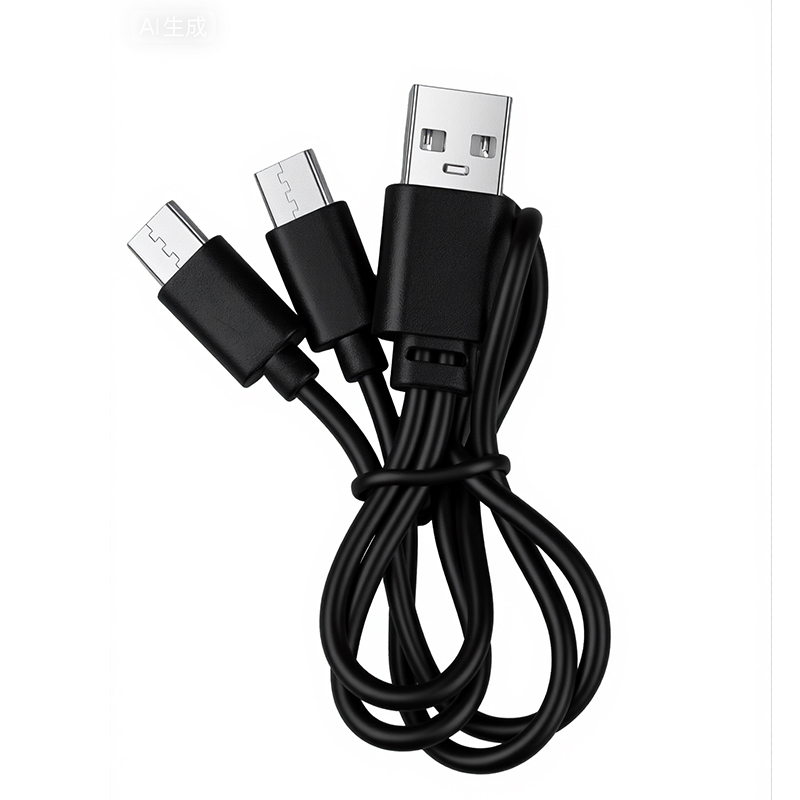

• Charging Cable | 1 PC |
• User Manual | 1 PC |
• Storage Bag | 1 PC |
User manualSF-M1 Wireless Microphone Transceiver User Manual2026-02-03 15:23:07Download
User manualSF-M1
