DMS-D7 Drum Set Series Microphone

Instrument
Wired
Hanging

DMS-D7 features advanced electroacoustic characteristic, it is the best choice for drum set recording
Bass drum microphone-full low frequency response for strong and dynamical bass effect pick up
Snare drum microphone-well designed low and frequency, ideal for snare and tom tom drum
Condenser microphone-wide frequency response and high frequency resolution meet the recording requirement of suspended cymbal and hi-hat
Rugged metal body construction

Product Detail

Product Detail
Specification

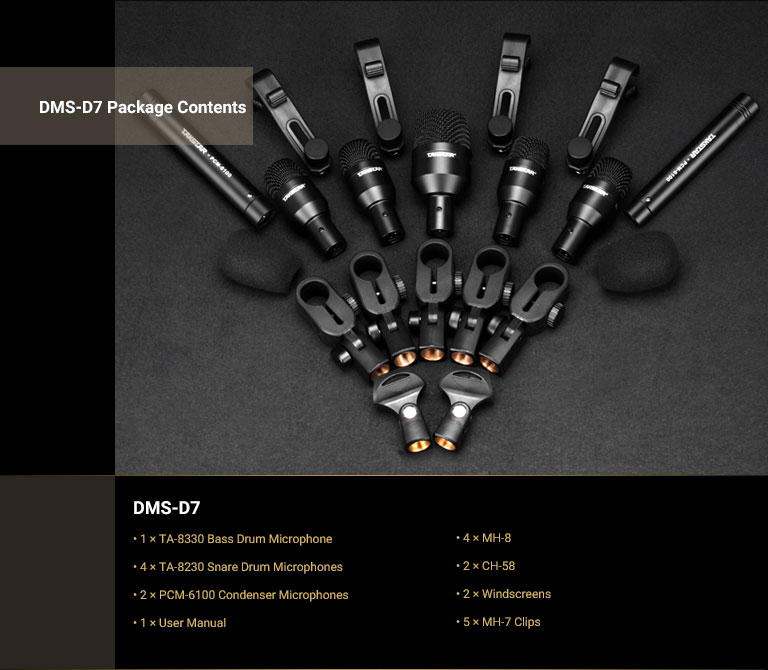

Product Content
Download

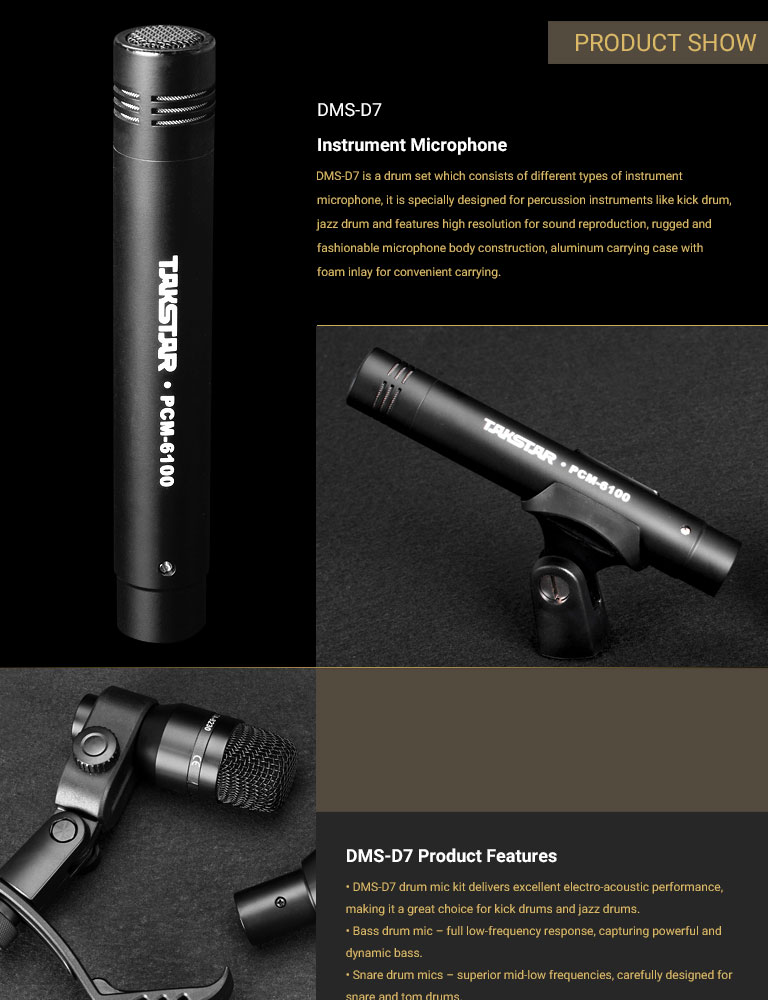

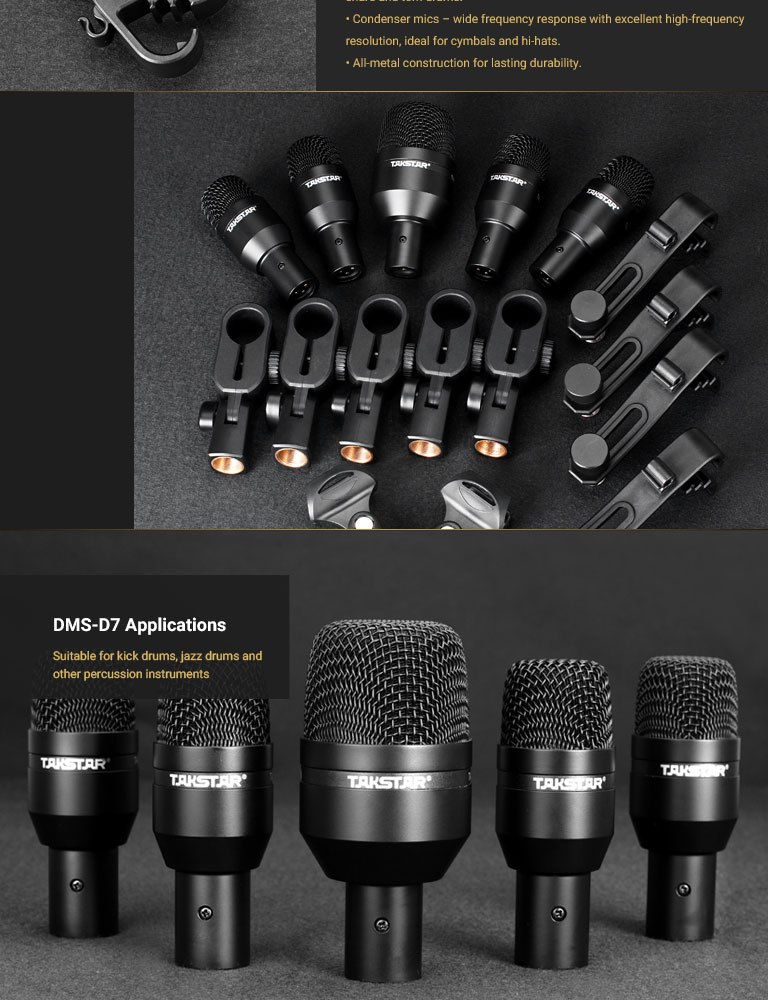

DMS-D7英文版_02.gif DMS-D7英文版_03.gif

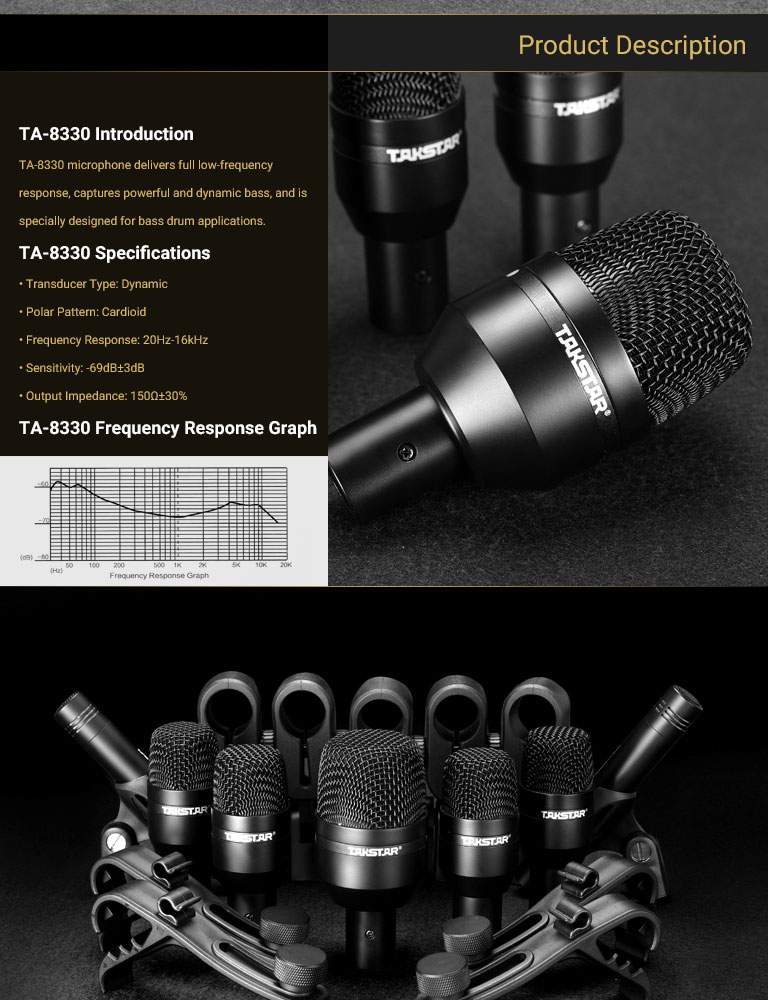

TA-8330 specification
• Transducer Principle: Dynamic
• Directivity Characteristic: Cardioid
• Frequency Response: 20Hz–16KHz
• Sensitivity: -69dB ± 3dB
• Output Impedance: 150 Ω ±30%

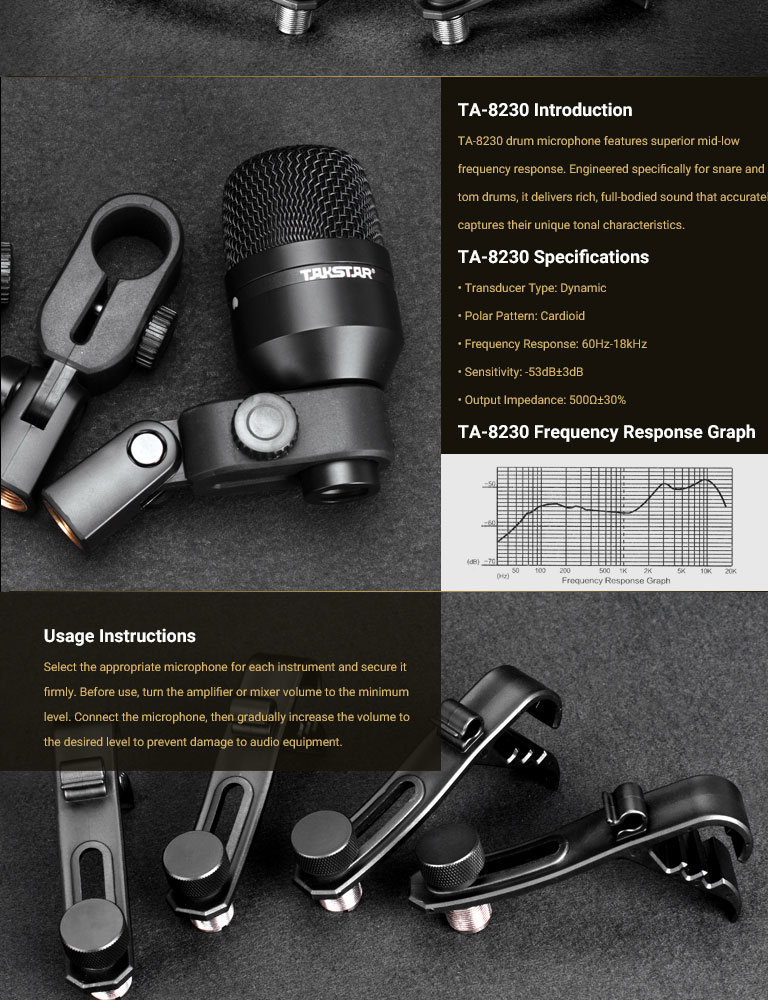

TA-8230 specification
• Transducer Principle: Dynamic
• Directivity Characteristic: Cardioid
• Frequency Response: 60Hz -18KHz
• Sensitivity: -53dB±3dB
• Output Impedance: 250 Ω±30%

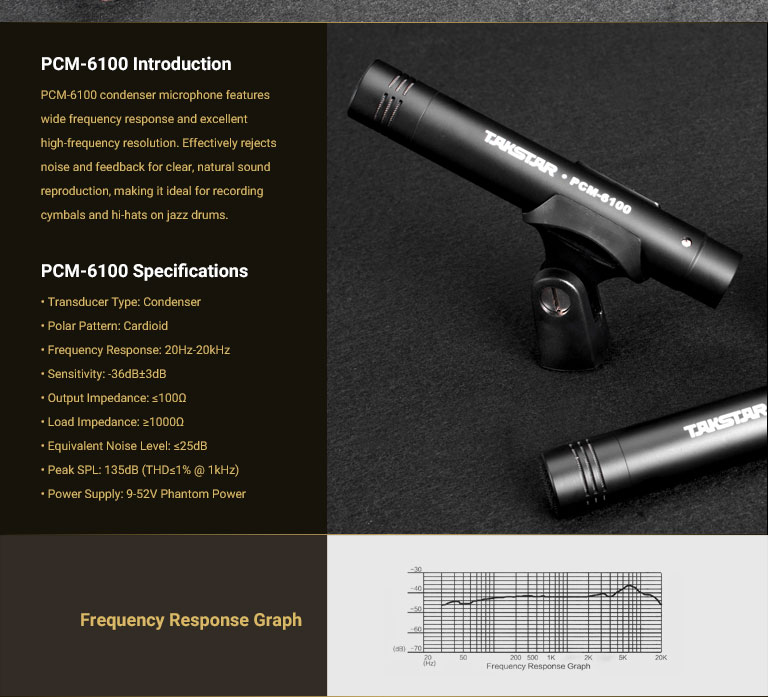

PCM-6100 specification
• Transducer Principle: Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 20Hz-20KHz
• Sensitivity: -36kB±3 dB
• Output Impedance: ≤100Ω
• Load Impedance: ≥1000 Ω
• Equivalent Noise Level: ≤25dB
• Max. SPL: 135dB(THD≤1% AT 1KHz)
• Power Requirement: 9-52V Phantom Power Supply

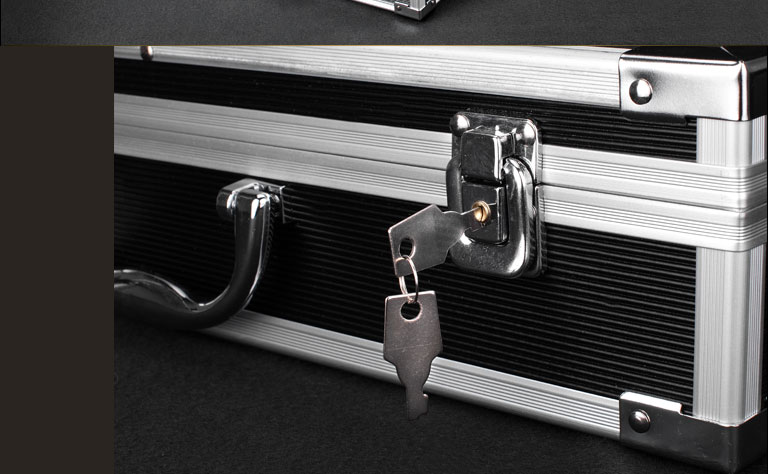

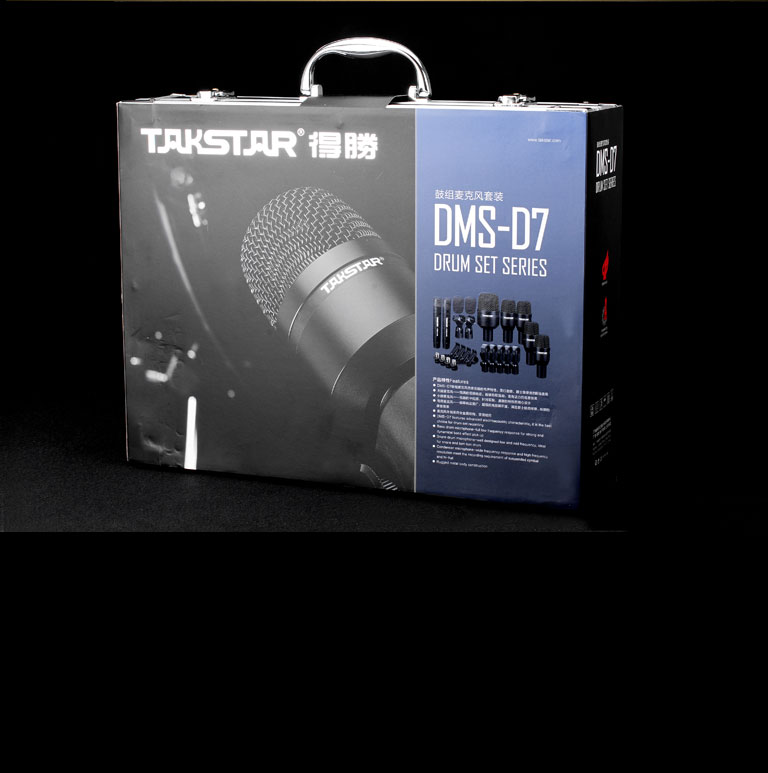

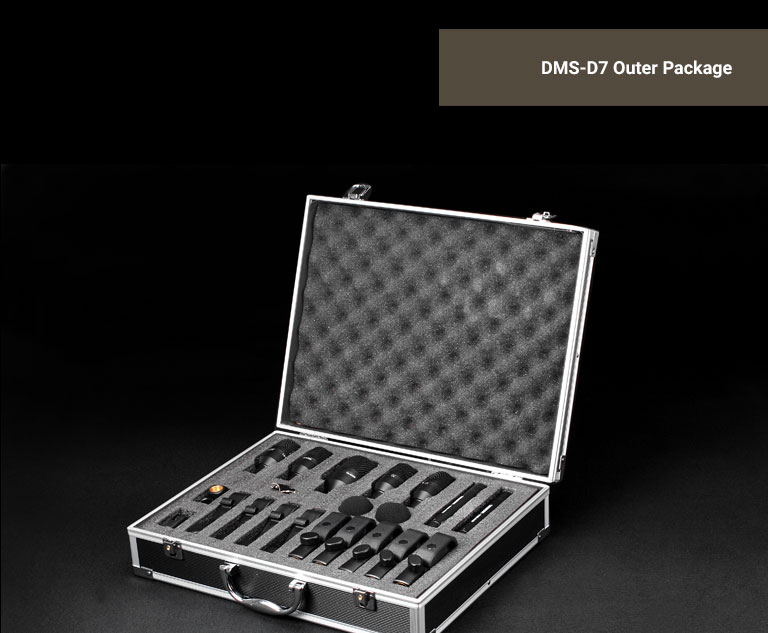

Package: Aluminum case Package: Alumi

User manual
Drum Set Series Microphone2017-07-27 14:56:05Download
