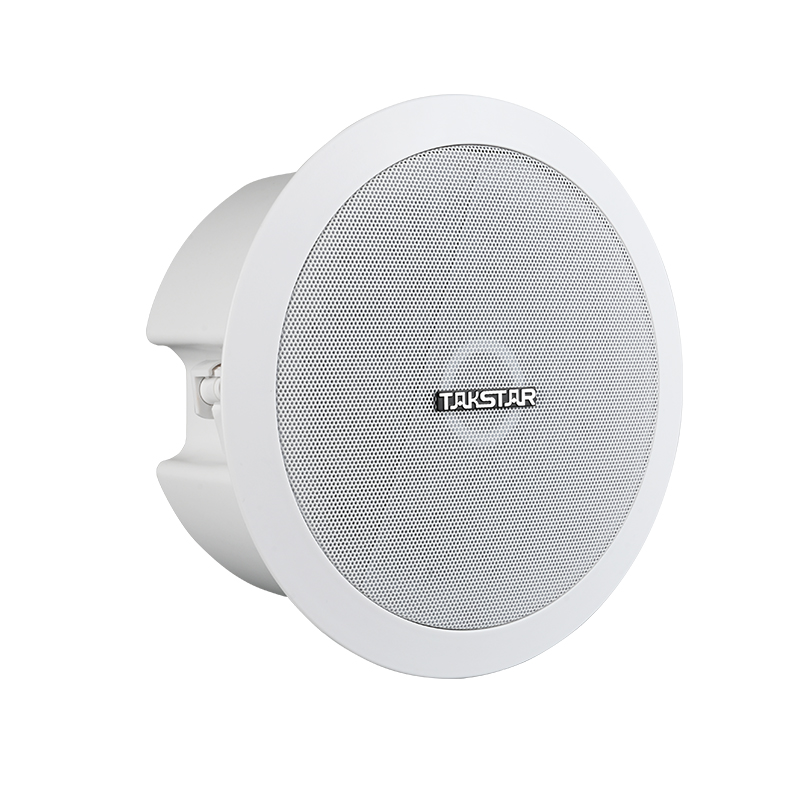

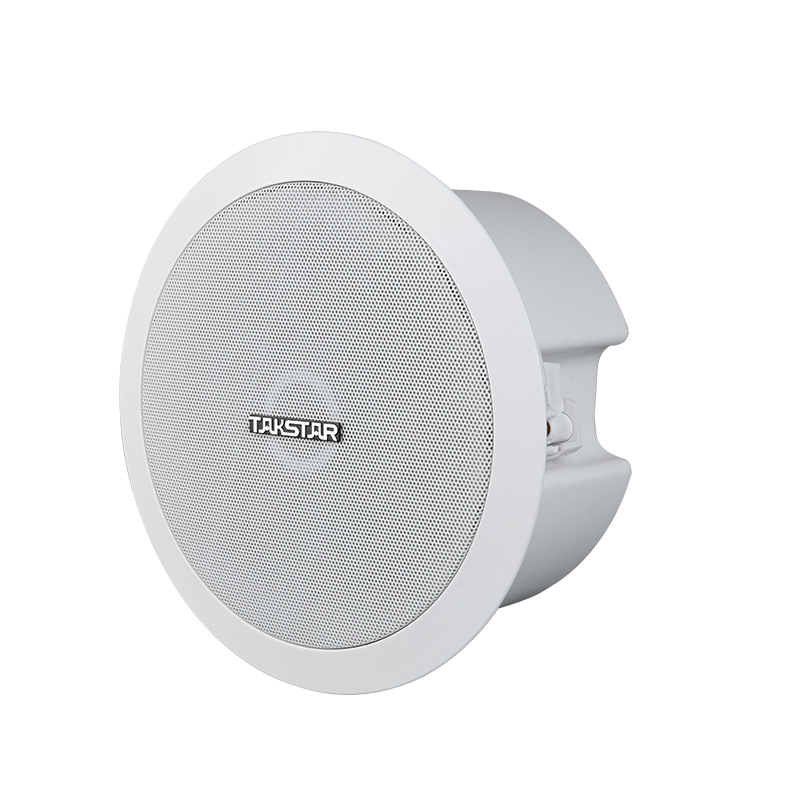

SG-640C IP Ceiling Speaker

IP Broadcasting

• In-ceiling design with integrated network audio decoding, digital power amp, and speaker.

• High-fidelity built-in speaker.

• Two power options: PoE by default (IEEE 802.3at compliant), or DC supply optional.

• Standard RJ45 interface for connection to Ethernet or PoE switches; supports cross-segment and cross-router connections.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial








• Hotels, office buildings, workshops, and large shopping malls.

• Network Interface: RJ45, 10M/100M
• Network Protocols: TCP/IP, UDP
• Audio Format: MP3
• Supported Bitrate: 32K-320K
• Frequency Bandwidth: 20Hz-20KHz
• Sensitivity: 92dB
• Max Sound Pressure Level: 98dB
• Frequency Response: 70Hz-12KHz
• Signal-to-Noise Ratio: ≥90dB; Mic: ≥88dB
• Power Supply: External DC 12V/3A
• Rated Power (AES): 40W
• Standby Power Consumption: 0.2W
• Product Weight: Approx. 1.1 kg

Speaker Specs
• Speaker Diameter: 6.5 inches
• Magnet Specs: Ø70*Ø32*10 (Y25)
• Voice Coil Specs: PSV 20.4*20*7.3*0.12*2 FPESVW
• Frame Material: Iron
• Cutout Size: 196mm
• External Dimensions: 230mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
