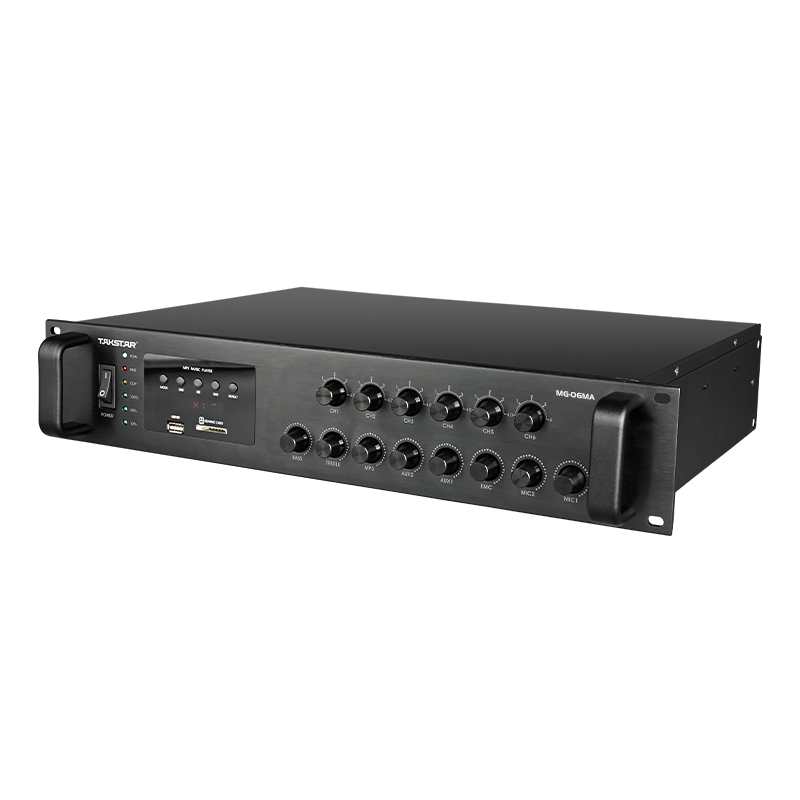

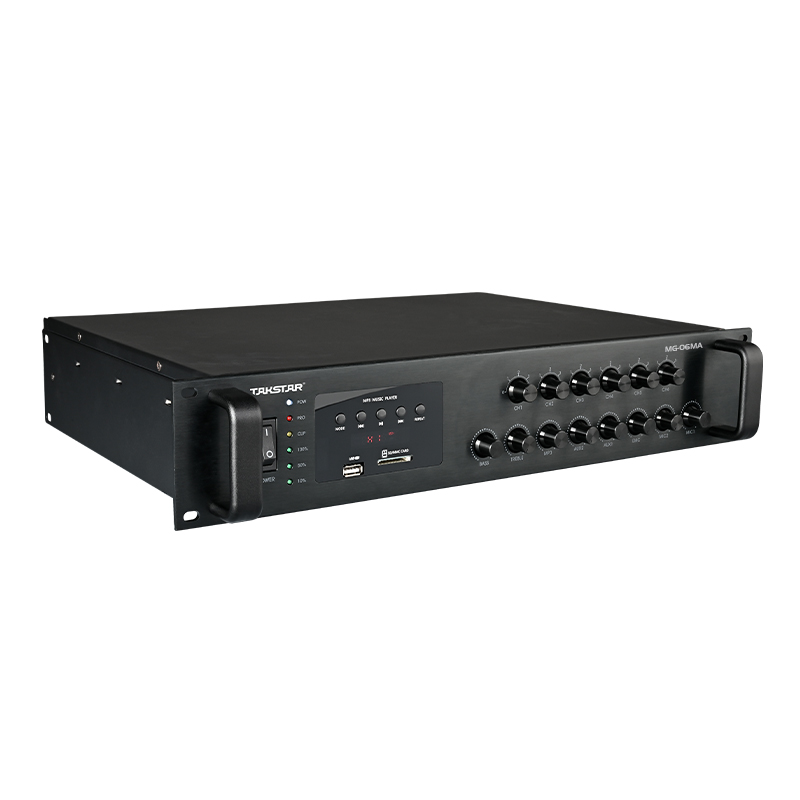

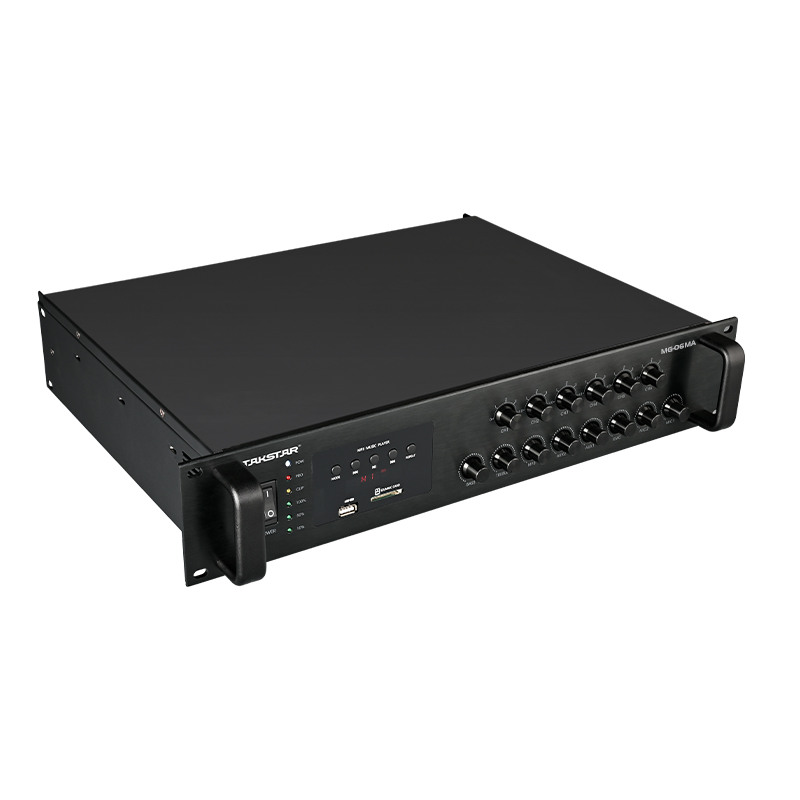

MG-06MA/MG-12MA/MG-24MA/MG-36MA/MG-50MA/MG-65MA Integrated Broadcast Amplifier
- IP Broadcasting
• 6 independent zone outputs with separate volume control, and 100V output voltage.

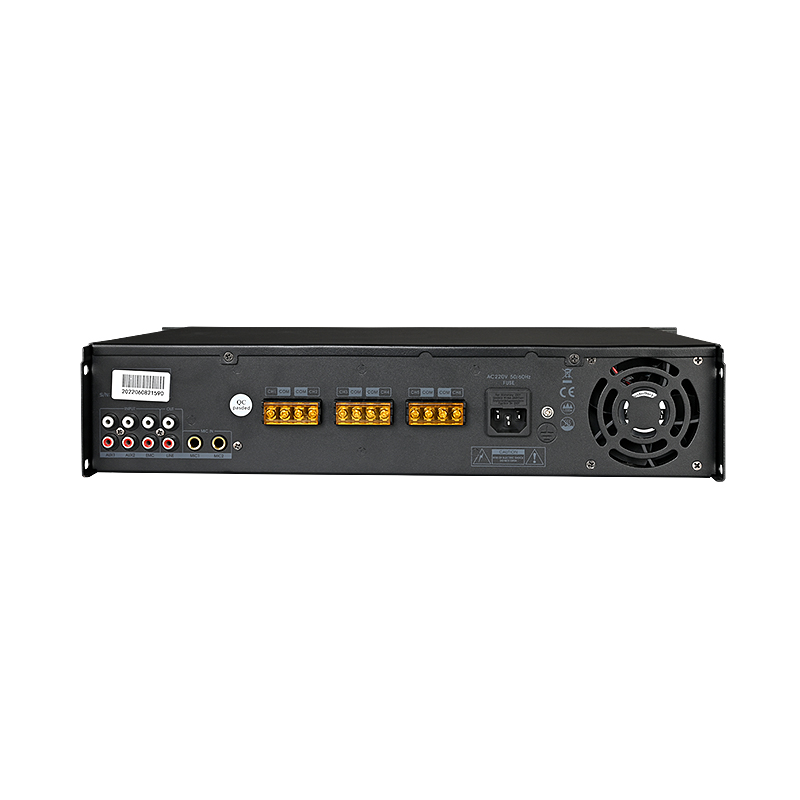

• Includes 2 AUX line inputs, 1 Emergency (EMC) input, 2 mic inputs, and 1 auxiliary output for cascading to another amplifier.
• Bass and treble adjustments, along with separate volume controls for all inputs.
• Mic 1 and Emergency EMC input have the highest priority, can override other input signals.
• Built-in Wireless/MP3 module for easy mobile streaming for program playback.
• Multiple indicator LED lights for power, signal, clipping, and protection status.
• Active fan cooling for efficient heat dissipation and long-term operation.
• Mains power fluctuation protection for over-voltage and under-voltage safeguards.
Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Classrooms, small meeting rooms, retail stores, etc.
• Model: MG-06MA • Rated Power: 60W • Product Weight: 7.3KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz • Model: MG-12MA • Rated Power: 120W • Product Weight: 9.3KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz • Model: MG-24MA • Rated Power: 240W • Product Weight: 11.5KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz • Model: MG-24MA • Rated Power: 240W • Product Weight: 11.5KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz • Model: MG-24MA • Rated Power: 240W • Product Weight: 11.5KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz • Model: MG-24MA • Rated Power: 240W • Product Weight: 11.5KG • Dimensions: 483*342*90MM • High-Z Output: 100V • AUX Sensitivity: -12dB • MIC Sensitivity: -40dB • Treble/Bass: ±10dB • Freq. Response: 80Hz~16KHz±2dB • THD: THD≤0.1% • SNR: ≥70dB • Temperature: -5°℃~80°℃ • Operating Humidity: 20%~80% RH,non-condensing • Power Supply: -220V/50Hz
| • Amplifier | 1 PC |
| • Power Cord | 1 PC |
| • User Manual | 1 PC |
User manualMG-06MA/MG-12MA/MG-24MA/MG-36MA/MG-50MA/MG-65MA Integrated Broadcast Amplifier User Manual2025-10-27 09:52:05Download
User manualMG-06MA/MG-12MA/MG-24MA/MG-36MA/MG-50MA/MG-65MA
