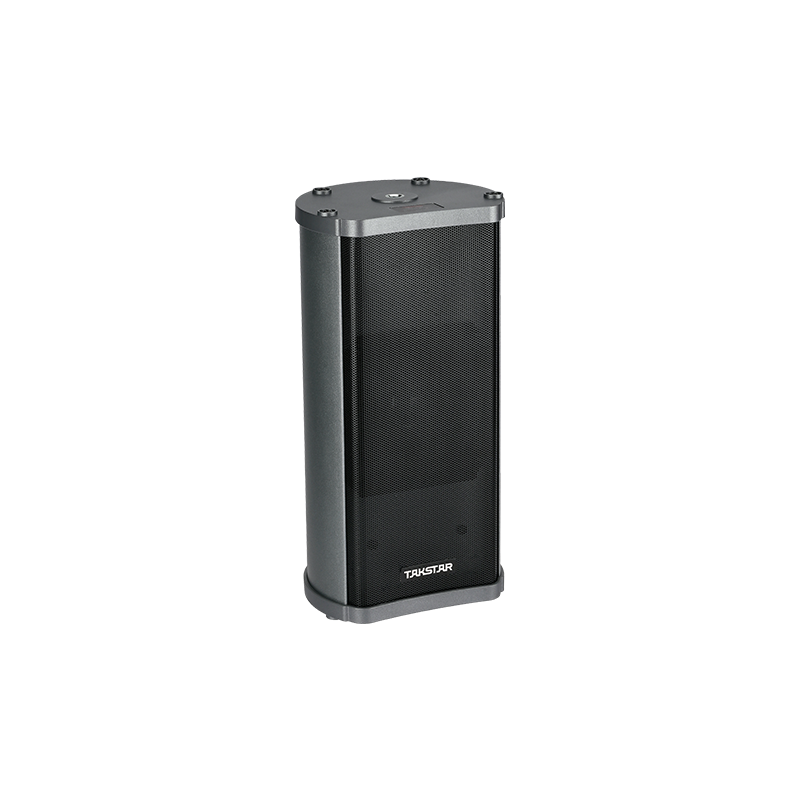

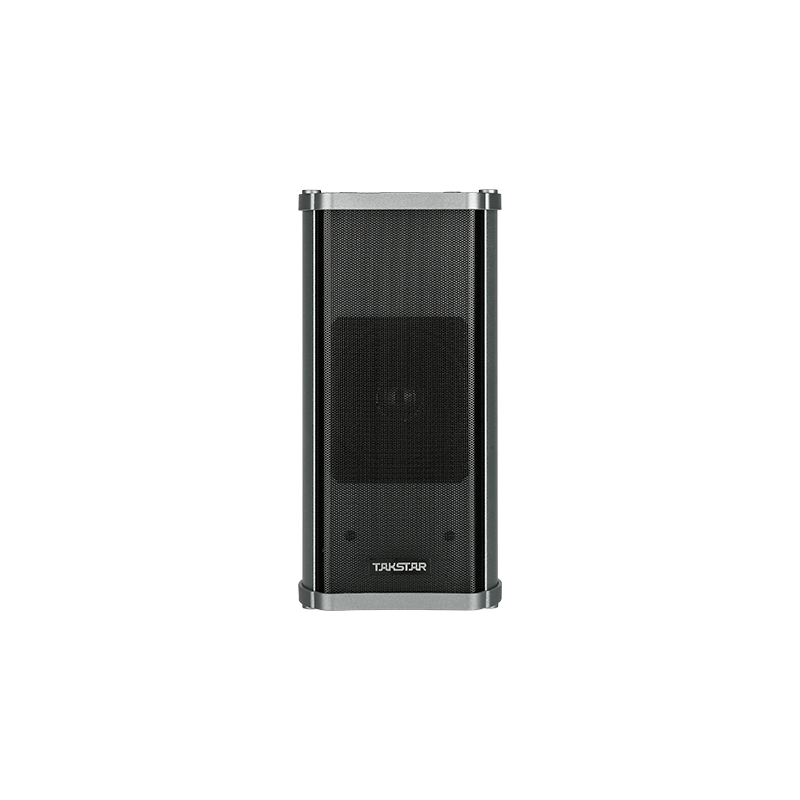

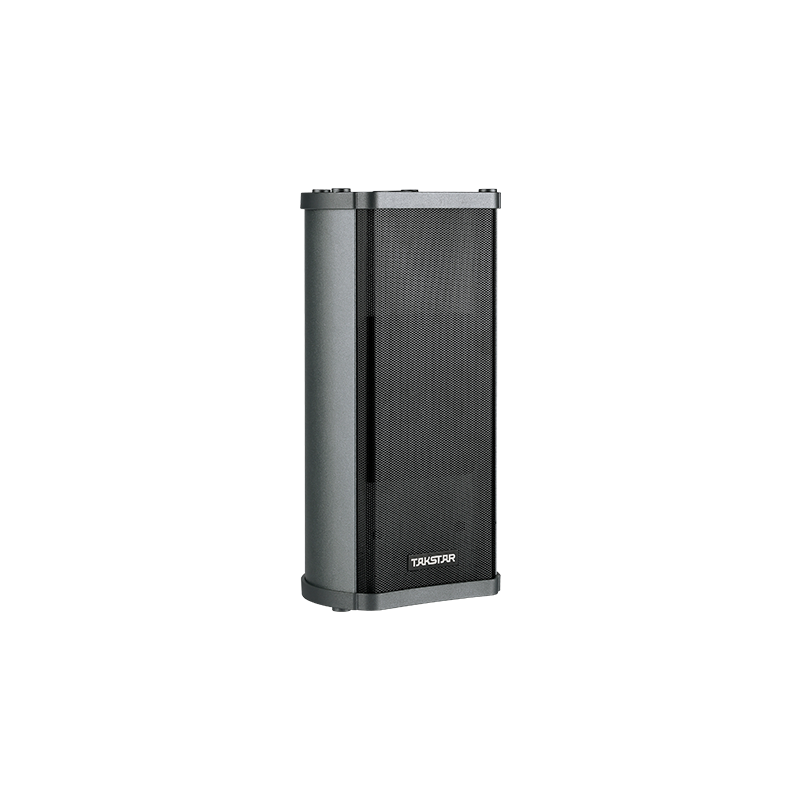

• MG-4 series are professional waterproof outdoor aluminum column speakers with 4.5-inch constant-voltage drivers
• Designed with all-weather materials, moisture-proof, waterproof and UV-resistant
• Drivers utilize 4.5-inch full-range moisture-proof and waterproof composite material diaphragm, producing warm sound and rich vocals
• Corrosion-resistant aluminum grille cover reduces weight and simplifies installation and maintenance
• Various outdoor wall-mount applications (e.g., shopping malls, neighborhoods, stations, schools, parks, corporate units)
• Product Model: MG-4050YZ • Speaker Power(AES): 50W • Input Voltage: 100V • Sensitivity: 89dB • Max SPL: 105dB • Frequency Response: 100-16000Hz • Driver Quantity: 1 • Driver Dimensions: 4 inches • External Dimensions (mm): 129X106X261 • Installation Method: Wall mount • Mounting Accessory: L-shape brackets+ pack of screws • Product Weight: 1.5KG • Product Model: MG-4090YZ • Speaker Power(AES): 90W • Input Voltage: 100V • Sensitivity: 92dB • Max SPL: 111dB • Frequency Response: 100-16000Hz • Driver Quantity: 2 • Driver Dimensions: 4 inches • External Dimensions (mm): 129X106X327 • Installation Method: Wall mount • Mounting Accessory: L-shape brackets+ pack of screws • Product Weight: 2.17KG • Product Model: MG-4120YZ • Speaker Power(AES): 12W • Input Voltage: 100V • Sensitivity: 94dB • Max SPL: 114dB • Frequency Response: 100-16000Hz • Driver Quantity: 3 • Driver Dimensions: 4 inches • External Dimensions (mm): 129X106X448 • Installation Method: Wall mount • Mounting Accessory: L-shape brackets+ pack of screws • Product Weight: 2.95KG
User manualMG-4050YZ/MG-4090YZ/MG-4120YZ Waterproor Broadcast Column Speaker User Manual2025-10-27 09:43:43Download
