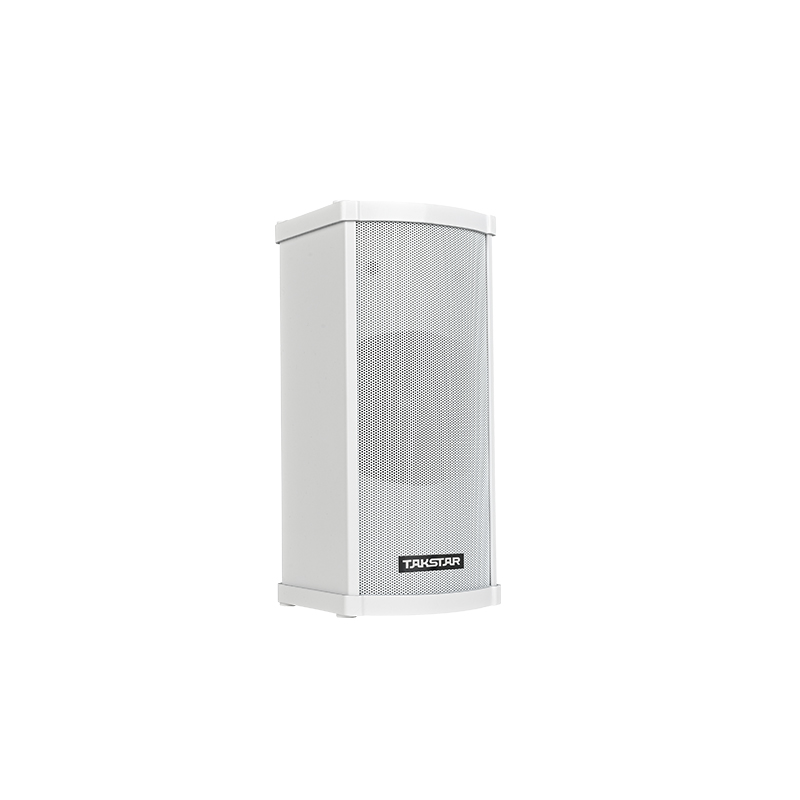

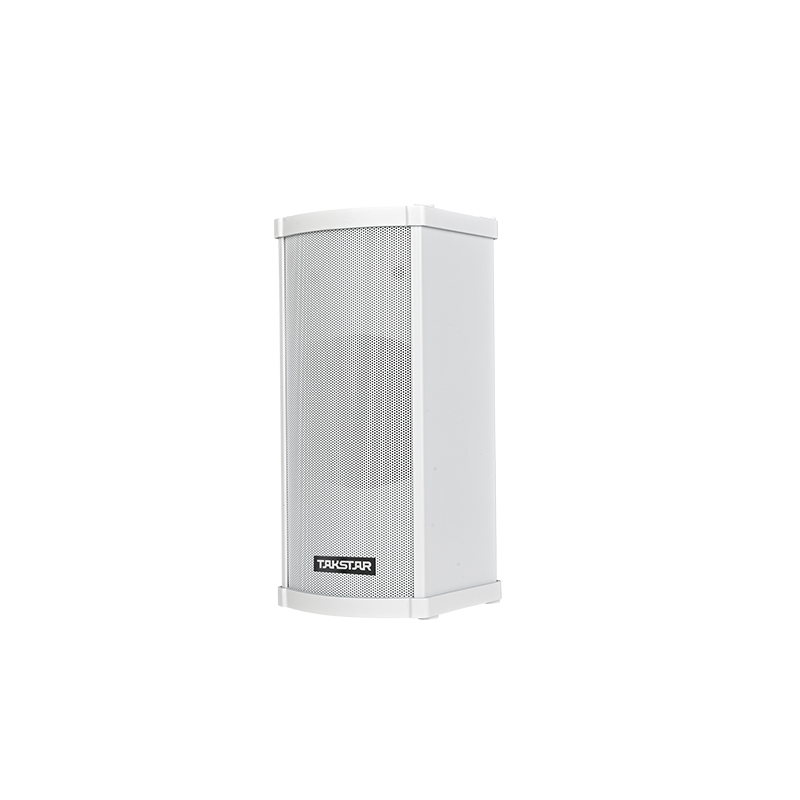

MG-3030YZ/MG-3060YZ/MG-3100YZ/MG-3140YZ Professional Broadcast Column Speaker

IP Broadcasting

• Professional outdoor constant-voltage speakers with 3-inch drivers

• Designed with all-weather materials, moisture-proof, waterproof and UV-resistant

• Greatly simplified installation process using included mount parts

• Drivers utilize 3-inch full-range moisture-proof and waterproof composite material diaphragm, producing warm sound and rich vocals

• Corrosion-resistant aluminum grille cover reduces weight and simplifies installation and maintenance

Product Detail

Application
Specification
Product Tutorial

• BGM in high-end retail stores, restaurants, shops, churches, buildings

• Product Model: MG-3030YZ
• Speaker Power(AES): 30W
• Input Voltage: 100V
• Sensitivity: 89dB
• Max SPL: 103dB
• Frequency Response: 150-16000Hz
• Driver Quantity: 1
• Driver Dimensions: 3 inches
• External Dimensions (mm): 94.5X92.5X210
• Installation Method: Wall mount

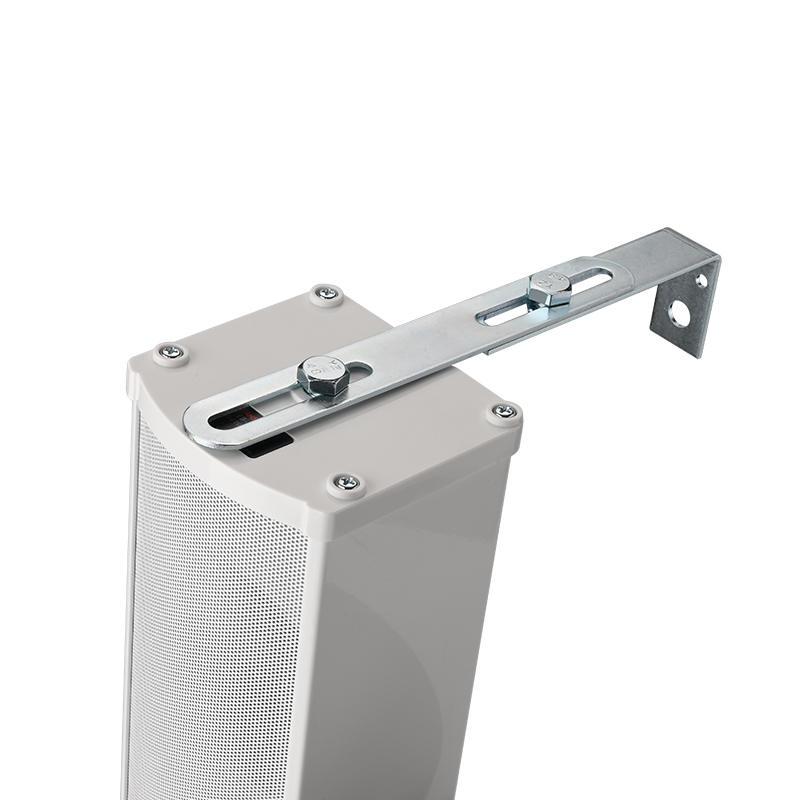

• Mounting Accessory: L-shape brackets + pack of screws
• Product Weight: 0.93KG

• Product Model: MG-3060YZ
• Speaker Power(AES): 60W
• Input Voltage: 100V
• Sensitivity: 90dB
• Max SPL: 107dB
• Frequency Response: 150-16000Hz
• Driver Quantity: 2
• Driver Dimensions: 3 inches
• External Dimensions (mm): 94.5X92.5X289
• Installation Method: Wall mount
• Mounting Accessory: L-shape brackets + pack of screws
• Product Weight: 1.42KG

• Product Model: MG-3100YZ
• Speaker Power(AES): 100W
• Input Voltage: 100V
• Sensitivity: 92dB
• Max SPL: 112dB
• Frequency Response: 150-16000Hz
• Driver Quantity: 4
• Driver Dimensions: 3 inches
• External Dimensions (mm): 94.5X92.5X486
• Installation Method: Wall mount
• Mounting Accessory: L-shape brackets + pack of screws
• Product Weight: 2.47KG

• Product Model: MG-3140YZ
• Speaker Power(AES): 140W
• Input Voltage: 100V
• Sensitivity: 95dB
• Max SPL: 116dB
• Frequency Response: 150-16000Hz
• Driver Quantity: 6
• Driver Dimensions: 3 inches
• External Dimensions (mm): 94.5X92.5X684
• Installation Method: Wall mount
• Mounting Accessory: L-shape brackets + pack of screws
• Product Weight: 3.47KG
