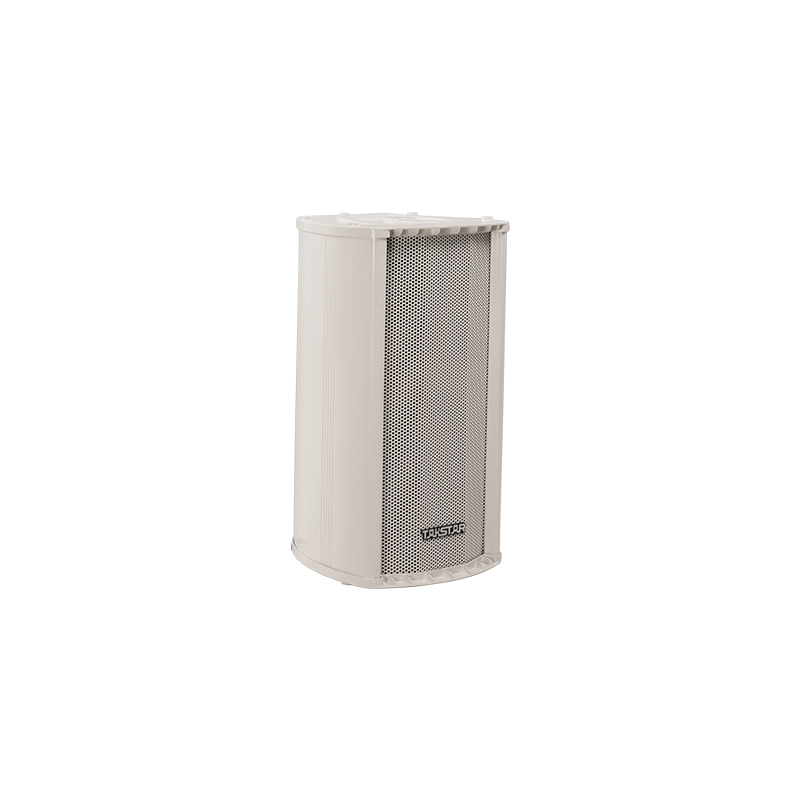

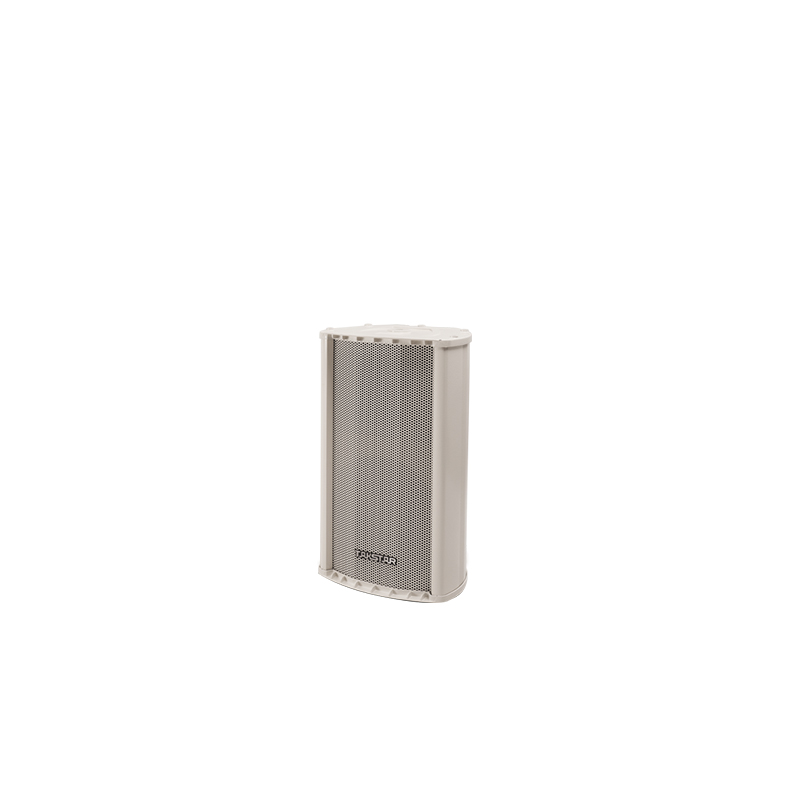

MG-812YZ/MG-824YZ/MG-836YZ/MG-848YZ Waterproof Broadcast Column Speaker

IP Broadcasting

• Professional waterproof, moisture-proof, and dust-proof design for all-weather outdoor use.

• High-fidelity speaker with quick response, bright sound and far coverage.

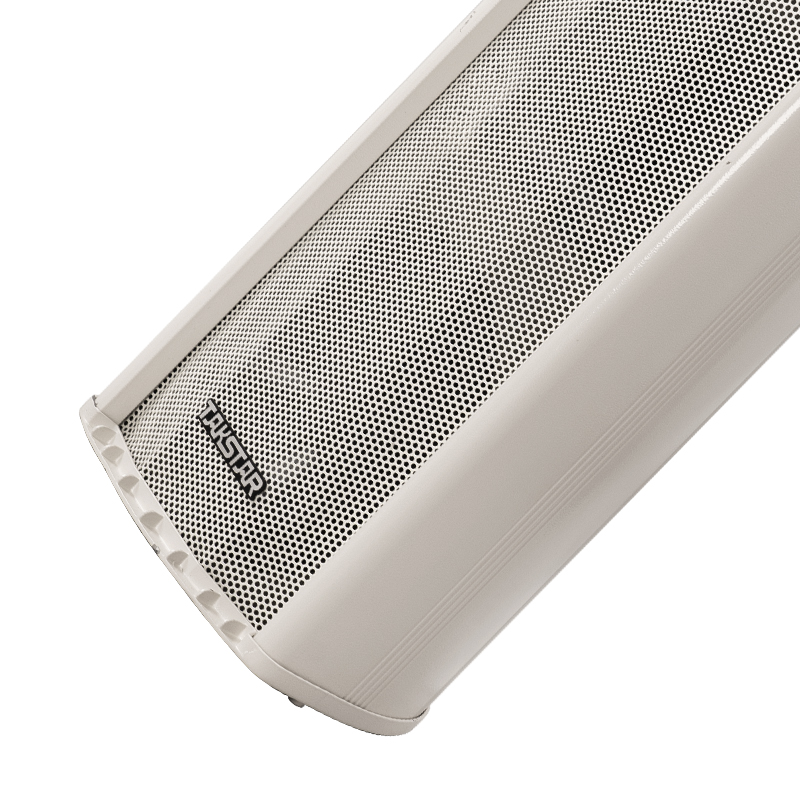

• All-aluminum alloy casing, elegant, durable, not easy to discolor and deform.

Product Detail

Product Detail
Application
Specification
Product Tutorial













• Various outdoor wall-mount applications (e.g., playgrounds, squares, stations, parks)

• Model: MG-812YZ
• Input Voltage: 70V 100V
• Power (Red-Blue) AES: 30W 60W
• Power (Red-White) AES: 60W 120W
• Sensitivity: 92dB
• Max SPL: 109dB/112dB
• Frequency Response: 80-18kHz
• Woofer: 8" driver
• Tweeter: 25mm voice coil resin film horn tweeter
• Product Size: 440x250x230mm
• Product Weight: Approx. 6.9kg

• Model: MG-824YZ
• Input Voltage: 70V 100V
• Power (Red-Blue) AES: 60W 120W
• Power (Red-White) AES: 120W 240W
• Sensitivity: 95dB
• Max SPL: 115dB/118dB
• Frequency Response: 80-18kHz
• Woofer: 2 X 8" driver
• Tweeter: 25mm voice coil resin film horn tweeter
• Product Size: 675x250x230mm
• Product Weight: Approx. 10.4kg

• Model: MG-836YZ
• Input Voltage: 70V 100V
• Power (Red-Blue) AES: 90W 180W
• Power (Red-White) AES: 180W 360W
• Sensitivity: 97dB
• Max SPL: 119dB/122dB
• Frequency Response: 80-18kHz
• Woofer: 3 X 8" driver
• Tweeter: 25mm voice coil resin film horn tweeter
• Product Size: 915x250x230mm
• Product Weight: Approx. 13.5kg

• Model: MG-848YZ
• Input Voltage: 70V 100V
• Power (Red-Blue) AES: 120W 240W
• Power (Red-White) AES: 240W 480W
• Sensitivity: 98dB
• Max SPL: 121dB/124dB
• Frequency Response: 80-18kHz
• Woofer: 4 X 8" driver
• Tweeter: 2 X 25mm voice coil resin film horn tweeter
• Product Size: 1325x250x230mm
• Product Weight: Approx. 19.2kg
