• Utilizes embedded PC tech, DSP audio processing, and industrial-grade ARM chip for rapid startup and enhanced stability.
• Built-in network audio decoding module; speaker output at 70W/100W/140W(AES).
• Independent IP address, receives custom scheduled broadcasts directly from the server.
• Delivers high-fidelity CD-quality digital audio with an adaptive bitrate of 32-320kbps, ensuring noise-free playback.
• Independent volume and balance adjustments, plus digital treble and bass controls for precise sound tuning.
• Smart power management, auto sleep mode during inactivity, maintaining low standby power (≤0.2W) and waking for playback tasks.
• Remote volume control, auto adjust volume (BGM, emergency, fire alarm) to pre-set system levels upon automatic startup and playback tasks.
• Receives diverse broadcast programs over the network, including intercom and emergency alerts.
• Single-cable solution, leverages existing network infrastructure, compatible with TCP/IP for seamless integration across broadcasting, computing, and monitoring systems.
• Remote network update support for easy maintenance.
• Remote software-based bass and treble adjustments to tailor to playback content.
• IP reset switch to restore factory settings.
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.

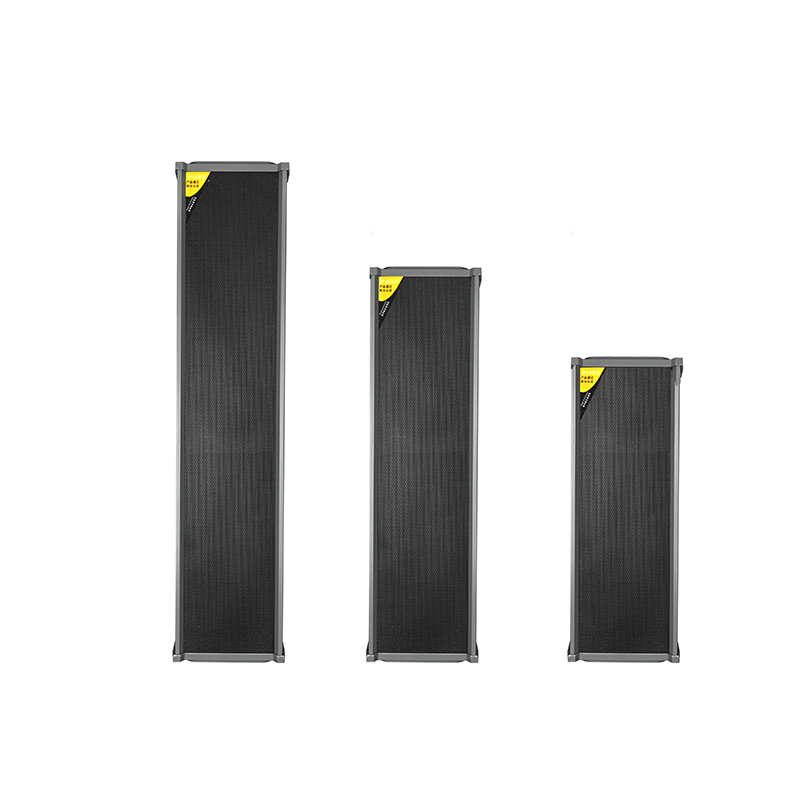

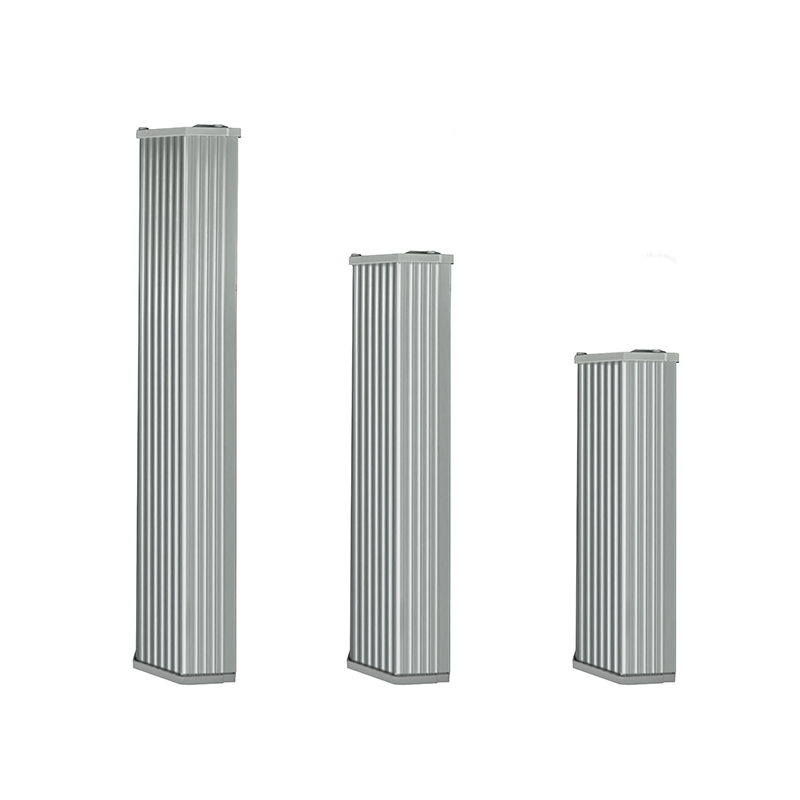

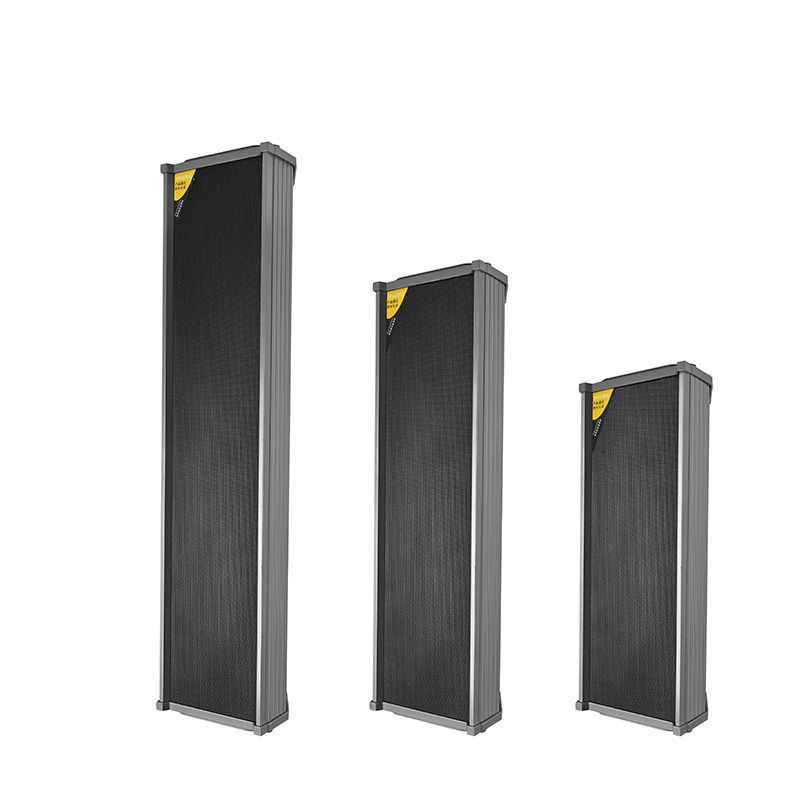

• Model: SG-4070YZ • Rated Power(AES): 70W • Max SPL: 107dB • Dimensions (mm): 165*145*440 • Net Weight: 3.75Kg • Model: SG-4100YZ • Rated Power(AES): 100W • Max SPL: 109dB • Dimensions (mm): 165*145*580 • Net Weight: 5.5Kg • Model: SG-4140YZ • Rated Power(AES): 140W • Max SPL: 111dB • Dimensions (mm): 165*145*740 • Net Weight: 7.25Kg • Network Interface: RJ45; 10M/100M • Driver Size: 4 inches • Network Protocol: TCP/IP; UDP • Audio Format: MP3 • Supported Bit Rate: 32K-320K • Bandwidth: 20Hz-20KHz • Sensitivity: 92dB • SNR: ≥90dB; Mic: ≥88dB • Power Supply: 12V/5A • Standby Power: 0.2W Note: The above data are measured by Takstar laboratory which has the final interpretation right!

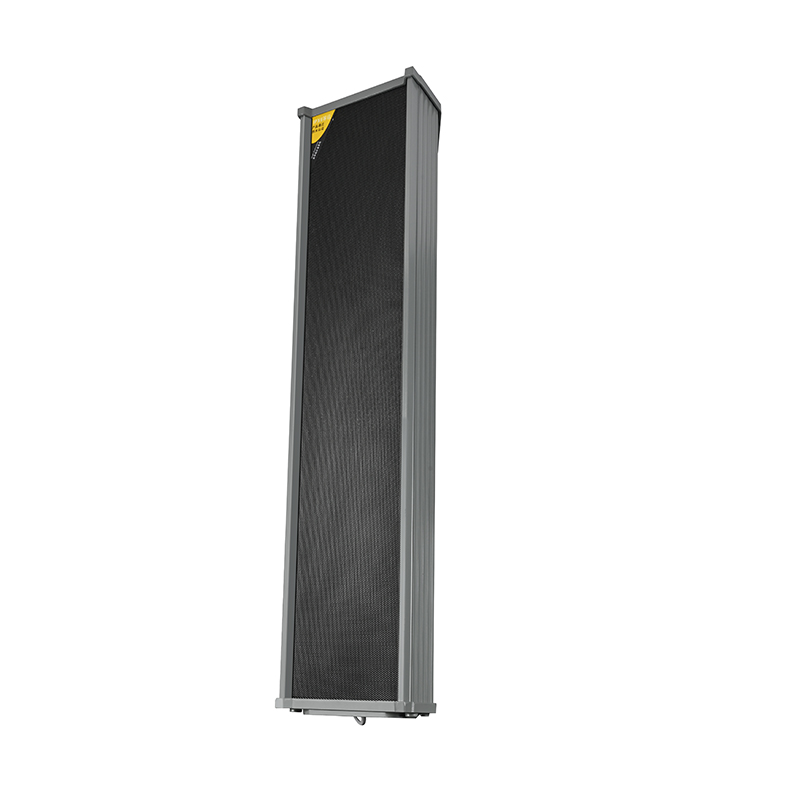

| • Waterproof Column Speaker | 1 PC |
| • Mounting Bracket Set | 1 PC |
| • User Manual | 1 PC |
User manualSG-4070YZ/SG-4100YZ/SG-4140YZ IP Network Waterproof Column Speaker User Manual2026-05-26 15:28:01Download
