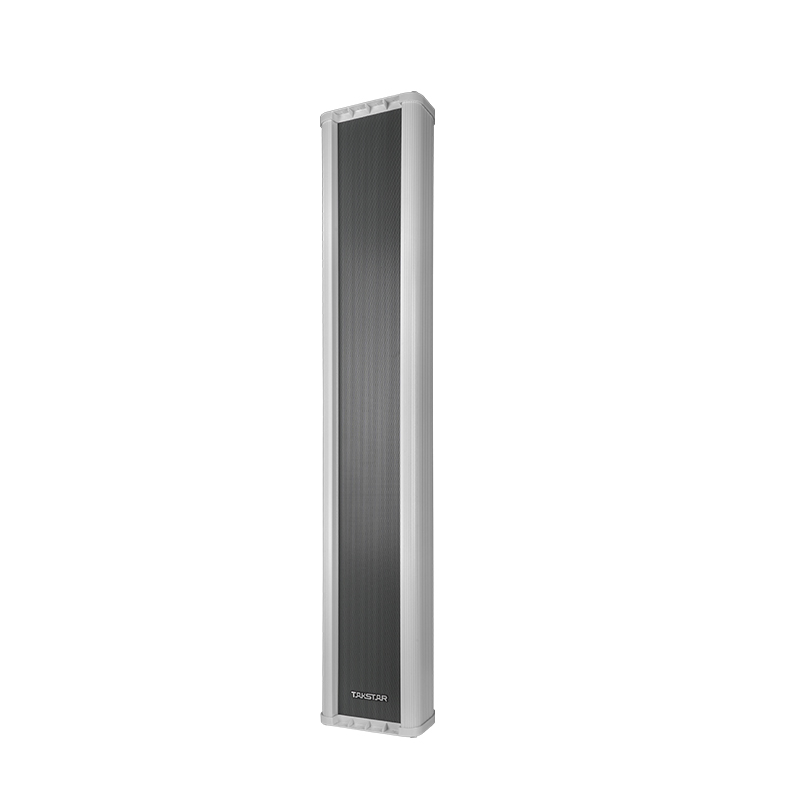

SG-6240YZ IP Network Waterproof Column Speaker
- IP Broadcasting
• Utilizes embedded PC tech, DSP audio processing, and industrial-grade ARM chip for rapid startup and enhanced stability.
• Built-in network audio decoding module.
• Independent IP address, receives custom scheduled broadcasts directly from the server.
• Delivers high-fidelity CD-quality digital audio with an adaptive bitrate of 32-320kbps, ensuring noise-free playback.
• Smart power management, auto sleep mode during inactivity, maintaining low standby power (≤0.2W) and waking for playback tasks.
• Remote volume control, auto adjust volume (BGM, emergency, fire alarm) to pre-set system levels upon automatic startup and playback tasks.
• Receives diverse broadcast programs over the network, including intercom and emergency alerts.
• Single-cable solution, leverages existing network infrastructure, compatible with TCP/IP for seamless integration across broadcasting, computing, and monitoring systems.
• IP reset switch to restore factory settings.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.
• Rated Power (AES): 240W • Sensitivity: 92dB • Maximum Sound Pressure Level: 116dB • Signal-to-Noise Ratio: ≥ 90dB; Mic: ≥ 88dB • Frequency Response: 70Hz - 15KHz • Driver: 6" × 5 + 1 internal magnet horn tweeter • Dimensions: 206*140*1185 mm • Network Interface: RJ45, 10M/100M • Network Protocols: TCP/IP, UDP • Audio Format: MP3 • Supported Bit Rate: 32K - 320Kbps • Bandwidth: 20Hz - 20KHz • Power Supply: 24V5A • Standby Power: 0.2W Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Waterproof Column Speaker | 1 PC |
| • Mounting Bracket Set | 1 PC |
| • User Manual | 1 PC |
User manualSG-6240YZ IP Network Waterproof Column Speaker User Manual2025-10-21 08:45:05Download
User manualSG-6240YZ
