SG-10K IP Wireless Controller
- IP Broadcasting

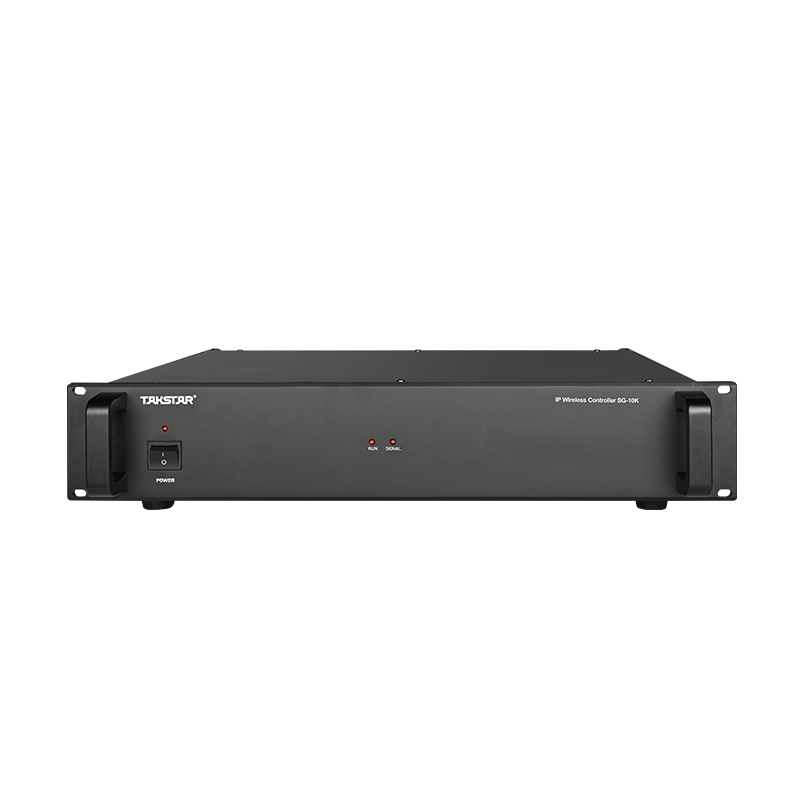

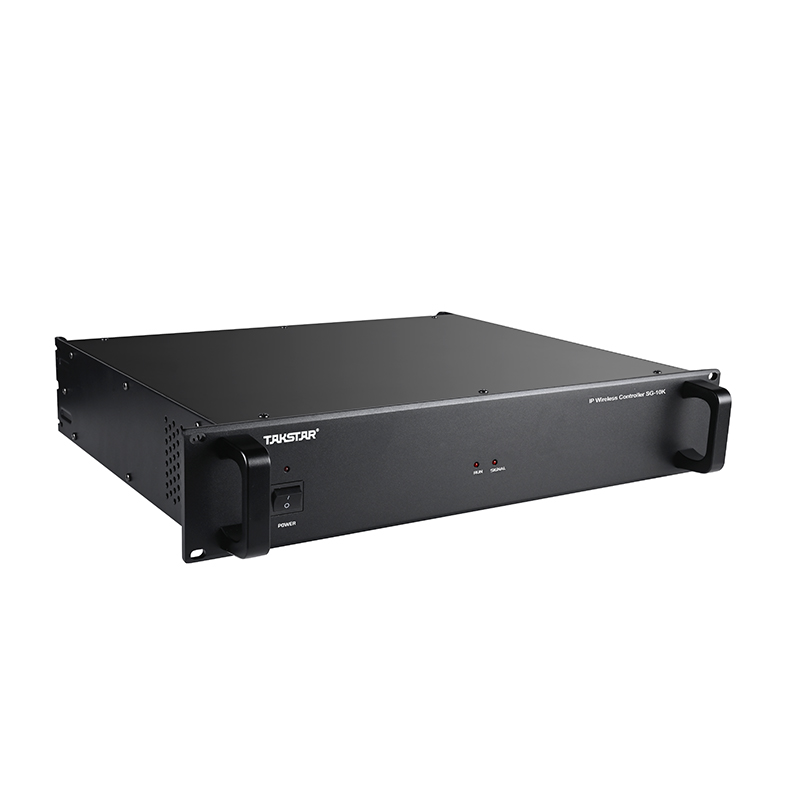

• Standard 2U rack-mount design with a polished aluminum front panel.
• Embedded PC technology and high-speed industrial processor for quick startup and enhanced stability.

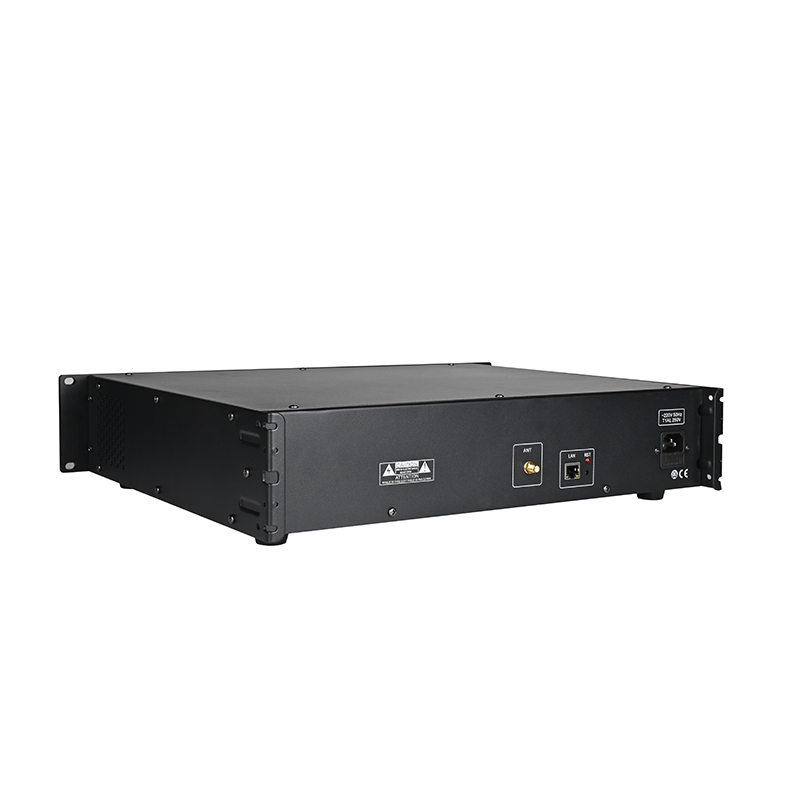

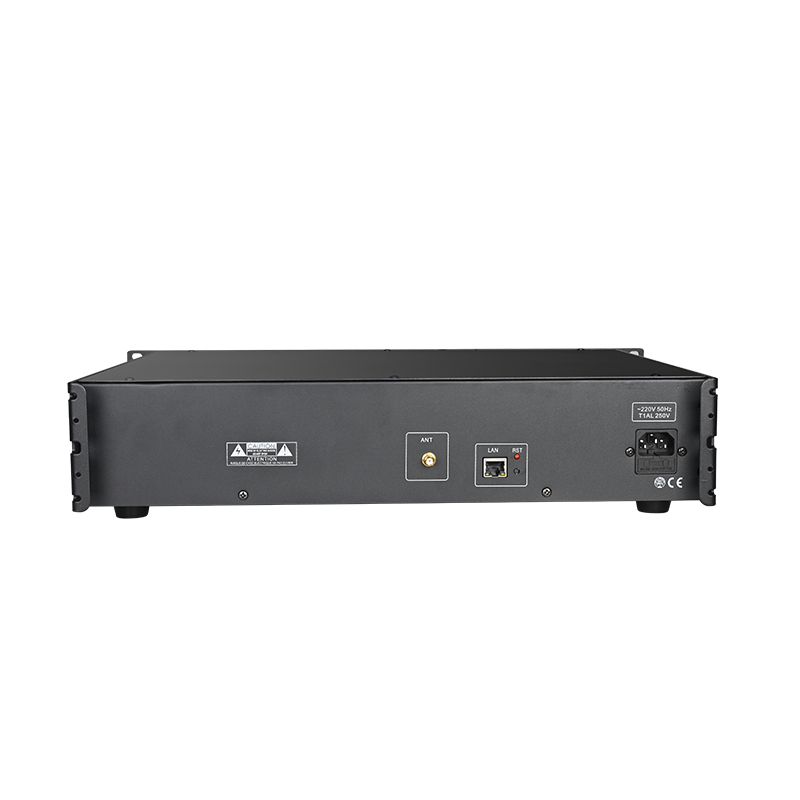

• One RJ45 network output allows connection to any nearby network point, independent of control room location.
• Robust cross-gateway and cross-router capabilities for easy connection via any Ethernet port.
• Supports 16 levels of user and operational task priorities.
• Remote wireless control effective up to 300 meters in open areas.
• 12 keys for music selection (1-10), play/pause (11) and exit (12).
• Remote firmware updates via network for convenient maintenance.
• Scalable system, stack multiple units without limitations.
• IP address reset switch for easy restoration of factory settings.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.
• Communication Protocol: TCP/IP • Communication Interface: 1 x RJ45 • Operating Frequency: 315MHz (433MHz optional) • Operating Temperature: +0 to +40°C • Humidity Range: 45% to 85% RH • Atmospheric Pressure: 86KPa to 106KPa • Standby Power Consumption: ≤0.1W • Operating Power Consumption: ≤5W • Input Power: AC 220V ±10%, 50-60Hz • Dimensions: 485 (W) x 330 (D) x 88 (H) mm • Weight: Approx. 5.3 kg Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Wireless Controller | 1 PC |
| • Remote Control | 1 PC |
| • Antenna with 5m Cable | 1 PC |
| • Power Cord | 1 PC |
| • User Manual | 1 PC |
User manualSG-10K IP Wireless Controller User Manual2025-09-16 09:22:15Download
User manualSG-10K
