SG-10J IP Fire Alarm Matrix

IP Broadcasting

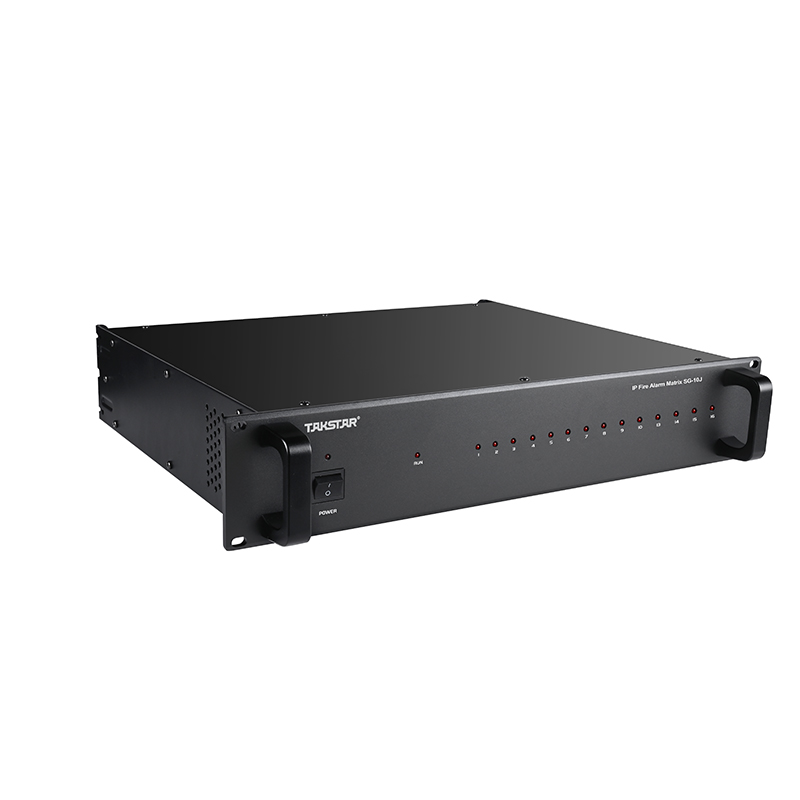

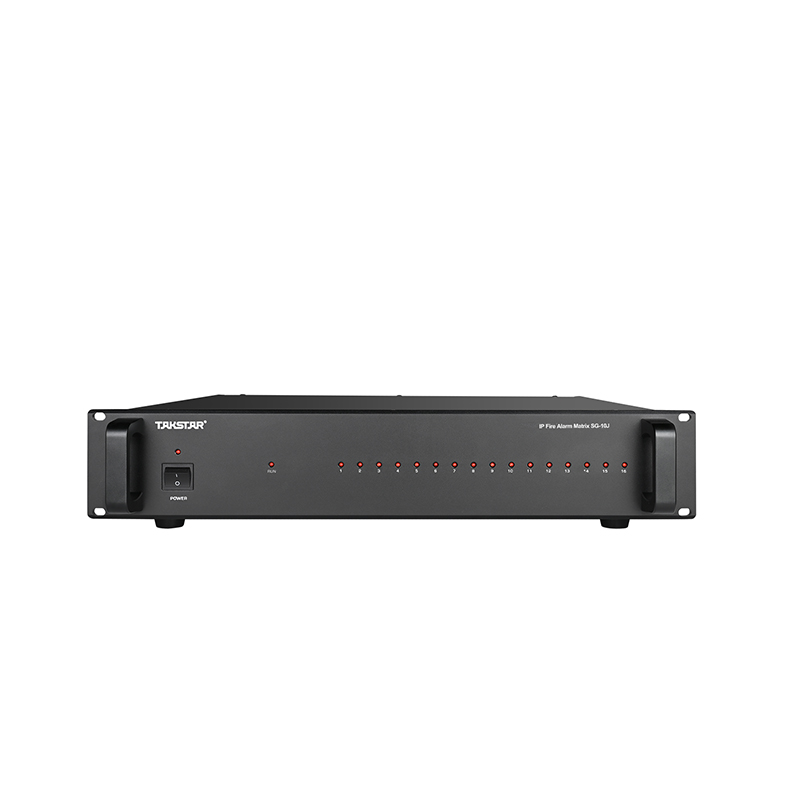

• Standard 2U rack-mountable design; Black aluminum alloy panel with oxidation brushed finish, dark gray bake-painted chassis.

• Intelligent fire alarm interface with contact closure and DC voltage input support.

• Static IP address for stable network operation.

• Alarm signal priority with automatic override.

• 16 alarm signal inputs with corresponding indicator lights.

• 16 broadcast zone automatic activation, expandable to 1024 zones, with up to 80 adjacent zones automatically triggered.

• Programmable alarm rules (N, N±1, N±2, N±3, N±4).

• Customizable alarm ringtones based on location and alarm source.

• Intelligent power management: CPU-controlled amplifier sleep mode (≤0.2W standby) with automatic activation upon playback.

• Remote network firmware upgrade capability.

• Multi-unit stacking for unlimited system expansion.

• IP address reset switch for restoring factory settings.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial







• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.

• Input Power: AC~220V / 50Hz ± 5%
• Operating Modes: TEST, ALERT, EVAC, CLEAR
• Display: LED Status Indicators
• Alarm Modes: Selectable zone alarm modes; ALERT, EVAC, TEST

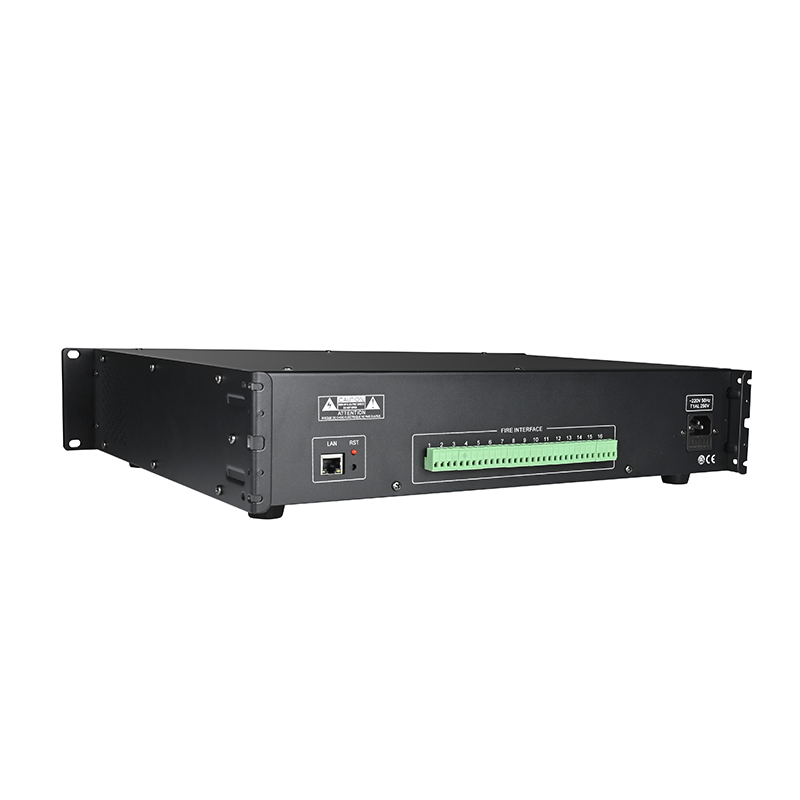

• Alarm Input: 16 Dry Contact Closure Inputs
• Communication Protocol: TCP/IP
• Fuse: AC FUSE
• Power Consumption: 5W
• Dimensions: 485(W) x 330(D) x 88(H) mm
• Timekeeping: 24-hour (HH-MM-SS) / Weekly / Calendar
• Communication Interface: 1 x RJ45 (for connection to digital broadcast control center)
• Weight: Approximately 5.8 kg

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
