• With USB, SD card interface, FM radio function, wireless capability, and 1CH line input and output.
• Built-in volume control and one-touch mute function.
• 7-inch TFT true color LCD touchscreen with a resolution of 800 x 480, display size 154 x 86 mm, automatic backlight off, and 8 quick access digit/zone buttons for one-touch paging.
• Pro desktop mic design with a black anodized aluminum brushed panel and black plated buttons.
• Utilizes a high-sensitivity quality mic capsule for balanced input and clear, noise-free audio.
• User-friendly interface for direct operation on the mic without software config; easily call any terminal or group.
• Incorporates embedded PC technology and a high-speed industrial chip for startup in ≤1 second.

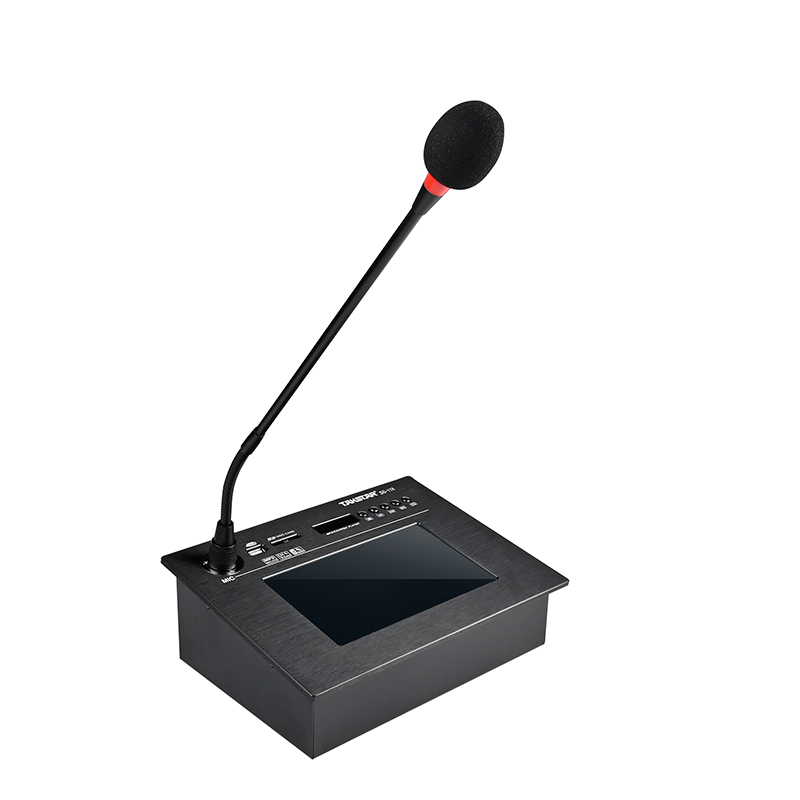

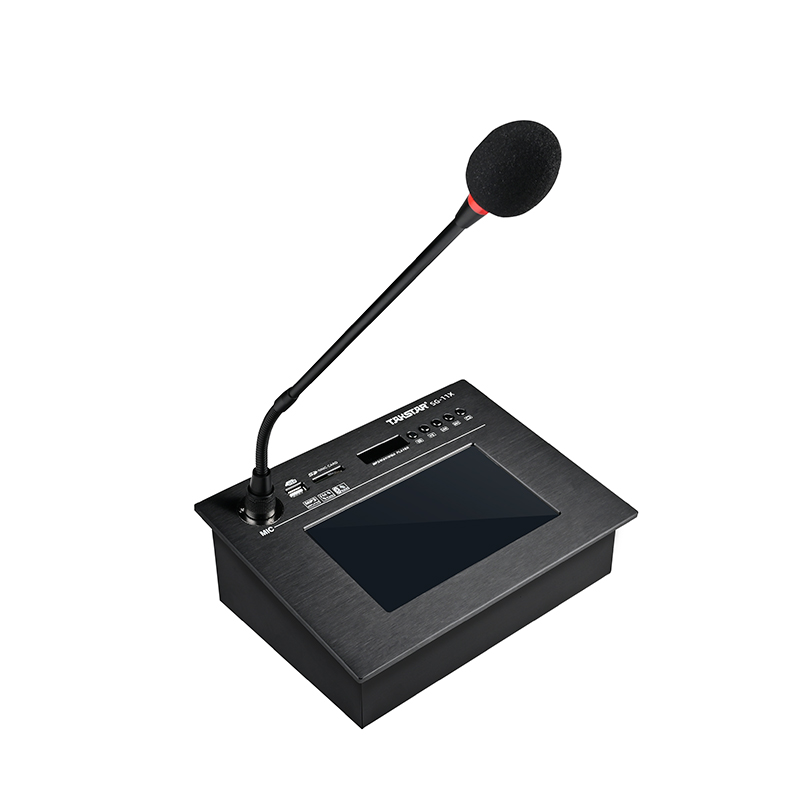

• Includes a gooseneck mic for broadcasting in designated areas; a red circular indicator light illuminates during calls.
• Strong cross-gateway and cross-router capabilities; connects easily via any Ethernet port.
• Supports point-to-point and point-to-multipoint paging broadcasts under management system authorization.
• Remote upgrade functionality for product software updates without on-site intervention, ensuring convenience.
• Adjustable volume suitable for various applications.
• Real-time adjustment of terminal volume and MIC gain; stores local terminal lists and supports independent group editing and quick group selection.
• Features a 4-wire resistive touchscreen to prevent accidental touches.
• Supports touchscreen calibration with optimized algorithms for durability, withstanding over 1 million touches.
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.
• Network Interface: Standard RJ45 input • Network Protocols: TCP/IP, UDP, IGMP (multicast) • Power Supply: DC 12V, 1A ±0.1V • Digital Audio Format: OGG encoding • Bitrate: 80-128K • Transmission Rate: Adaptive 10/100 Mbps • Audio Mode: 16-32 bit stereo CD quality • Standby Power: 0.2W • Operating Power: ≤10W • Auxiliary Input/Output: RCA connectors • Audio Output: Bandwidth 200 Hz - 3.5 kHz, level MAX 1.5V p-p • Output Frequency: 20 Hz - 20 kHz • Total Harmonic Distortion: ≤0.1% • Signal-to-Noise Ratio: >82 dB • Built-in Speaker Output Impedance: 4 Ω, 3W • Operating Temperature: -15 °C to 65 °C • Operating Humidity: 10% - 90% • Power Consumption: ≤10W • Product Weight: Approximately 1.6 kg • Product Dimensions: 250 mm x 180 mm x 85 mm Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Touchscreen Network Mic | 1 PC |
| • Power Cord | 1 PC |
| • User Manual | 1 PC |
User manualSG-11X 7-Inch Touchscreen Network Paging Mic User Manual2025-09-12 11:00:42Download
