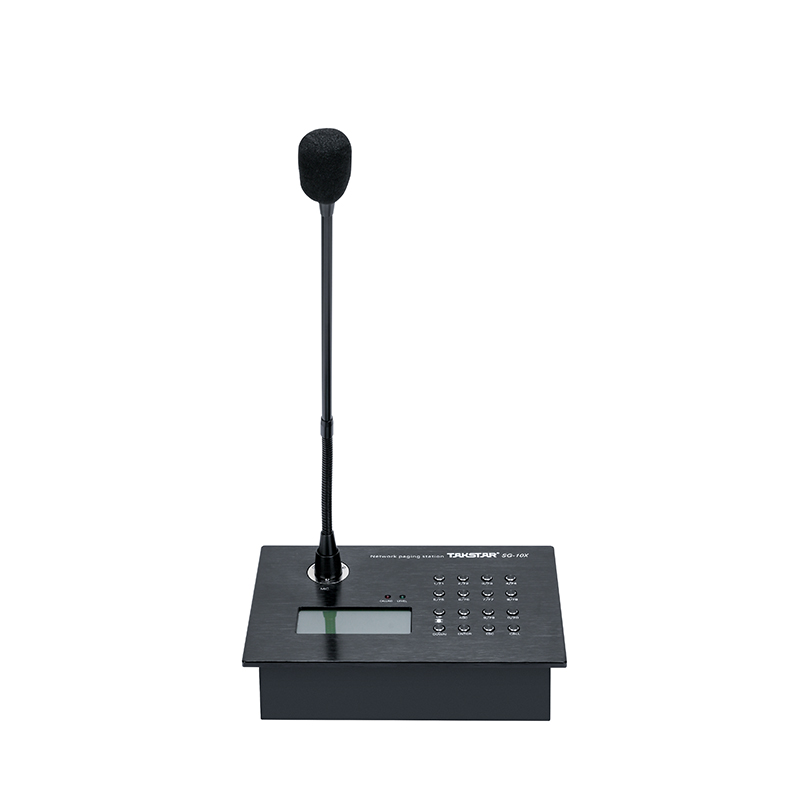

SG-10X IP Paging Microphone
- IP Broadcasting
• Professional Paging Mic Design: With a Chinese LCD screen, 10 task zone shortcuts, and 6 function buttons.
• Fast Startup Time ≤1 Second: High-speed industrial chip inside.

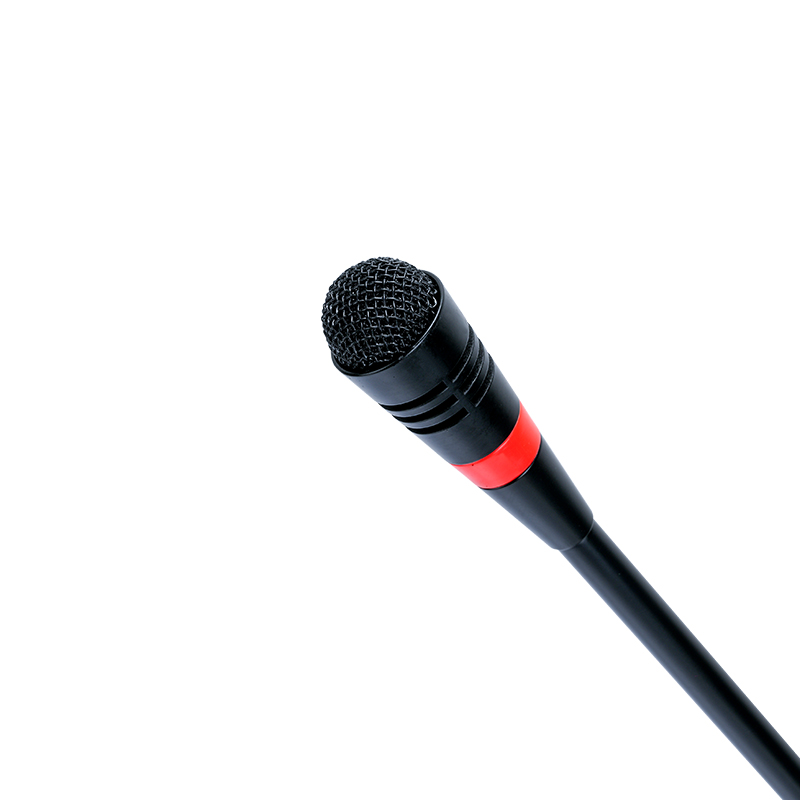

• Integrated Mic: For authorized zone broadcasts, with an automatic red indicator during use.
• Built-in Speaker: Enables two-way communication for calling and receiving calls.
• Ethernet Connectivity: Connects via Ethernet for automatic IP acquisition and strong cross-network capabilities.
• Two-way Paging: Supports two-way paging between terminals and built-in monitoring speaker (optional function)
• Flexible Paging Options: Allows point-to-point, point-to-multipoint, and multi point-to-multipoint paging under management system authorization.
• User Controls: In calling mode, use CALL for mute, FAST for AGC, UP/DOWN for volume control (-40dB to 0dB), and ENTER for mic gain adjustment (+0.5dB to +4dB).
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.
• Network Interface: Standard RJ45 input • Network Protocols: TCP/IP, UDP, IGMP (multicast) • Power Supply: DC 12V 1A, ±0.1V • Digital Audio Formats: ADPCM; MP3/MP2 • Bitrate: 8-128K • Transmission Rate: 10/100Mbps auto-sensing • Audio Mode: 16-32 bit stereo CD quality • Standby Power: 0.2W • Operating Power Consumption: ≤10W • Auxiliary Input/Output Signals: - 1 MIC input, bandwidth 200Hz-15kHz, sensitivity 3mV-10mV - 1 LINE input, bandwidth 200Hz-20kHz, max level 1.5V p-p • Audio Output: Bandwidth 200Hz-3.5kHz, max level 1.5V p-p • Output Frequency Response: 20Hz-20kHz • Harmonic Distortion: ≤0.1% • Signal-to-Noise Ratio: >82dB • Built-in Speaker Output Impedance: 4Ω, 3W • Operating Environment: -15℃ to 65℃; 10% to 90% Humidity • Weight: Approximately 1.3 kg • Dimensions: 230mm x 150mm x 70mm Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • IP Paging Microphone | 1 PC |
| • Power Cord | 1 PC |
| • User Manual | 1 PC |
User manualSG-10X IP Paging Microphone User Manual2025-09-12 11:01:20Download
User manualSG-10X
