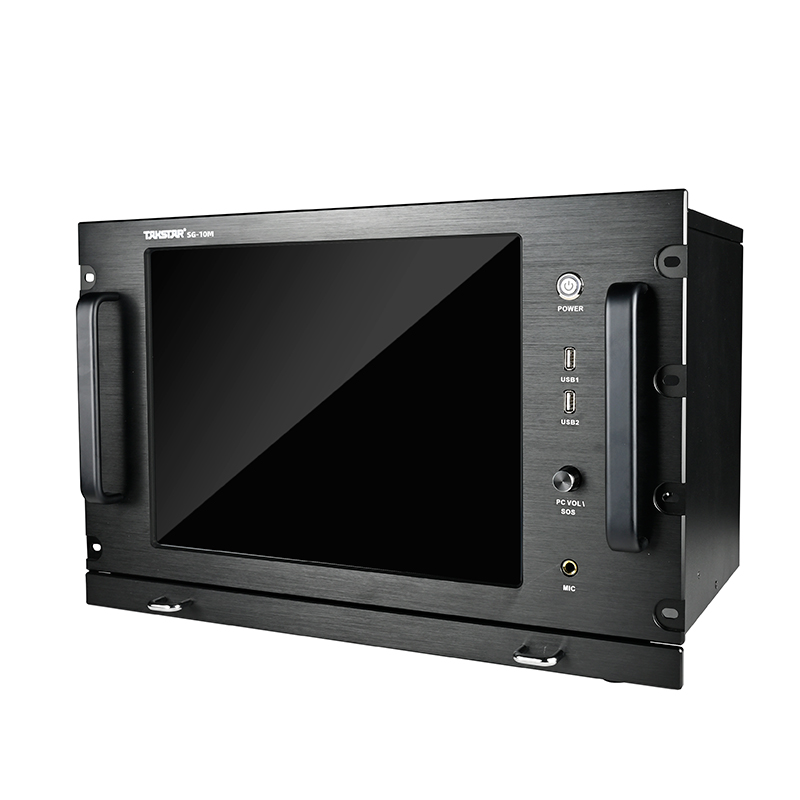

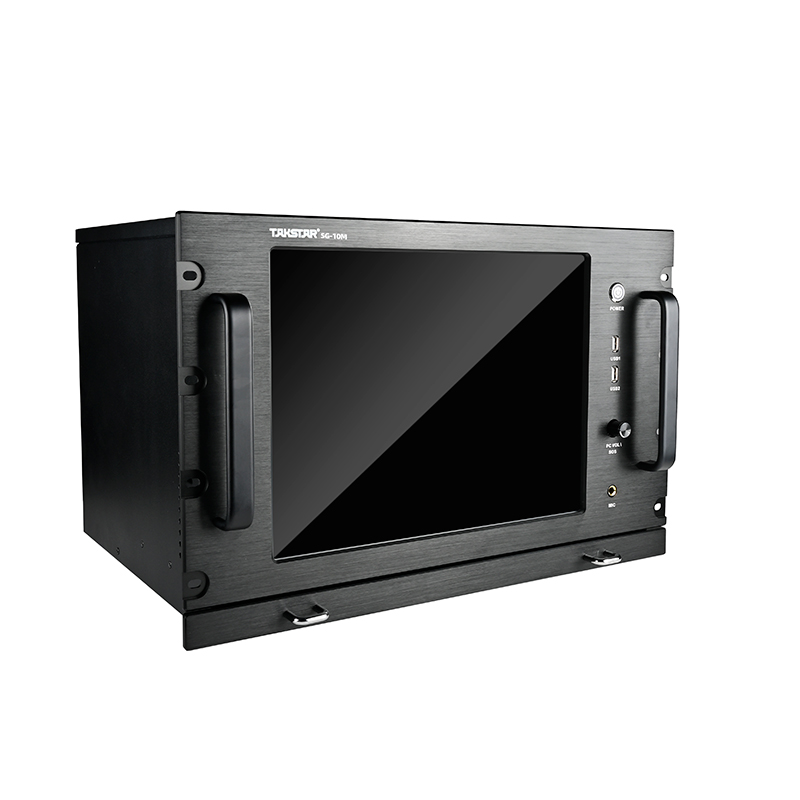

SG-10M IP Audio Broadcasting Server
- IP Broadcasting
• Wide Compatibility: Supports various operating systems including Microsoft Windows Server 2008 (all editions), Windows 7, Windows 10, Windows Small Business Server 2008, Red Hat Linux, and SUSE Linux. Ensures secure access with power-on and privilege passwords.
• User-Friendly Design: The Server is housed in a rugged industrial chassis and features a touch screen for intuitive control. It comes with robust IP broadcast control software, extensive media library, and allows users to upload or create their own recorded programs.
• Audio Management: Manages audio streaming services, scheduled tasks, terminal management, and user permissions. Organizes program library resources for efficient playback, providing both scheduled and on-demand media services to all network adapters, and fulfilling playback requests from audio workstations.
• Digital Transmission: Utilizes LAN or internet with independent IPs for digital transmission, supporting dedicated 100Mbps networks. Offers unlimited transmission range with the capability to manage dozens to hundreds of program sources, integrating multiple networks seamlessly.
• Comprehensive Broadcasting Features: Supports two-way intercom, broadcast monitoring, on-demand playback, real-time audio capture, terminal selection, one-click intercom, scheduled program playback, online speeches, internet radio broadcasting, automatic triggering of audio terminal devices, and fire alarm broadcasting.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.

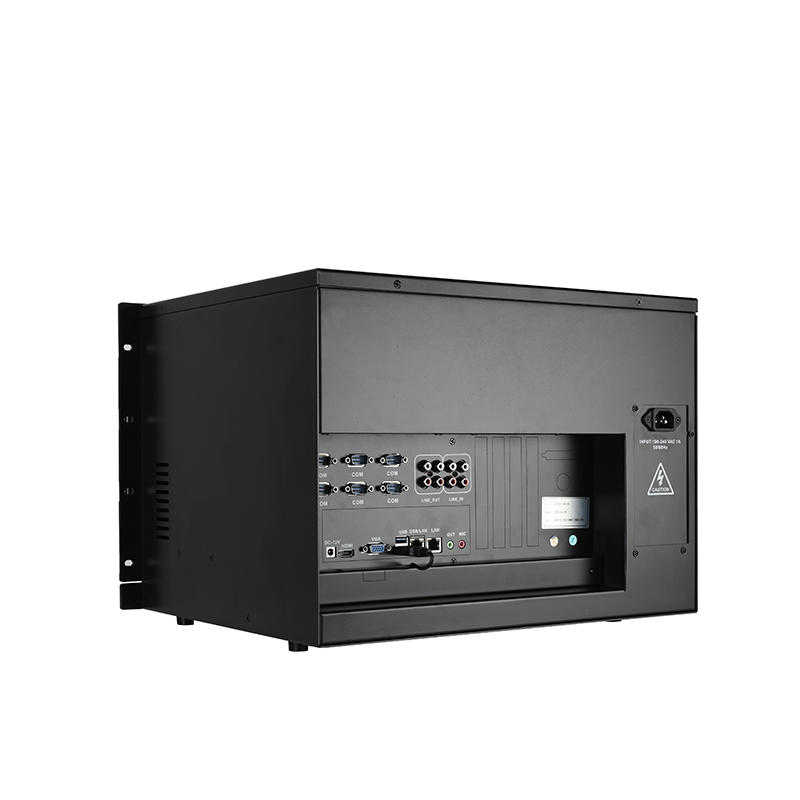

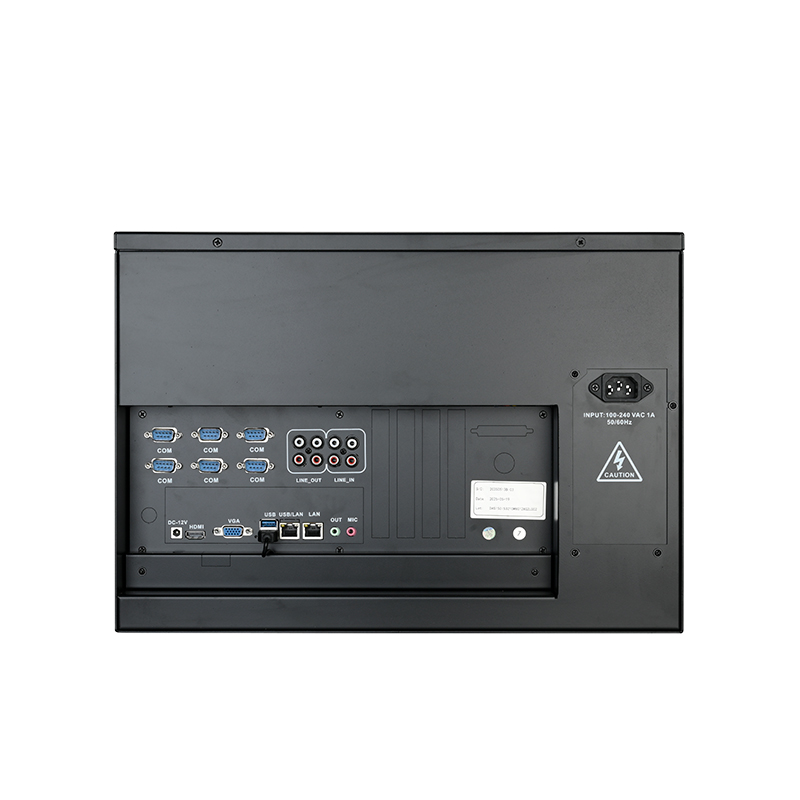

• Screen: 15-inch • Touch Screen: Resistive touch • Resolution: 1024 x 768 • Dimensions: 484 x 310 x 348 mm • Display Area: 305 x 230 mm • Motherboard: Industrial-grade, supports 24/7 continuous operation • Processor: Intel Core i5 dual-core • Graphics: Integrated Intel® HD Graphics, supports dual display mode • RAM: 8GB DDR3 (16GB option available) • Storage: Standard 128GB SSD (mSATA interface) (Options available: 256GB, 512GB, or 1TB) • Power Supply: Mingwei industrial power supply • Expansion: 1 x mini PCIe slot, optional Wi-Fi/4G/Wireless • Serial Ports: 6 x COM ports • Front I/O Interfaces: 1 x Power switch; 1 x Volume control; 1 x MIC input; 2 x USB 2.0 ports • Rear I/O Interfaces: 1 x 3.5mm MIC-in; 1 x 3.5mm Line-out; 2 x Ethernet ports; 2 x USB 3.0 ports; 1 x VGA port; 1 x HDMI port; 2 x RCA output connectors; 2 x RCA input connectors • Operating Temperature: -10°C to 50°C • Storage Environment: -20°C to 60°C • Humidity: 5% to 95% non-condensing • Installation: Rack mountable or desktop placement • Construction: 7U aluminum alloy black brushed panel, integrated touch screen and digital matrix keyboard in a single chassis • Keyboard/Mouse: Pull-out keyboard and touchpad mouse located at the bottom of the chassis • Chassis Color: Black Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Server | 1 PC |
| • Power Cord | 1 PC |
| • User Manual | 1 PC |
User manualSG-10M IP Audio Broadcasting Server User Manual2026-05-18 09:46:44Download
User manualSG-10M
