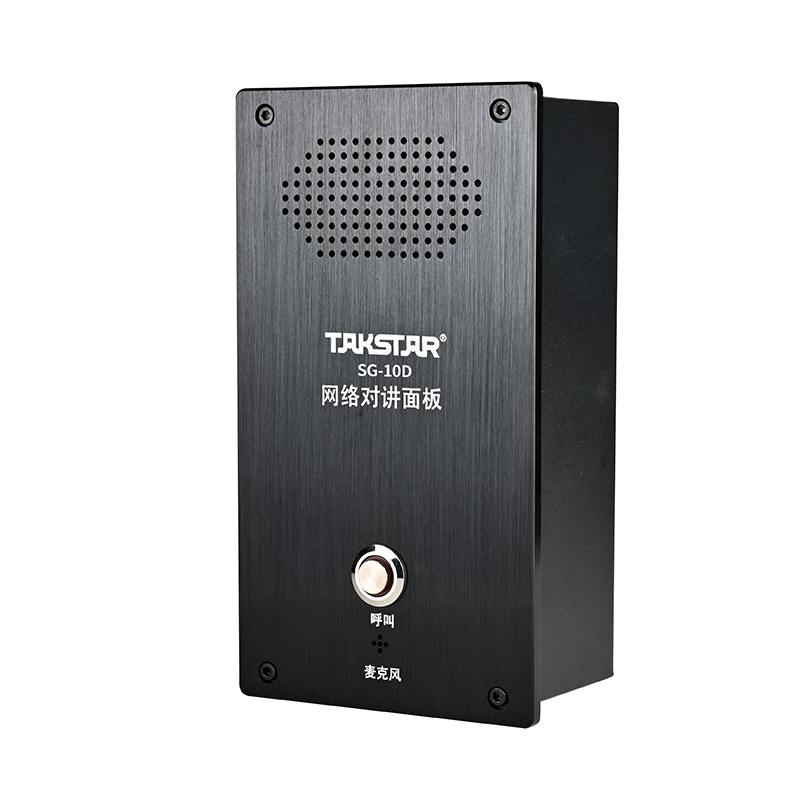

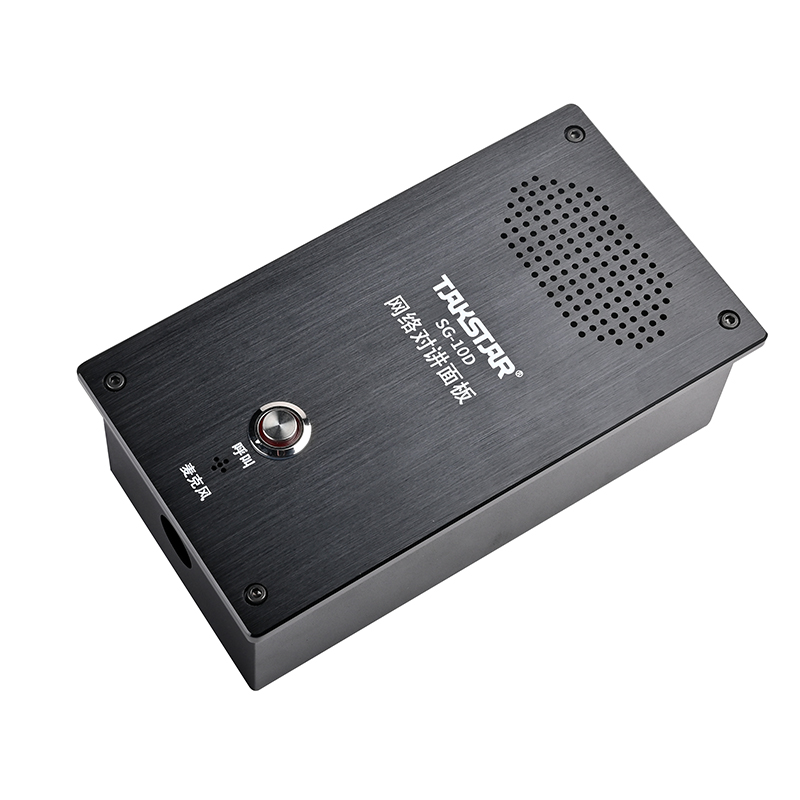

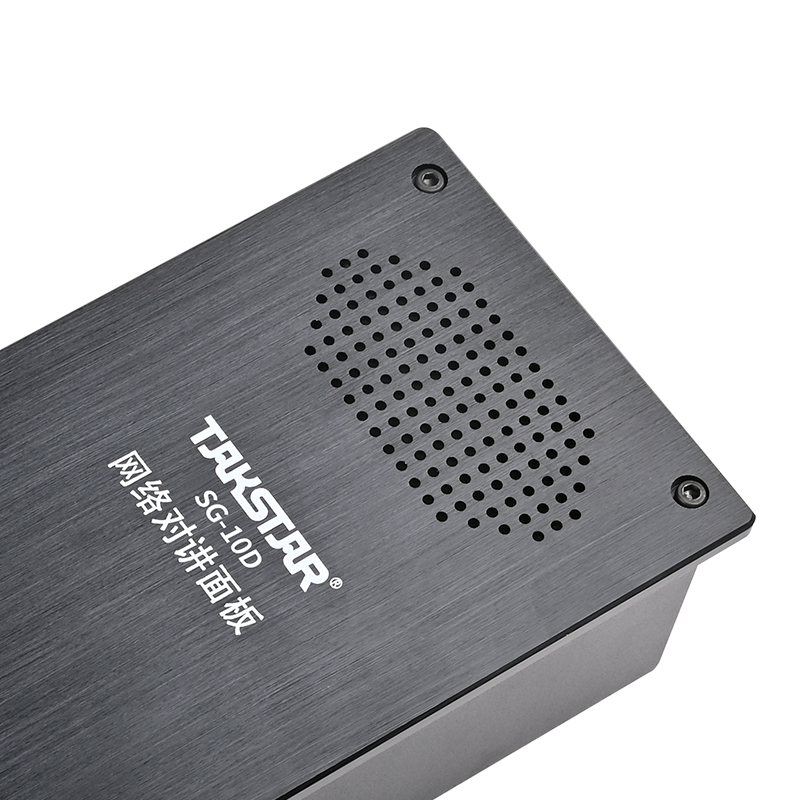

SG-10D IP Intercom Panel

IP Broadcasting

• Sleek, minimalist design with a durable anodized aluminum brushed panel; supports flush or surface mounting (with back box).

• Integrates embedded computer and DSP audio processing with a high-speed industrial chip for startup in under 1 second.

• One-button call initiation for target terminals, enabling simple full-duplex communication.

• Built-in 3W high-fidelity speaker for clear, loud audio.

• High-sensitivity mic for broad sound capture and accurate sound reproduction.

• Supports two-way intercom and broadcast reception.

• Includes local emergency button input.

• DC power supply interface with an external adapter, adjustable from 11.5V to 24.5V.

• Built-in 2 x 10W amplifier for connecting two external 8Ω 10W speakers.

• Sturdy aluminum back box for flush or surface installation.

• Connects easily via Ethernet, supporting inter-network and cross-router use.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial









• Shopping malls, campuses, hotels, parks, prisons, community announcements, and large commercial complexes.

Built-in Speaker Audio Output
• Network Interface: RJ45 input
• Supported Protocols: TCP/IP, UDP, IGMP (multicast)
• Audio Formats: MP3, MP2
• Sampling Rate: 8 kHz ‒ 48 kHz
• Transmission Rate: 10/100 Mbps
• Audio Mode: 16-bit stereo CD quality
• Output Frequency: 20 Hz ‒ 16 kHz
• Total Harmonic Distortion: ≤0.3%
• Sensitivity: 89 dB
• Signal-to-Noise Ratio: >78 dB
• Auxiliary Line Input Level: 350 mV (industrial standard terminal)
• Built-in Speaker Output Impedance & Power: 8 Ω / 3 W
• External Speaker Output Impedance & Power: 4 Ω, 10 W (industrial standard terminal)
• Line Out Output Level: 1 V (industrial standard terminal)
• Operating Temperature: -35 °C to +55 °C
• Operating Humidity: 20% ‒ 80% relative humidity, non-condensing
• Power Consumption: ≤3 W
• Input Power: DC 12 V
• Protection Rating: IP55

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
